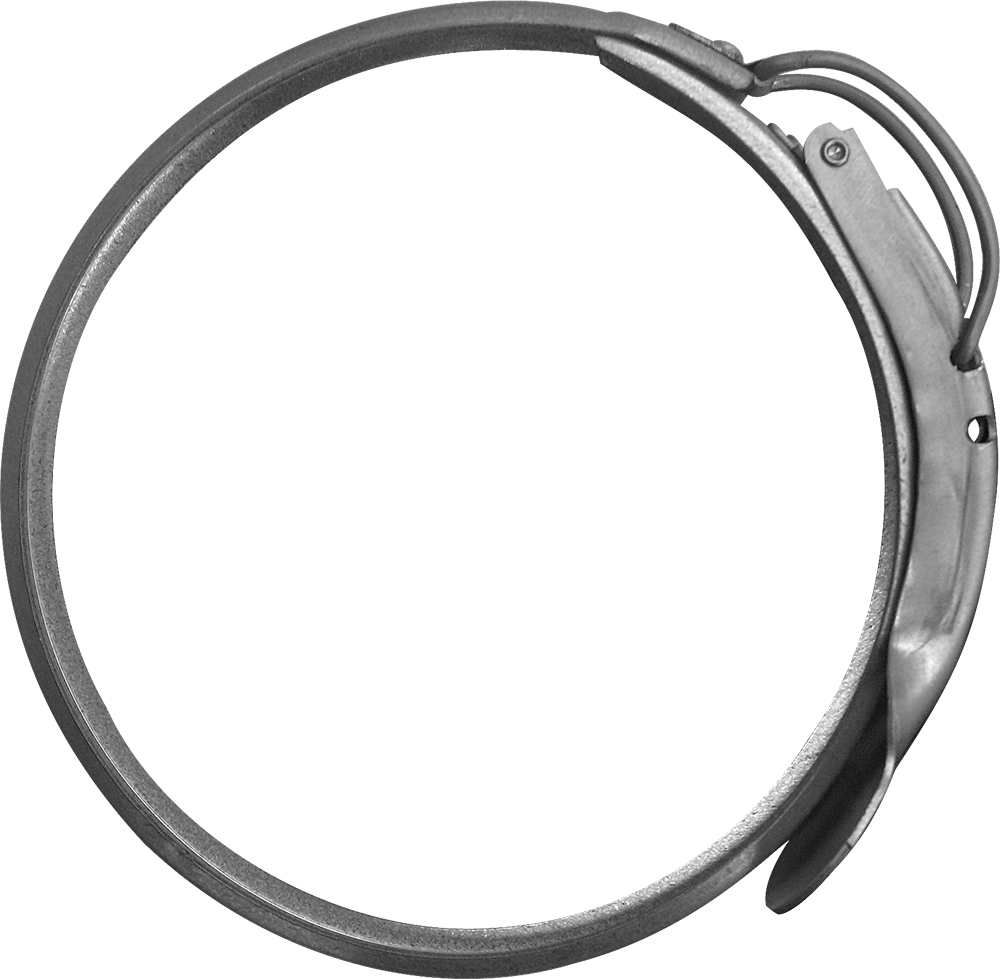

Quick-Fit Clamp with Pin and Nitrile Seal

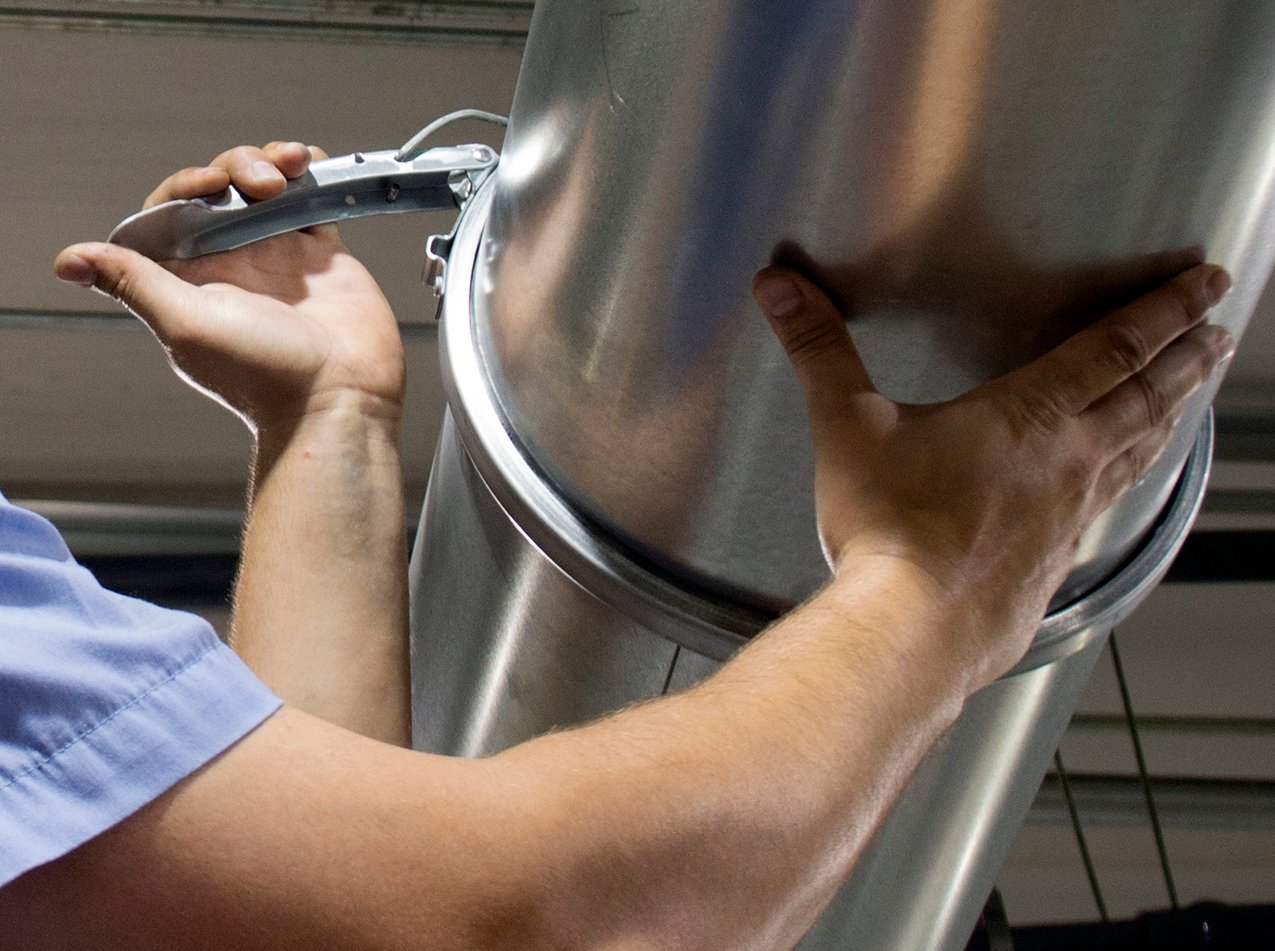

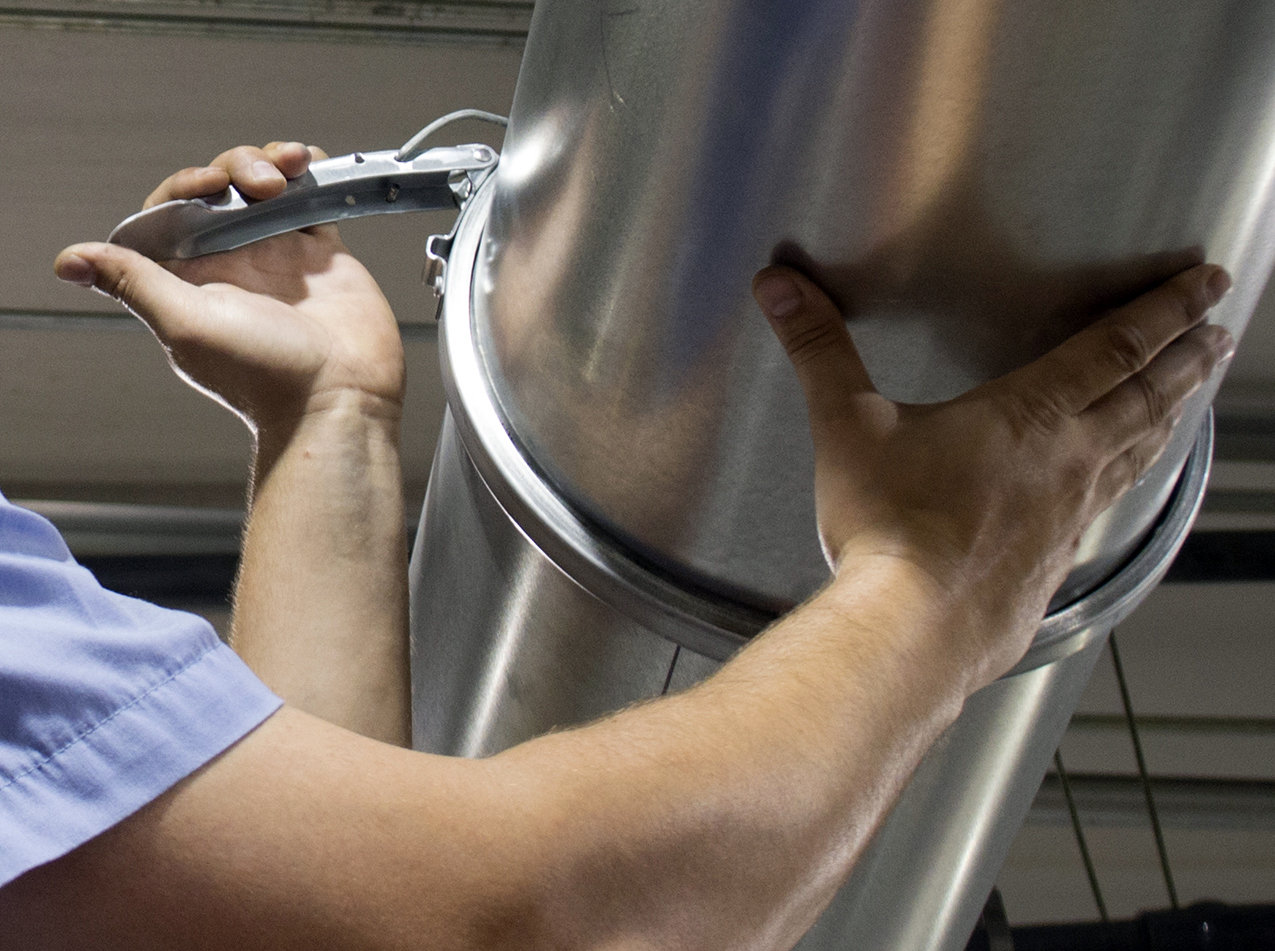

The key component in Nordfab's Quick-Fit® clamp-together ducting system is the easy-to-use Quick-Fit Clamp. The Clamp allows quick connections for Nordfab’s Quick-Fit (QF®) modular ductwork. Quick-Fit Ducting is ideal for dust collection and process ventilation systems, saving time and money on installation, future relocations, and cleanouts. Quick-Fit is also adaptable to existing ductwork.

Silicone and ePTFE are optional seal materials for applications where temperature is not suitable for nitrile. View our guide to selecting the best seal material for your application. Click here for item numbers for ordering replacement seal material.

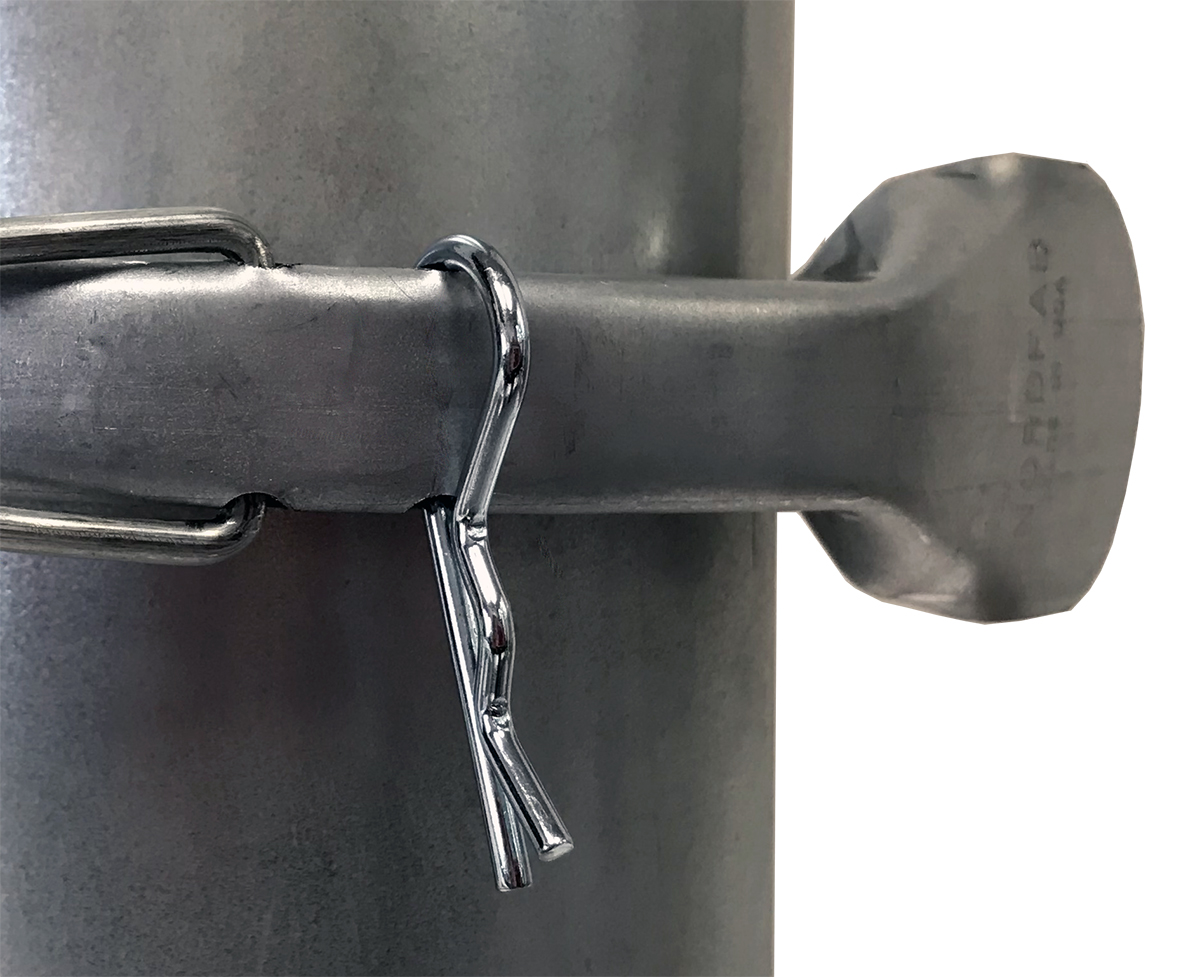

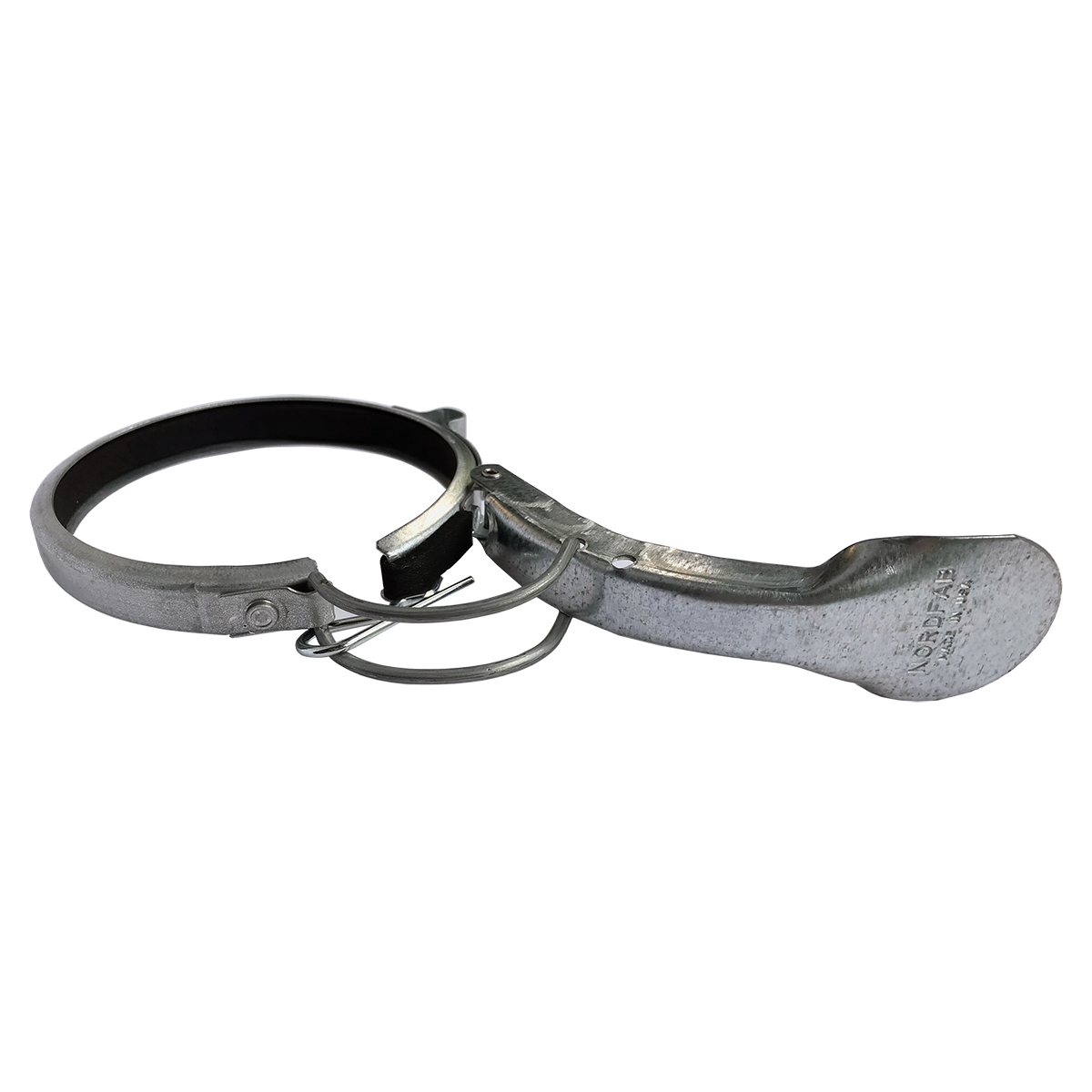

Clamps come standard from Nordfab with Nitrile seals and bridge pin for locking clamp into closed position. Galvanized clamps supplied with galvanized bridge pin. 304SS clamps supplied with SS bridge pin. 3″ to 6″ Clamps: Small bridge pin with 3/8″ wide Nitrile seal from factory. 7″ to 11″ Clamps: Large bridge pin with 1/2″ wide Nitrile seal from factory. 12″ to 24″ Clamps: Large bridge pin with 5/8″ wide Nitrile seal from factory. Click here for item numbers for ordering additional pins.

Quick-Fit Clamps are a Nordfab Now® product so these are in stock and can typically be shipped the day after order placement. Let Nordfab or your authorized dealer know if your order is urgent.



Request a Quote



Download our Quick-Fit Clamp Product Data sheet



ø A in Material Seal Weight (lbs) Legacy Item No. Item No.
3 Galv 0.26 3260-0300-100900‍ 8010005522‍
4 Galv 0.28 3260-0400-100900‍ 8010005523‍
5 Galv 0.31 3260-0500-100900‍ 8010005524‍
6 Galv 0.33 3260-0600-100900‍ 8010005525‍
7 Galv 0.54 3260-0700-100900‍ 8010005526‍
8 Galv 0.59 3260-0800-100900‍ 8010005527‍
9 Galv 0.63 3260-0900-100900‍ 8010005528‍
10 Galv 0.68 3260-1000-100900‍ 8010005529‍
11 Galv 0.7 3260-1100-100900‍ 8010005530‍
12 Galv 1.32 3260-1200-100900‍ 8010005531‍
13 Galv 1.38 3260-1300-100900‍ 8010005532‍
14 Galv 1.48 3260-1400-100900‍ 8010005533‍
15 Galv 1.53 3260-1500-100900‍ 8010005534‍
16 Galv 1.6 3260-1600-100900‍ 8010005535‍
17 Galv 1.67 3260-1700-100900‍ 8010005536‍
18 Galv 1.77 3260-1800-100900‍ 8010005537‍
19 Galv 1.85 3260-1900-100900‍ 8010005538‍
20 Galv 1.92 3260-2000-100900‍ 8010005539‍
21 Galv 1.98 3260-2100-100900‍ 8010005540‍
22 Galv 2.04 3260-2200-100900‍ 8010005541‍
23 Galv 2.1 3260-2300-100900‍ 8010005542‍
24 Galv 2.2 3260-2400-100900‍ 8010005543‍
3 304SS 0.26 3260-0300-200900‍ 8010005622‍
4 304SS 0.28 3260-0400-200900‍ 8010005623‍
5 304SS 0.31 3260-0500-200900‍ 8010005624‍
6 304SS 0.33 3260-0600-200900‍ 8010005625‍
7 304SS 0.54 3260-0700-200900‍ 8010005626‍
8 304SS 0.59 3260-0800-200900‍ 8010005627‍
9 304SS 0.63 3260-0900-200900‍ 8010005628‍
10 304SS 0.68 3260-1000-200900‍ 8010005629‍
11 304SS 0.7 3260-1100-200900‍ 8010005630‍
12 304SS 1.32 3260-1200-200900‍ 8010005631‍
13 304SS 1.38 3260-1300-200900‍ 8010005632‍
14 304SS 1.48 3260-1400-200900‍ 8010005633‍
15 304SS 1.53 3260-1500-200900‍ 8010005634‍
16 304SS 1.6 3260-1600-200900‍ 8010005635‍
17 304SS 1.67 3260-1700-200900‍ 8010005636‍
18 304SS 1.77 3260-1800-200900‍ 8010005637‍
19 304SS 1.85 3260-1900-200900‍ 8010005638‍
20 304SS 1.92 3260-2000-200900‍ 8010005639‍
21 304SS 1.98 3260-2100-200900‍ 8010005640‍
22 304SS 2.04 3260-2200-200900‍ 8010005641‍
23 304SS 2.1 3260-2300-200900‍ 8010005642‍
24 304SS 2.2 3260-2400-200900‍ 8010005643‍
