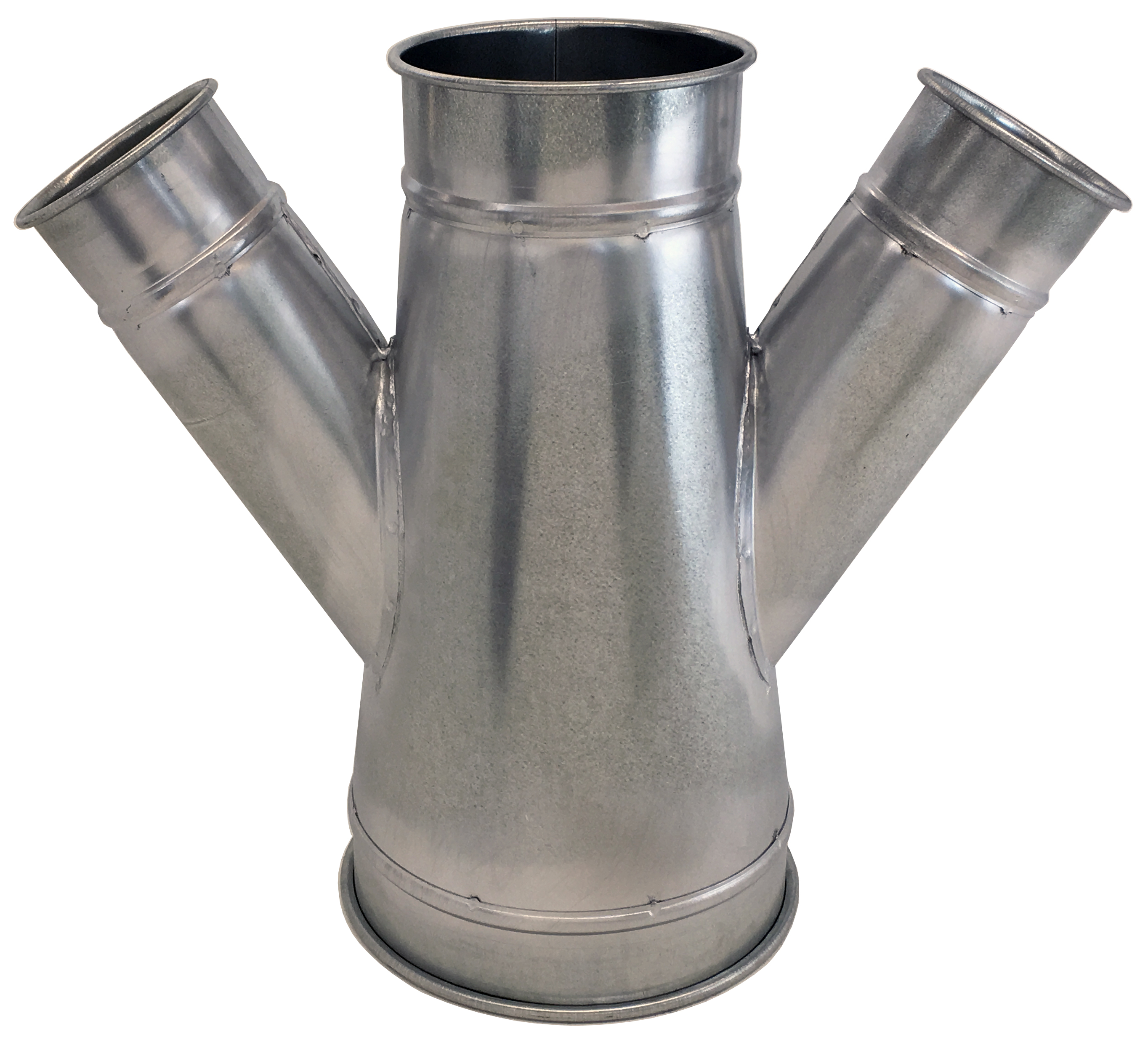

QF Double Branch 16 Gauge

QF Double Branches are standard with QF rolled ends, allowing quick connections with other QF ductwork.

16 gauge material construction adds extra durability.

  • When ordering, specify material; gauge (if nonstandard); dimensions A, B, C, and D; end styles if not all QF; and angle (standard 30° or optional 45°).
  • (A - C) ≥ (C-B) and (C) ≥ (D).   Use formula above to determine if a reducer is needed at C or D.
  • Length = C X 2 + 9"
  • Available with flanged ends in diameters up to 72", and other various end types
  • Available with 30° or 45° angle
  • Other available gauges include standard 22 and 20, 18, 14, 12 and 10

Contact Nordfab or your local Nordfab dealer for assistance with branch configurations not shown below, larger sizes, and material / gauge options.

Quick-Fit has been used in a wide variety of applications, wherever dust collection or fine particulate transfer is required. Quick-Fit saves time and money on installation, is easy to clean out, is adaptable to existing ductwork, and is easily re-used during shop floor reconfigurations. Learn more about why Quick-Fit may be the best solution for you.

Request a Quote



Download our Double Branch Product Data sheet

Learn more about the benefits and availability of heavy gauge ducting from Nordfab

If you need flanged connections or larger sizes than those shown below, please see our Flanged Double Branch product page
