The solid welds on Nordfab's welded (W) Quick-Fit duct (Ø80-500 mm) prevent leakage, saving energy costs. Diameters above 500 mm are manufactured with a lockformed seam.
Quick-Fit Sealed (QFS) Ducting
When used for machining and any other operations which create oil mists, Nordfab Quick-Fit ducting can be used with added epoxy caulked and double sealing at connections. Nordfab Quick-Fit Sealed (QFS) significantly reduce risks of leakage from ducting.
The world's fastest ducting
For most dust and fume collection requirements and applications, Nordfab Quick-Fit (QF) modular clip-together ducting is a crucial component of dust collection, fume extraction, and process ventilation systems. It has the capability to significantly reduce installation time by up to 50%, resulting in cost savings and reduced downtime.
Easy to install

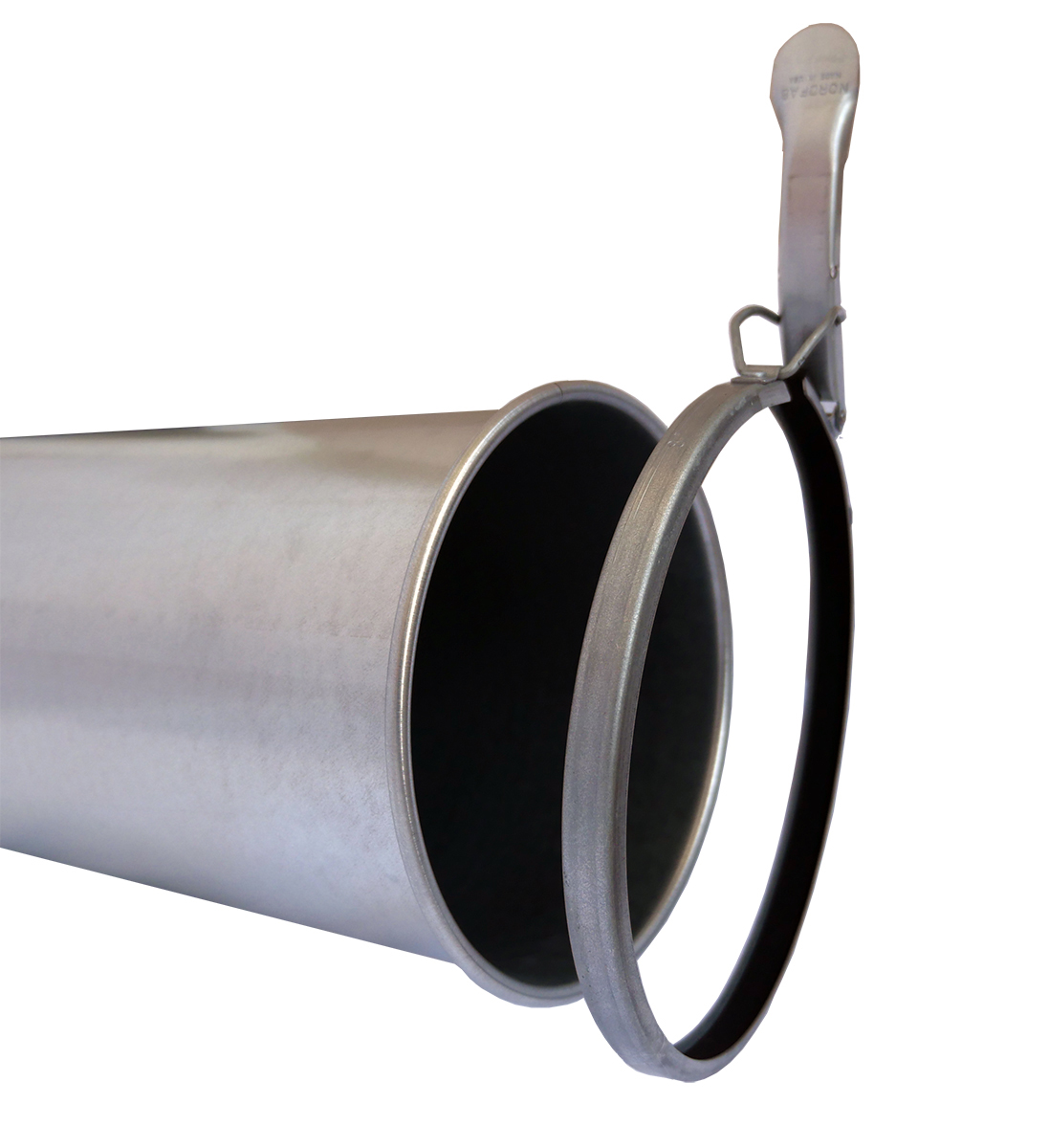

Quick-Fit is easy and quick to install, designed for effortless cleaning, and can be reused when adjusting facility layouts, providing one of the lowest life-cycle costs of any ducting product. The Quick-Fit rolled edges allow quick and easy connections with the Quick-Fit Clip when installing, extending, or taking apart runs of duct.
ø A (mm) | Material | T mm | L mm | Weight(kg) | Item No. |
---|---|---|---|---|---|
80 | Galv | 0,7mm | 1500 | 2,08 | 8240020380 |
100 | Galv | 0,7mm | 1500 | 2,6 | 8240020383 |
125 | Galv | 0,7mm | 1500 | 3,25 | 8240020386 |
140 | Galv | 0,7mm | 1500 | 3,64 | 8240020389 |
150 | Galv | 0,7mm | 1500 | 3,9 | 8240020392 |
160 | Galv | 0,7mm | 1500 | 4,16 | 8240020395 |
200 | Galv | 0,7mm | 1500 | 5,28 | 8240020401 |
224 | Galv | 0,7mm | 1500 | 5,93 | 8240020404 |
250 | Galv | 0,7mm | 1500 | 6,64 | 8240020407 |
300 | Galv | 0,7mm | 1500 | 7,96 | 8240020410 |
315 | Galv | 0,7mm | 1500 | 8,42 | 8240020413 |
350 | Galv | 0,7mm | 1500 | 9,38 | 8240020416 |
400 | Galv | 0,9mm | 1500 | 13,63 | 8240020419 |
450 | Galv | 0,9mm | 1470 | 15.3 | 8210000899 |
500 | Galv | 0,9mm | 1470 | 17.5 | 8210000900 |
560 | Galv | 0,9mm | 1470 | 18.7 | 8210000901 |
630 | Galv | 0,9mm | 1470 | 21.6 | 8210000902 |
710 | Galv | 0,9mm | 1470 | 24.4 | 8210000903 |
