Contact Nordfab Americas Nordfab Ducting Americas offers a CAD-based software tool to assist with designing Nordfab ductwork installations. NordCAD™ allows a user to place 2D CAD illustrations of Nordfab duct components into a layout.

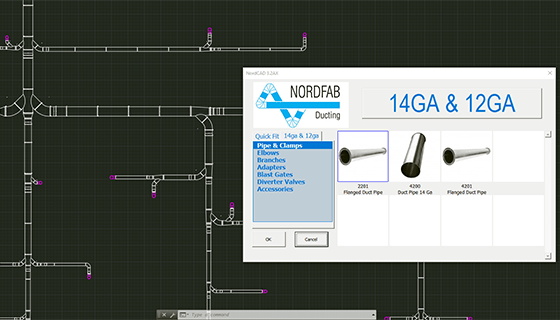

NordCAD screenshot

As of September 2019, NordCAD 3.2AX replaces all previous versions of NordCAD.

NordCAD 3.2AX users can export a Bill of Material that can be imported into Nordfab’s quoting tool to generate a quick quote for the materials listed in the Bill of Material.

Current NordCAD users should replace older versions with NordCAD 3.2AX. To download NordCAD 3.2AX, please click on the appropriate link below to register. Once you are registered, you will receive links to download the software along with installation and user instructions.

NOTE: The software is functional ONLY with FULL versions of AutoCAD. NordCAD 3.2AX is designed for users located in the Americas; all dimensions are in imperial units of measurement (users needing metric dimensions should request NordCAD Metric).

If you are a Nordfab Authorized Dealer, please click here to register.

If you are NOT a Nordfab Authorized Dealer, please use the form at the bottom of this page to register as a User.

Nordfab will use your registration information to email you news regarding updates to the software.

NOTE: All risks associated with Nordfab software downloads are the responsibility of the user. Nordfab LLC is not responsible for any failures or other harm which may occur to your computer after you download or install this complimentary software. You must accept Nordfab’s License Agreement to register for use of this software.

Assistance with Ducting Layouts for Your Plant or Shop

If you do not have AutoCAD, Nordfab Ducting can provide, through our authorized dealers, detailed drawings and parts lists for your duct system. Your local dealer may request that you complete a questionnaire detailing machine locations and sizes as well as general information about your dust collection system. Contact Nordfab to learn more.
