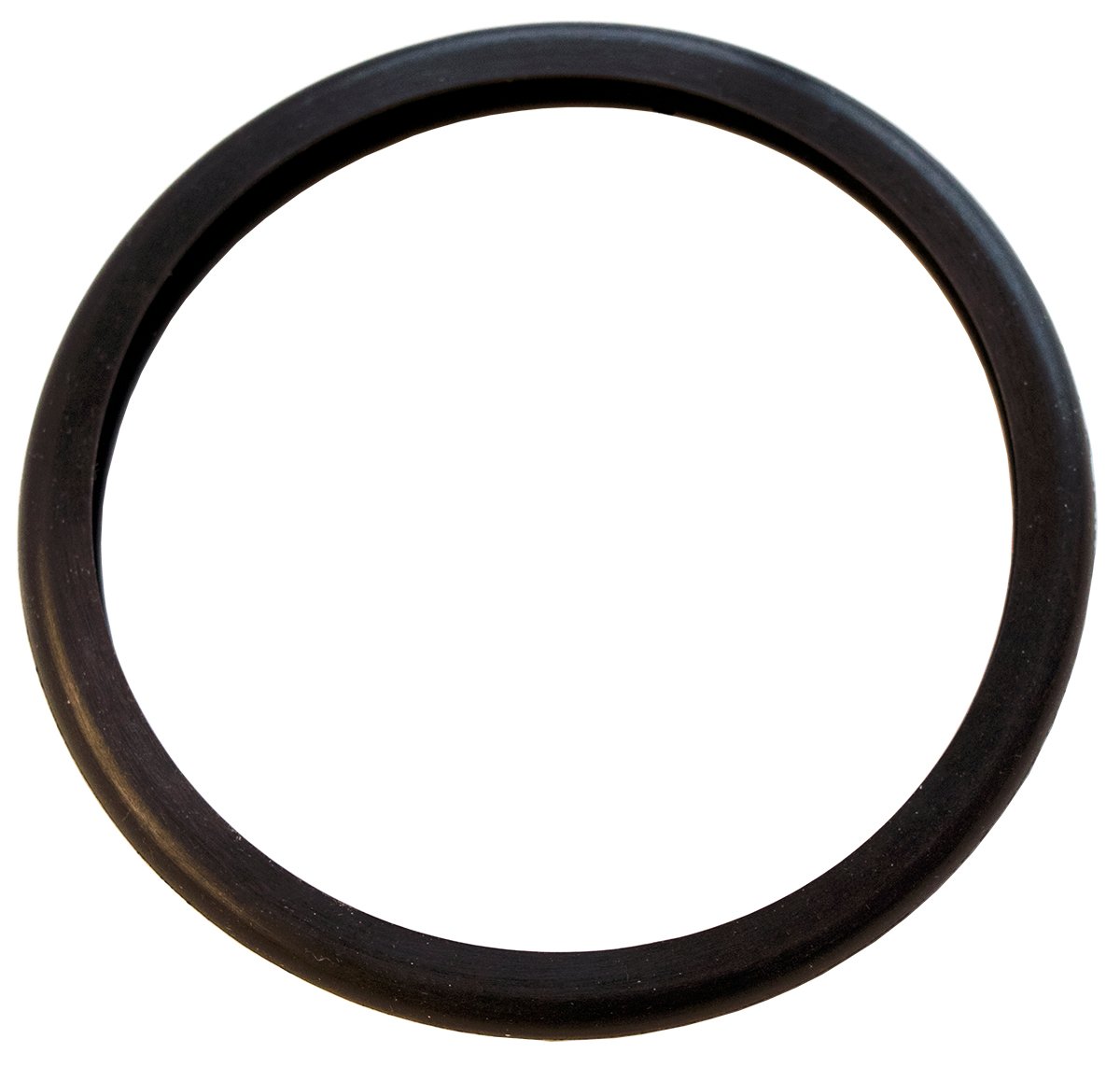

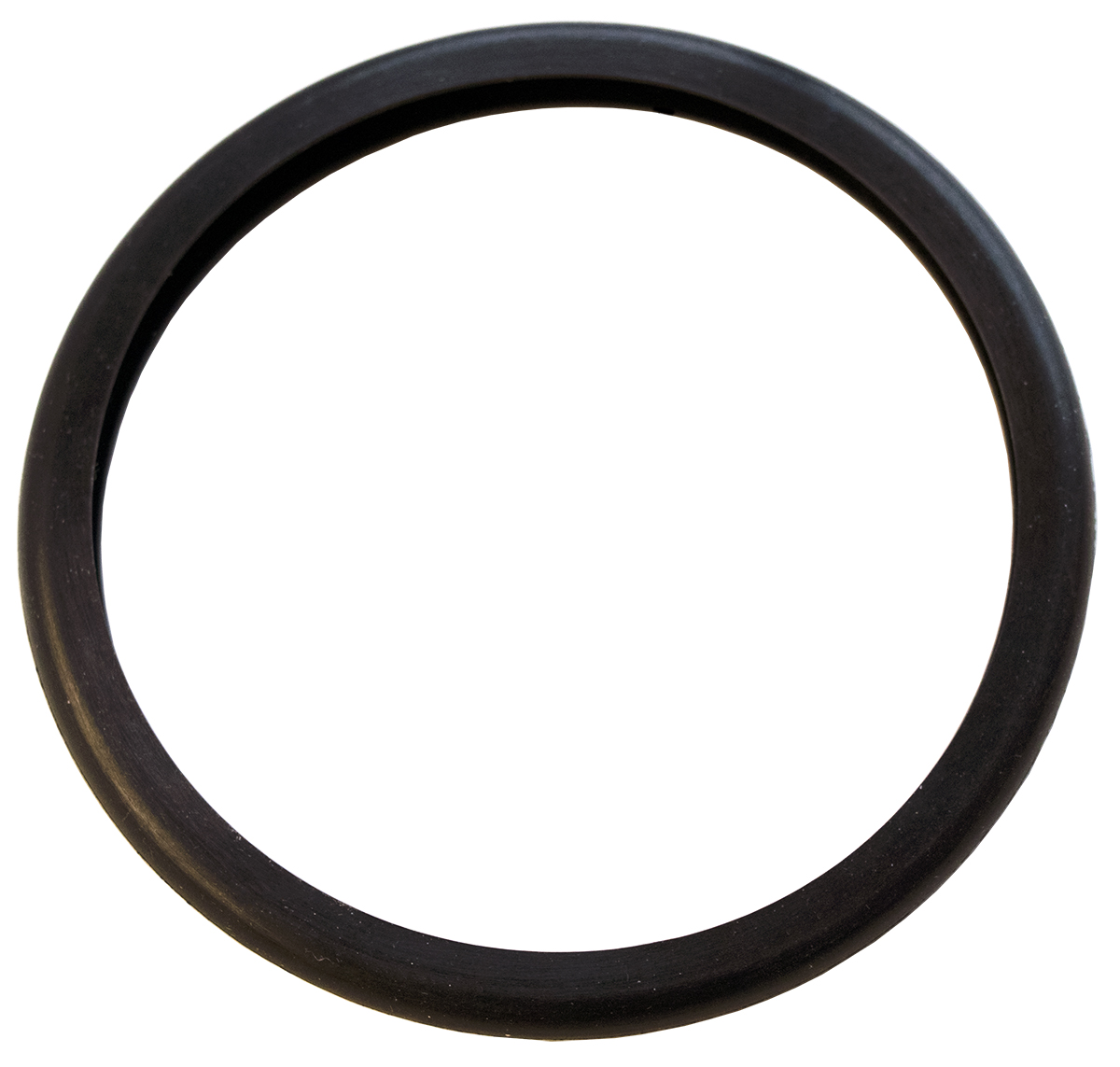

QFS Gasket

New Improved Design:
• Easier to install

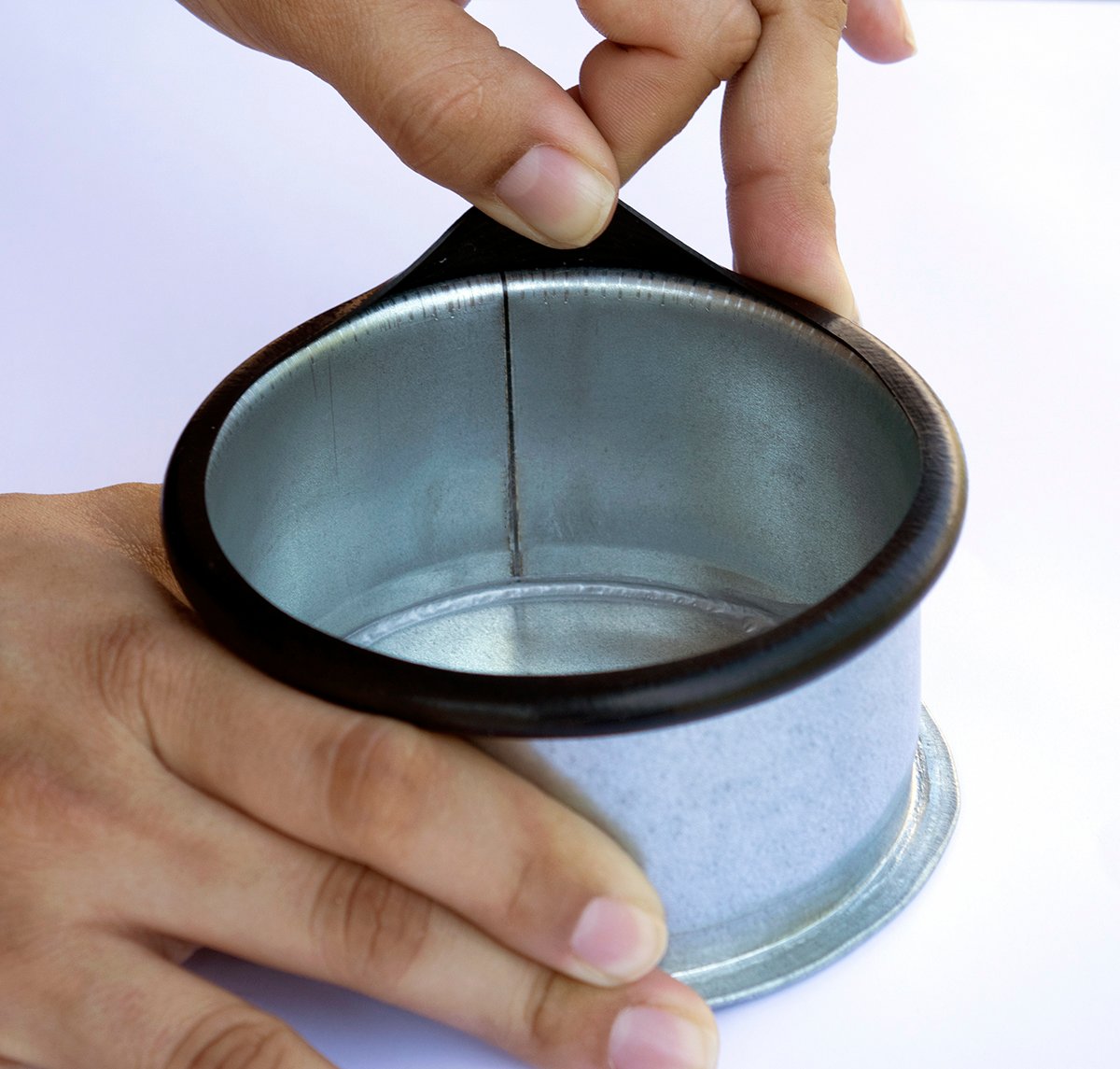

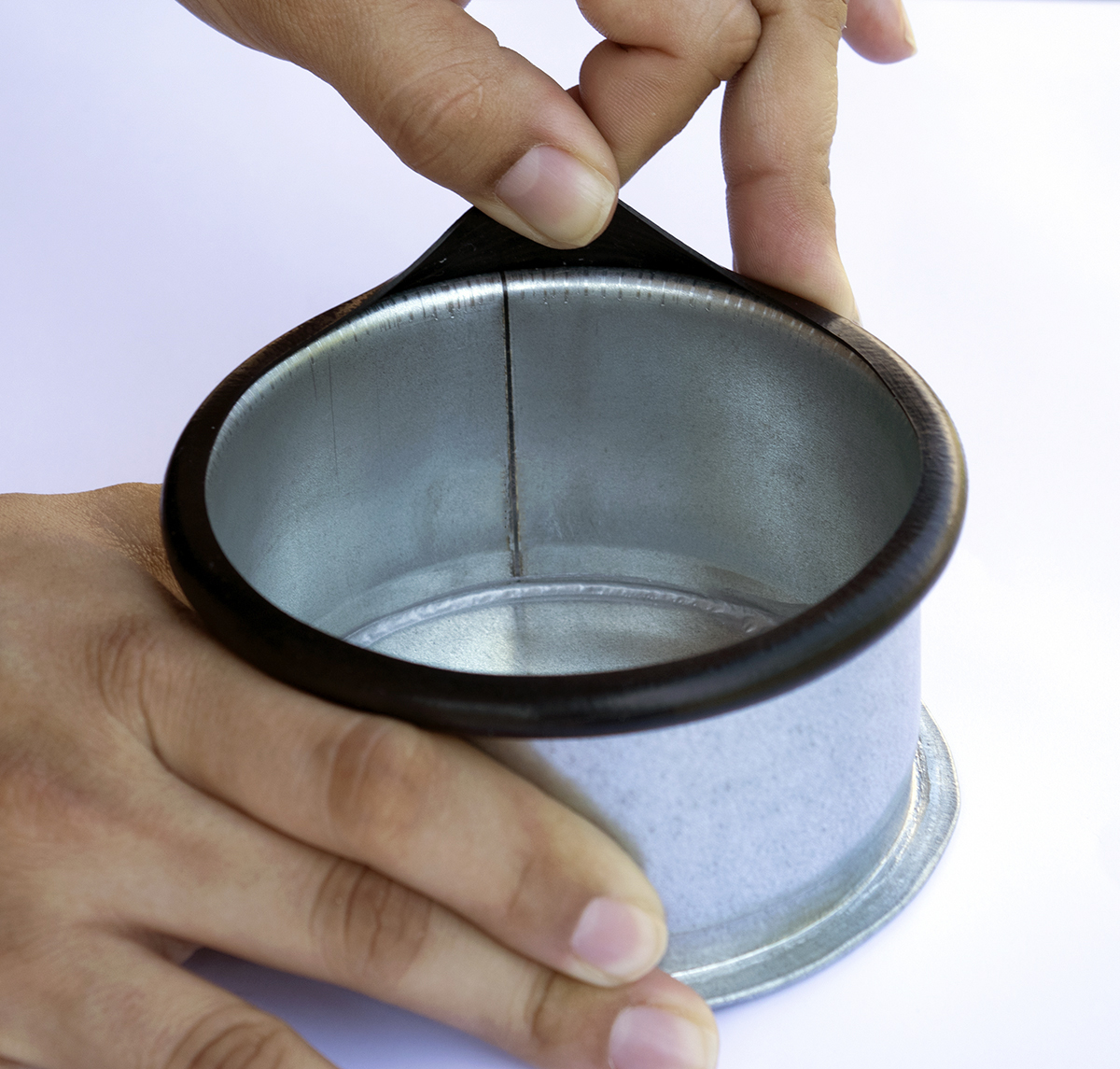

• No adhesive needed, fits snugly around rolled edge
• Non-directional
• Fewer sizes required
• Same conductive material (no material change from previous design)

General purpose oil resistant polymer. Performs well in many oil, water and hydraulic fluid applications.

Should not be used with solvents such as acetone, MEK, ozone, chlorinated hydrocarbons, and nitro hydrocarbons.

Temp range: -30° F to +225° F.

If a different B diameter is shown below, the same gasket fits both dimensions.

ø A in ø B (in) Material T mm Length (in) Weight (lbs) Legacy Art. Nr. Art. No.
3 3 Nitrile ---‍ 8010006100‍
4 5 Nitrile ---‍ 8010006101‍
6 6 Nitrile ---‍ 8010006102‍
7 7 Nitrile ---‍ 8010006103‍
8 9 Nitrile ---‍ 8010006104‍
10 11 Nitrile ---‍ 8010006105‍
12 13 Nitrile ---‍ 8010006106‍
14 15 Nitrile ---‍ 8010006107‍
16 17 Nitrile ---‍ 8010006108‍
18 19 Nitrile ---‍ 8010006109‍
20 21 Nitrile ---‍ 8010006110‍
22 23 Nitrile ---‍ 8010006111‍
24 24 Nitrile ---‍ 8010006112‍
