US Quick-Fit Sleeve

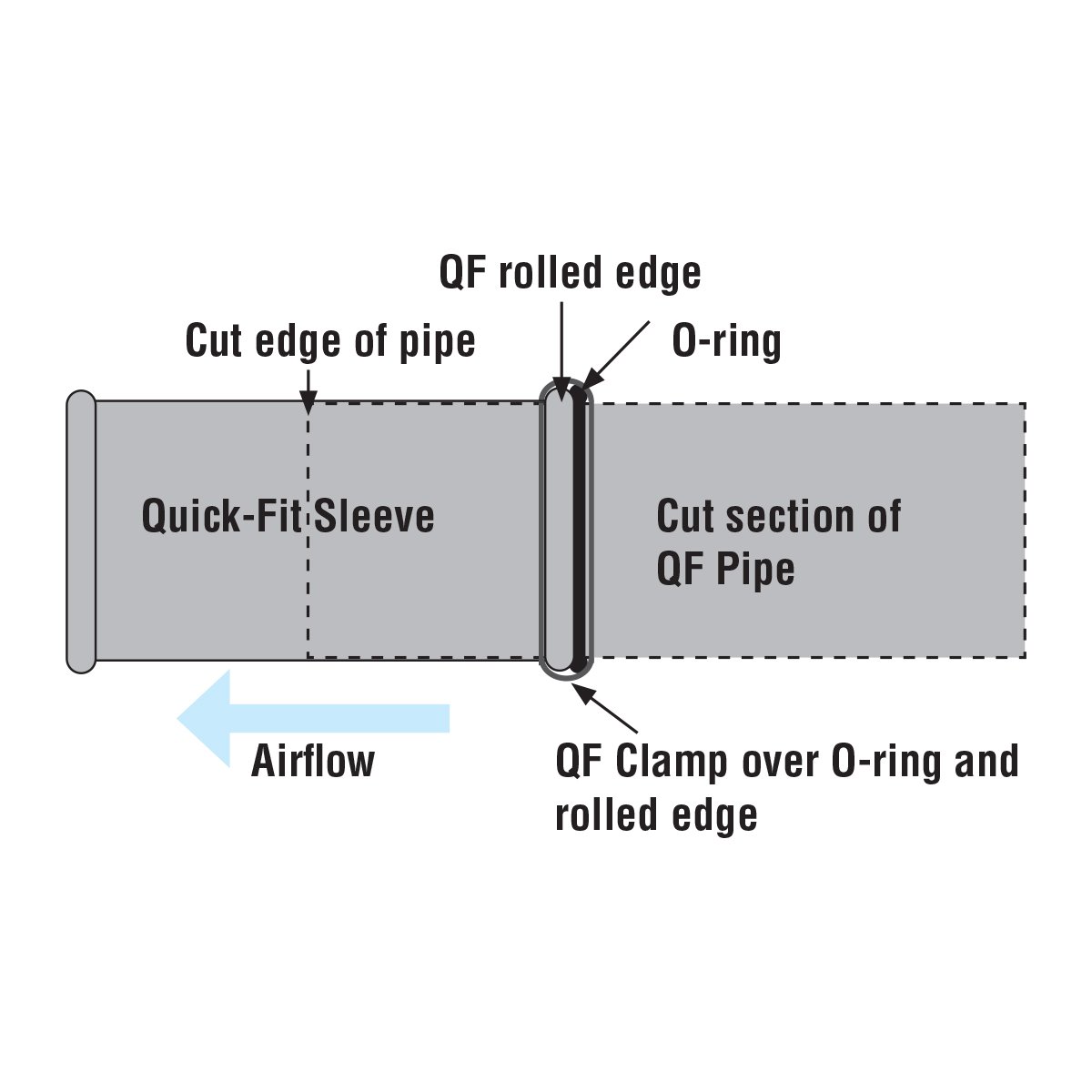

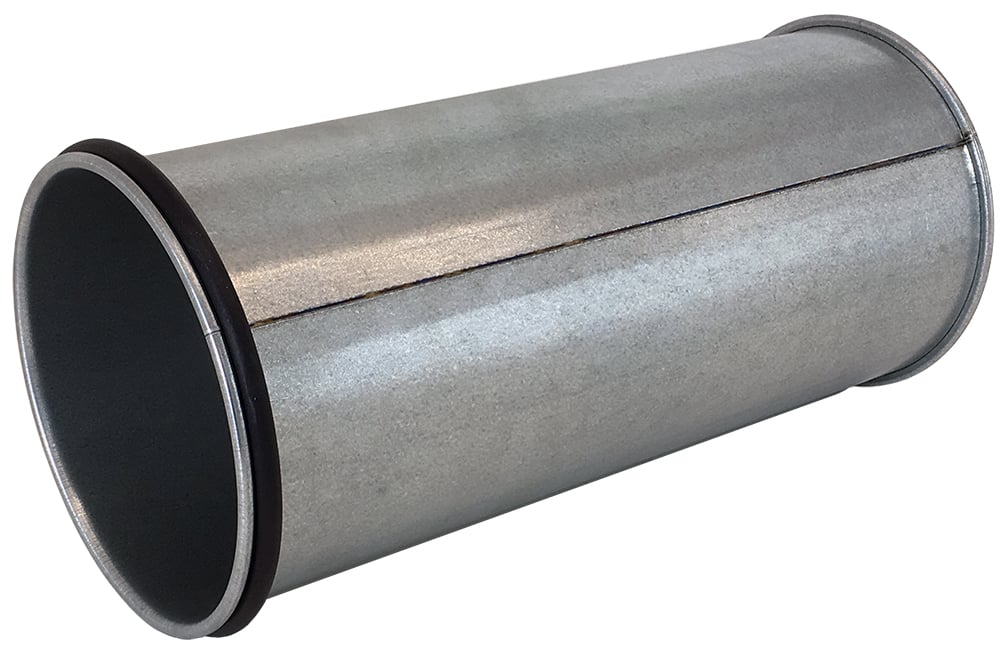

The Nordfab Quick-Fit® Sleeve, formerly known as the Adjustable Nipple, is used to quickly provide variable length adjustments in ducting lines of QF Pipe, typically when the length to be spanned is less than a standard 5’ Pipe. QF Sleeve seams are laser welded, preventing leakage, providing a more efficient dust collection system.

Black nitrile O-ring is included. Specify Red silicone O-ring if needed (additional cost) for higher temperature applications.

Quick-Fit ducting components are adaptable to your existing ductwork and Quick-Fit has been used in a wide variety of applications, wherever dust collection or fine particulate transfer is required.

  • Available in galvanized steel and 304SS (as shown below)
  • Available in diameters to 24"
  • Also available in heavier gauges: 16 gauge assembly, or 14 gauge assembly
  • Quick-Fit Sleeves are a Nordfab Now® product so items in the most commonly used sizes and material are in stock and can typically be shipped the day after order placement. Let Nordfab or your authorized dealer know if your order is urgent.

Contact Nordfab or your local Nordfab dealer for assistance with material / gauge options.

Request a Quote
Download our Quick-Fit Sleeve Product Data sheet
Download our QF Pipe Revit® families



See our Quick-Fit Ducting Installation instructions



Learn how to install the Quick-Fit Sleeve.

ø A in Material Thickness Length (in) Weight (lbs) Legacy Item No. Item No.
3 Galv 22ga 11.25 0.8 3202-0300-100000‍ 8040207299‍
4 Galv 22ga 11.375 1.05 3202-0400-100000‍ 8040207300‍
5 Galv 22ga 11.375 1.3 3202-0500-100000‍ 8040207301‍
6 Galv 22ga 11.375 1.6 3202-0600-100000‍ 8040207302‍
7 Galv 22ga 11.125 2.4 3202-0700-100000‍ 8040207303‍
8 Galv 22ga 11.125 2.7 3202-0800-100000‍ 8040207304‍
9 Galv 22ga 11.125 3.05 3202-0900-100000‍ 8040207305‍
10 Galv 22ga 11.125 3.4 3202-1000-100000‍ 8040207306‍
11 Galv 22ga 11.125 3.8 3202-1100-100000‍ 8040207307‍
12 Galv 22ga 10.875 4.2 3202-1200-100000‍ 8040207308‍
13 Galv 20ga 10.875 4.7 3202-1300-100000‍ 8040207309‍
14 Galv 20ga 10.875 5.85 3202-1400-100000‍ 8040207310‍
15 Galv 20ga 10.875 6.25 3202-1500-100000‍ 8040207311‍
16 Galv 20ga 10.875 6.65 3202-1600-100000‍ 8040207312‍
17 Galv 20ga 10.875 7.05 3202-1700-100000‍ 8040207313‍
18 Galv 20ga 10.875 7.45 3202-1800-100000‍ 8040207314‍
19 Galv 20ga 10.875 7.9 3202-1900-100000‍ 8040207315‍
20 Galv 20ga 10.875 8.1 3202-2000-100000‍ 8040207316‍
21 Galv 20ga 10.875 8.5 3202-2100-100000‍ 8040207317‍
22 Galv 20ga 10.875 8.8 3202-2200-100000‍ 8040207318‍
23 Galv 20ga 10.875 9.1 3202-2300-100000‍ 8040207319‍
24 Galv 20ga 10.875 9.7 3202-2400-100000‍ 8040207320‍
3 304SS 22ga 11.25 0.8 3202-0300-200000‍ 8040207321‍
4 304SS 22ga 11.375 1.05 3202-0400-200000‍ 8040207322‍
5 304SS 22ga 11.375 1.3 3202-0500-200000‍ 8040207323‍
6 304SS 22ga 11.375 1.6 3202-0600-200000‍ 8040207324‍
7 304SS 22ga 11.125 2.4 3202-0700-200000‍ 8040207325‍
8 304SS 22ga 11.125 2.7 3202-0800-200000‍ 8040207326‍
9 304SS 22ga 11.125 3.05 3202-0900-200000‍ 8040207327‍
10 304SS 22ga 11.125 3.4 3202-1000-200000‍ 8040207328‍
11 304SS 20ga 11.125 3.8 3202-1100-200000‍ 8040207329‍
12 304SS 22ga 10.875 4.2 3202-1200-200000‍ 8040207330‍
13 304SS 20ga 10.875 4.7 3202-1300-200000‍ 8040207331‍
14 304SS 20ga 10.875 5.85 3202-1400-200000‍ 8040207332‍
15 304SS 20ga 10.875 6.25 3202-1500-200000‍ 8040207333‍
16 304SS 20ga 10.875 6.65 3202-1600-200000‍ 8040207334‍
17 304SS 20ga 10.875 7.05 3202-1700-200000‍ 8040207335‍
19 304SS 20ga 10.875 7.9 3202-1900-200000‍ 8040207337‍
20 304SS 20ga 10.875 8.1 3202-2000-200000‍ 8040207338‍
21 304SS 20ga 10.875 8.5 3202-2100-200000‍ 8040207339‍
22 304SS 20ga 10.875 8.8 3202-2200-200000‍ 8040207340‍
23 304SS 20ga 10.875 9.1 3202-2300-200000‍ 8040207341‍
24 304SS 20ga 10.875 9.7 3202-2400-200000‍ 8040207342‍
