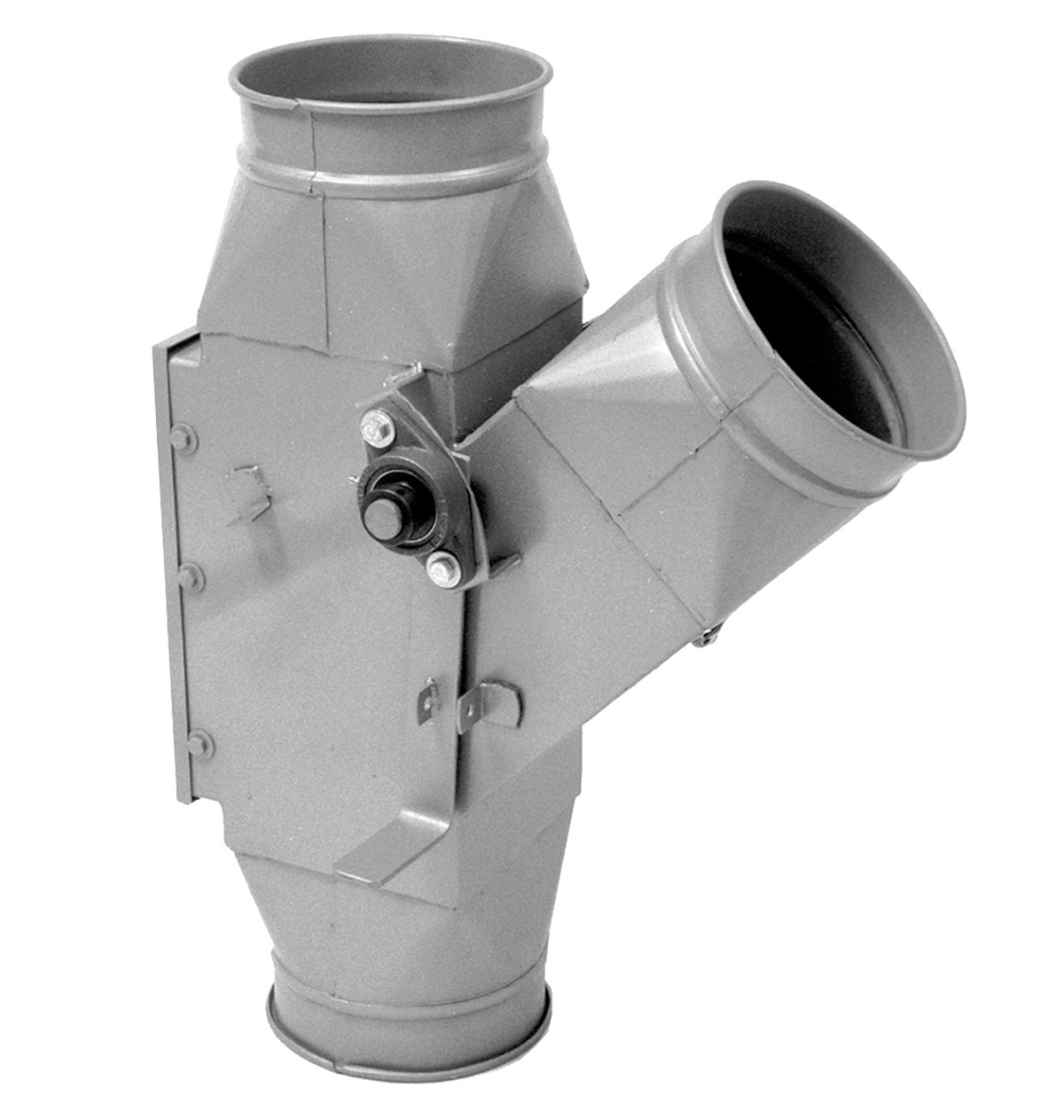

QF Manual Diverter 14 ga

Nordfab’s 14 Gauge Manual Diverter Valves provide a high efficiency, economical method of diverting the flow of material or air.

Housing constructed of heavy 3/16” thick, painted black metal, with welded seams. Transitions constructed of 14 gauge galvanized steel. Supplied with heavy duty flange bearings and rubber seal in door.

Available with Quick-Fit™ (QF) rolled ends in sizes up to 24″ diameter or flanged ends. Flanged end is standard rotational Angle Flange retained via vanstone lip.

45º angle only.

Other sizes available upon request.

Reverse flow available upon request.

• Available in carbon steel (as shown below)
• Available with flanged ends in diameters up to 24", and other various end types
• Optional gauges 18, 16, and 12

Contact Nordfab or your local Nordfab dealer for assistance with material / end type options.

ø A in Material T mm Length (in) Weight (lbs) Legacy Art. Nr. Art. No.
8 MS 3/16" 4235-0845-400000‍ 8010003135‍
9 MS 3/16" 4235-0945-400000‍ 8010003137‍
10 MS 3/16" 4235-1045-400000‍ 8010003100‍
11 MS 3/16" 4235-1145-400000‍ 8010003102‍
12 MS 3/16" 4235-1245-400000‍ 8010003104‍
13 MS 3/16" 4235-1345-400000‍ 8010003106‍
14 MS 3/16" 4235-1445-400000‍ 8010003108‍
15 MS 3/16" 4235-1545-400000‍ 8010003110‍
16 MS 3/16" 4235-1645-400000‍ 8010003112‍
17 MS 3/16" 4235-1745-400000‍ 8010003114‍
18 MS 3/16" 4235-1845-400000‍ 8010003116‍
19 MS 3/16" 4235-1945-400000‍ 8010003118‍
20 MS 3/16" 4235-2045-400000‍ 8010003120‍
21 MS 3/16" 4235-2145-400000‍ 8010003122‍
22 MS 3/16" 4235-2245-400000‍ 8010003124‍
23 MS 3/16" 4235-2345-400000‍ 8010003126‍
24 MS 3/16" 4235-2445-400000‍ 8010003128‍
