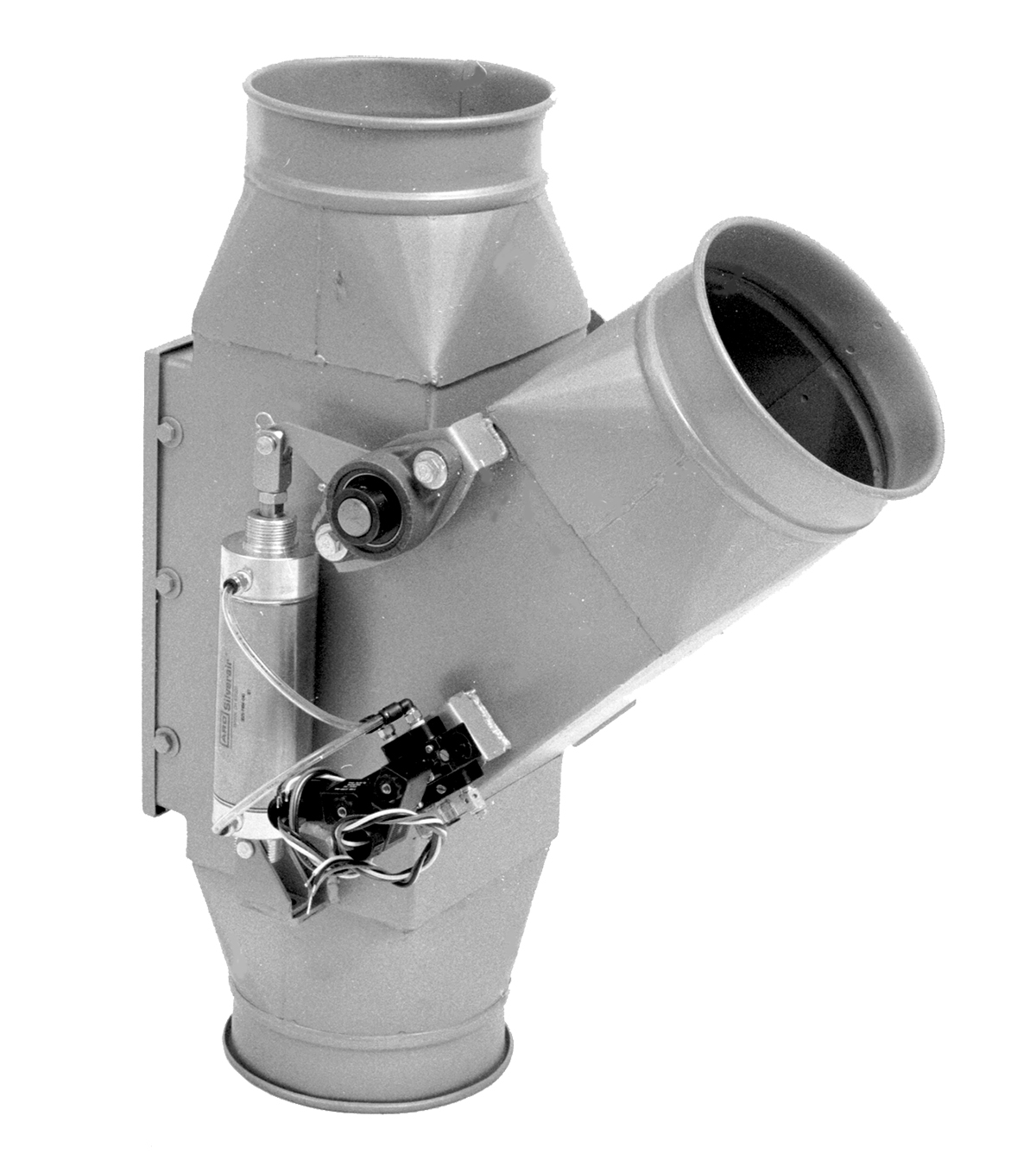

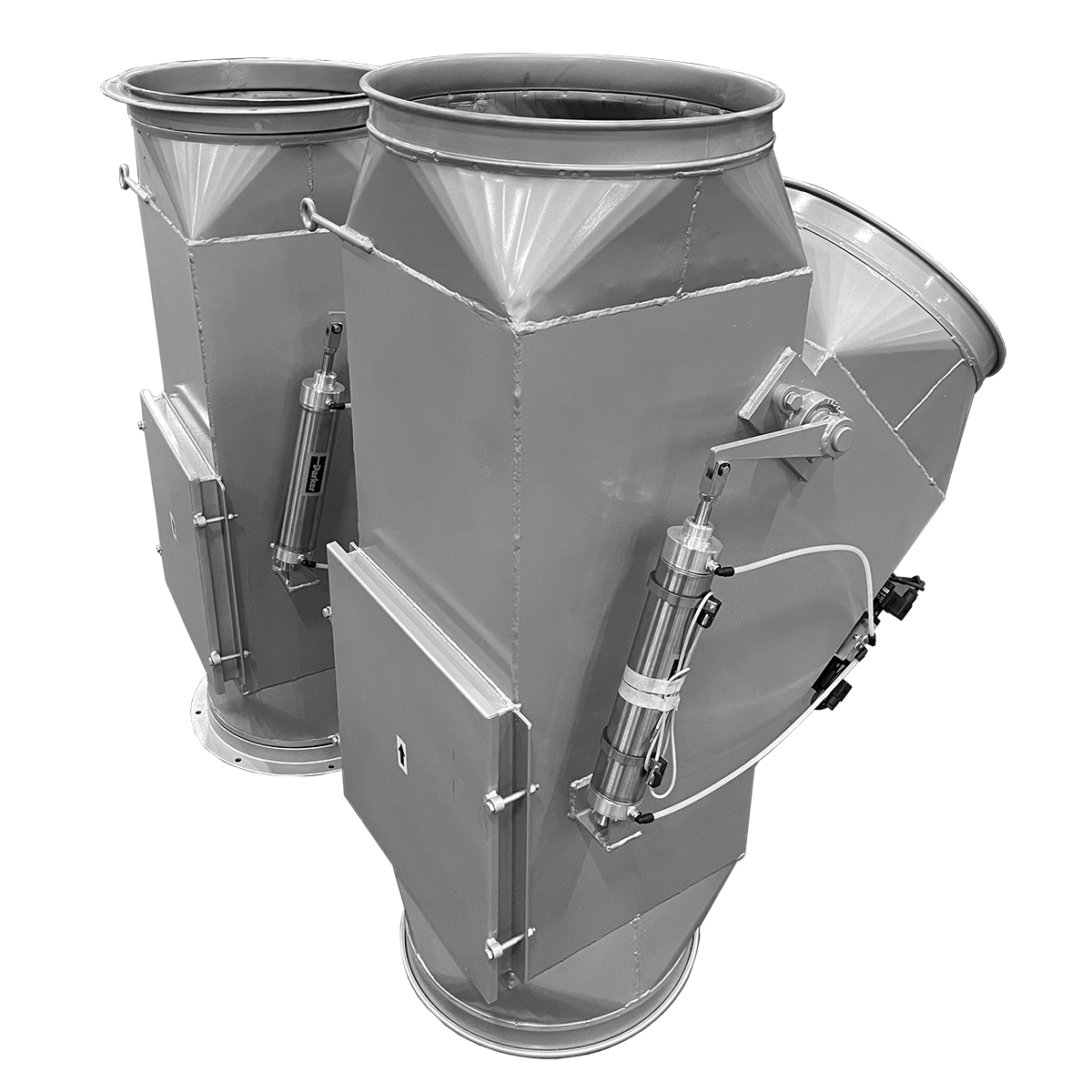

QF Automatic Diverter Valve

Nordfab’s QF® Automatic Diverter Valve offers a highly efficient, economical method of diverting the flow of material or air via automatic opening and closing.

Constructed of heavy 3/16″ thick metal with welded seams. Supplied with heavy duty flange bearings and rubber seal in door.

Minimum 75psi.

45º angle only.

Auto Diverter Valves have single magnetic cylinders with painted Mild Steel or 304SS body and steel rod (galvanized or SS collars). Standard is galvanized collar with MS body. SS optional. Solenoid has plastic housing.

Other sizes available upon request.

• Available in carbon steel and 304SS (as shown below) or optional 316SS
• Available with flanged ends in diameters up to 24", and other various end types
• Optional gauges 18, 16, 14 and 12

Contact Nordfab or your local Nordfab dealer for assistance with material / end type options.
