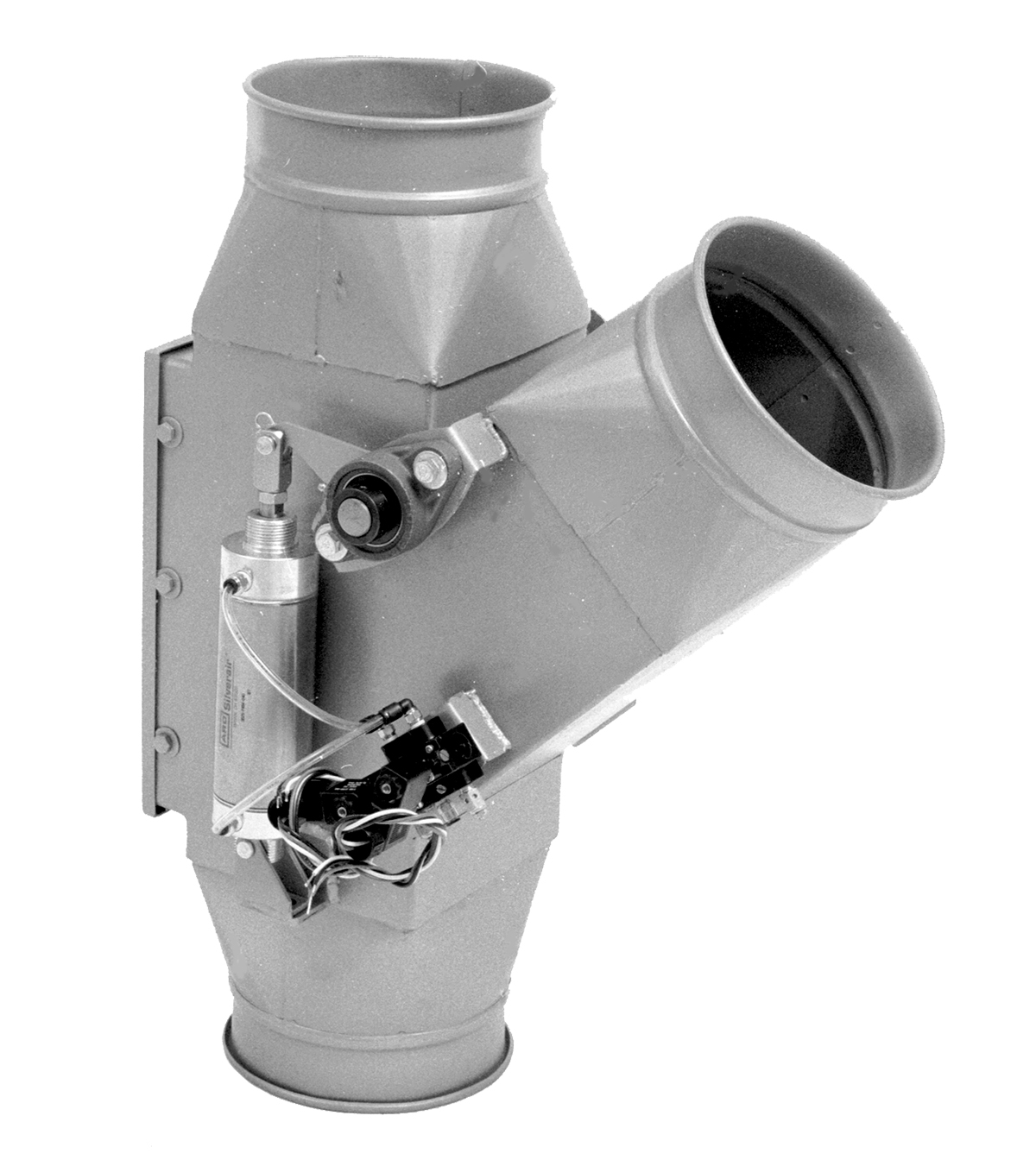

QF Auto Diverter 14ga

Nordfab’s 14 Gauge Automatic Diverter Valves provide a high efficiency, economical method of diverting the flow of material or air.

Power Open and Close.

Housing constructed of heavy 3/16” thick, painted black metal, with welded seams. Transitions constructed of 14 gauge galvanized steel. Supplied with heavy duty flange bearings and rubber seal in door. Solenoid has plastic housing. Bearing is iron.

Available with Quick-Fit® (QF) rolled ends in sizes up to 24″ diameter or flanged ends. Flanged end is standard rotational Angle Flange retained via vanstone lip.

45º angle only.

Min. 75psi.

• Available in carbon steel (as shown below)
• Available with flanged ends in diameters up to 24", and other various end types
• Optional gauges 18, 16, and 12

Contact Nordfab or your local Nordfab dealer for assistance with material / end type options.

ø A in Material Voltage/Control T mm Legacy Art. Nr. Art. No.
8 MS 120 VAC Double acting 3/16" 4236-0845-400000‍ 8010003064‍
9 MS 120 VAC Double acting 3/16" 4236-0945-400000‍ 8010003071‍
10 MS 120 VAC Double acting 3/16" 4236-1045-400000‍ 8010002929‍
11 MS 120 VAC Double acting 3/16" 4236-1145-400000‍ 8010002936‍
12 MS 120 VAC Double acting 3/16" 4236-1245-400000‍ 8010002943‍
13 MS 120 VAC Double acting 3/16" 4236-1345-400000‍ 8010002950‍
14 MS 120 VAC Double acting 3/16" 4236-1445-400000‍ 8010002957‍
15 MS 120 VAC Double acting 3/16" 4236-1545-400000‍ 8010002964‍
16 MS 120 VAC Double acting 3/16" 4236-1645-400000‍ 8010002971‍
17 MS 120 VAC Double acting 3/16" 4236-1745-400000‍ 8010002978‍
18 MS 120 VAC Double acting 3/16" 4236-1845-400000‍ 8010002985‍
19 MS 120 VAC Double acting 3/16" 4236-1945-400000‍ 8010002992‍
20 MS 120 VAC Double acting 3/16" 4236-2045-400000‍ 8010002999‍
21 MS 120 VAC Double acting 3/16" 4236-2145-400000‍ 8010003006‍
22 MS 120 VAC Double acting 3/16" 4236-2245-400000‍ 8010003013‍
23 MS 120 VAC Double acting 3/16" 4236-2345-400000‍ 8010003020‍
24 MS 120 VAC Double acting 3/16" 4236-2445-400000‍ 8010003027‍
