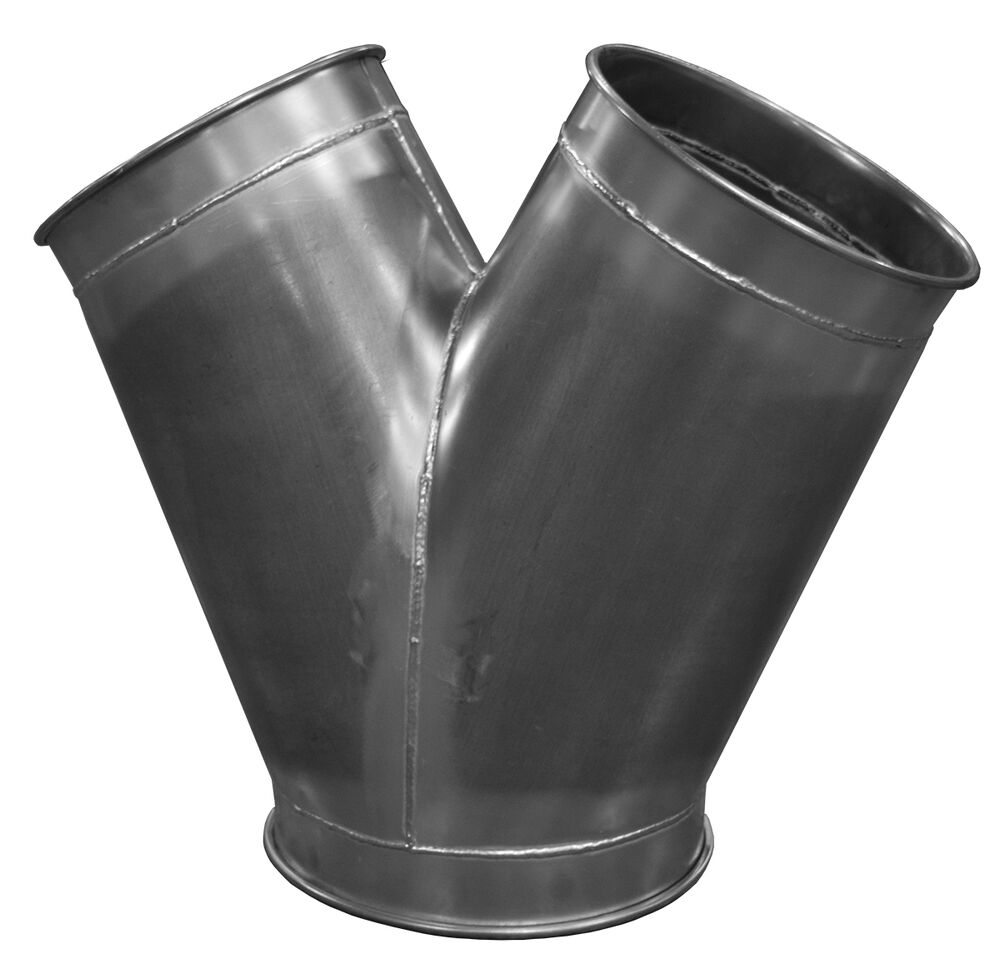

QF Y Branch 14 Gauge 90°

Nordfab Quick-Fit® Y Branches (sometimes called “true wyes”) are standard with QF rolled ends, allowing quick connections with other QF ductwork. These Y shape branches are also available with a 60º angle between the legs.

14 gauge material construction adds extra durability and the solid welded seams eliminate leakage. Elimination of air leakage makes a dust collection system more efficient, providing savings on energy costs.

⦁ When ordering, specify galvanized material; 14 gauge; dimensions A, B, C; end styles; and angle (90° shown below, 60° also available).
⦁ Both B & C each must be at least 50% of A, with B or C being at least 80% of the opposite leg.
⦁ Use the following formula to determine length: L = A + 4"
⦁ Available with flanged ends in diameters up to 72", and other various end types
⦁ Available with 60° angle
⦁ Other gauges available include standard 22 and 20 18, 16, 12 and 10

Contact Nordfab or your local Nordfab dealer for assistance with branch configurations not shown below, larger sizes, and material / gauge options.

Quick-Fit has been used in a wide variety of applications, wherever dust collection or fine particulate transfer is required. Quick-Fit saves time and money on installation, is easy to clean out, is adaptable to existing ductwork, and is easily re-used during shop floor reconfigurations. Learn more about why Quick-Fit may be the best solution for you.
