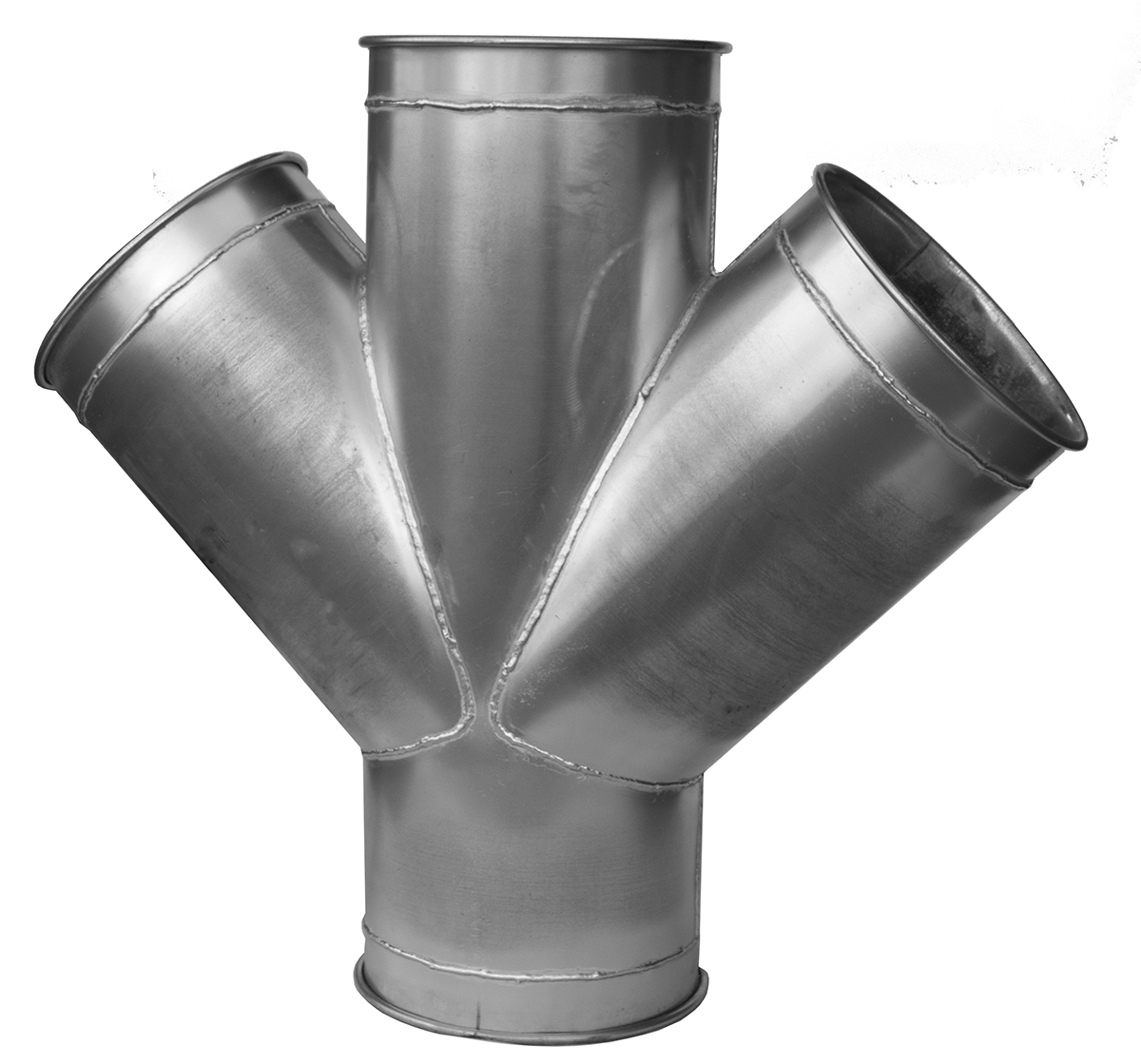

QF Double Branch 14 Gauge 45°

QF Double Branches are standard with QF rolled ends, allowing quick connections with other QF ductwork.

14 gauge material construction adds extra durability and the solid welded seams eliminate leakage. Elimination of air leakage makes a dust collection system more efficient, providing savings on energy costs.

• When ordering, specify galvanized steel material; 14 gauge; dimensions A, B, C, and D; end styles if not all QF; and angle 45°.

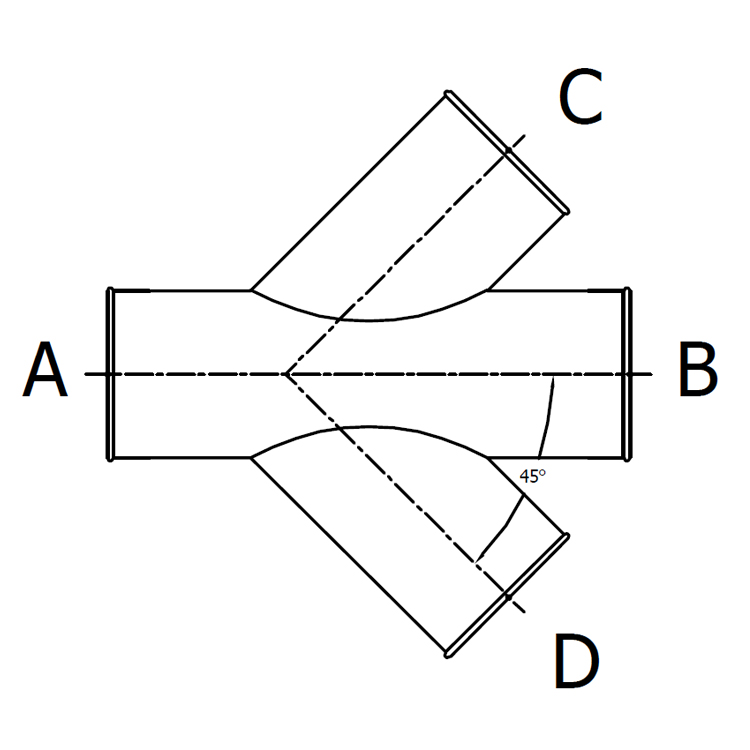

• (A - C) ≥ (C-B) and (C) ≥ (D).   Use formula above to determine if a reducer is needed at C or D.
• Length = C X 2 + 9"
• Available with flanged ends in diameters up to 72", and other various end types
• Available with 30° angle
• Other available gauges include standard 22 and 20, 18, 16, 12 and 10

Contact Nordfab or your local Nordfab dealer for assistance with branch configurations not shown below, larger sizes, and material / gauge options.
