QF Blast Gate NFES Auto 14ga

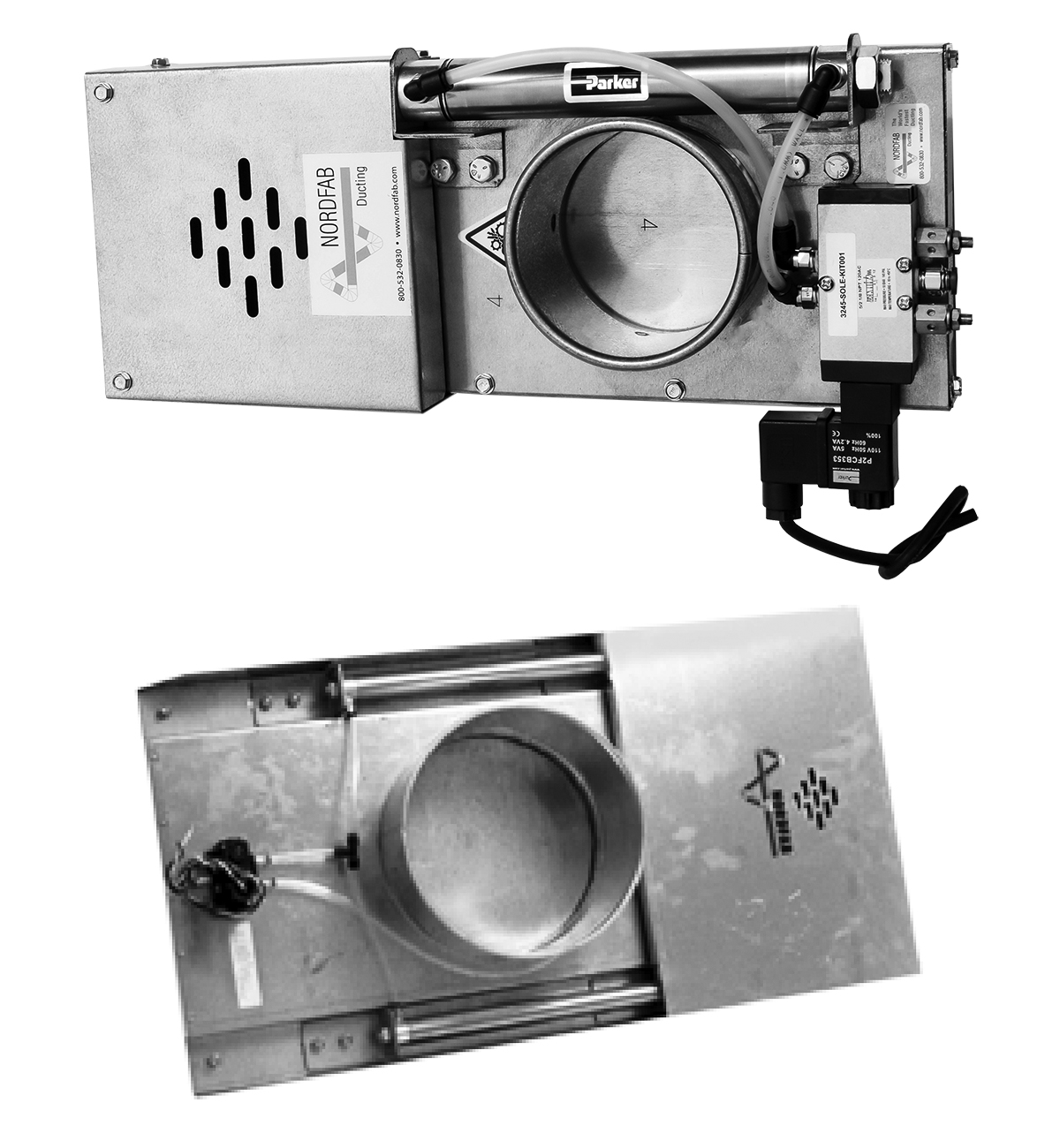

Blast gates are used as energy saving devices for industrial dust extraction where extraction is not always needed and where manual control needs to be eliminated. Nordfab’s NFES Automatic Blast Gates are operated by double-acting compressed air cylinders. The cylinders are controlled by electrically-connected solenoid to machines or a remote switch. Gates are constructed of galvanized metal or SS (optional) and a special sealing device that reduces air loss and friction in operation. 120V control circuit and 75psi minimum air pressure.

  • Optional 24V DC or AC control circuit available.
  • Single cylinder: 3″ to 8″. Two cylinders: 9″ to 22″.
  • RS = optional Reed Switch. See our Product Reference for construction and components information.
  • 14 gauge galvanized steel construction for extra durability
  • Available with flanged ends in diameters up to 22", and other various end types
  • Other collar gauges available: standard, 18, and 16

Nordfab can assist customers in designing a blast-gated system, taking into account flow dynamics that will be affected by blast gates. While blast gates can be used to effectively utilize an undersized filtering system, they can also destroy the flow if not properly placed. Contact Nordfab or your local dealer to request assistance.

Quick-Fit has been used in a wide variety of applications, wherever dust collection or fine particulate transfer is required. Quick-Fit saves time and money on installation, is easy to clean out, is adaptable to existing ductwork, and is easily re-used during shop floor reconfigurations. Learn more about why Quick-Fit may be the best solution for you.

Request a Quote


Download our NFES Automatic Blast Gate Product Data sheet

Learn more about the benefits and availability of heavy gauge ducting from Nordfab

ø A in Material Voltage/Control Thickness Legacy Item No. Item No.
8 Galv 120 VAC Sgl Actg 14ga 4245-0800-100000‍ 8010002401‍
9 Galv 120 VAC Sgl Actg 14ga 4245-0900-100000‍ 8010002402‍
10 Galv 120 VAC Sgl Actg 14ga 4245-1000-100000‍ 8010002394‍
12 Galv 120 VAC Sgl Actg 14ga 4245-1200-100000‍ 8010002395‍
14 Galv 120 VAC Sgl Actg 14ga 4245-1400-100000‍ 8010002396‍
16 Galv 120 VAC Sgl Actg 14ga 4245-1600-100000‍ 8010002397‍
18 Galv 120 VAC Sgl Actg 14ga 4245-1800-100000‍ 8010002398‍
20 Galv 120 VAC Sgl Actg 14ga 4245-2000-100000‍ 8010002399‍
22 Galv 120 VAC Sgl Actg 14ga 4245-2200-100000‍ 8010002400‍
