QF End Cap w/ Birdscreen

End caps with bird screen connect easily with the QF® Clamp and are used in situations where openings are needed to allow air to enter or exit a system. The bird screen keeps foreign objects from entering the system.

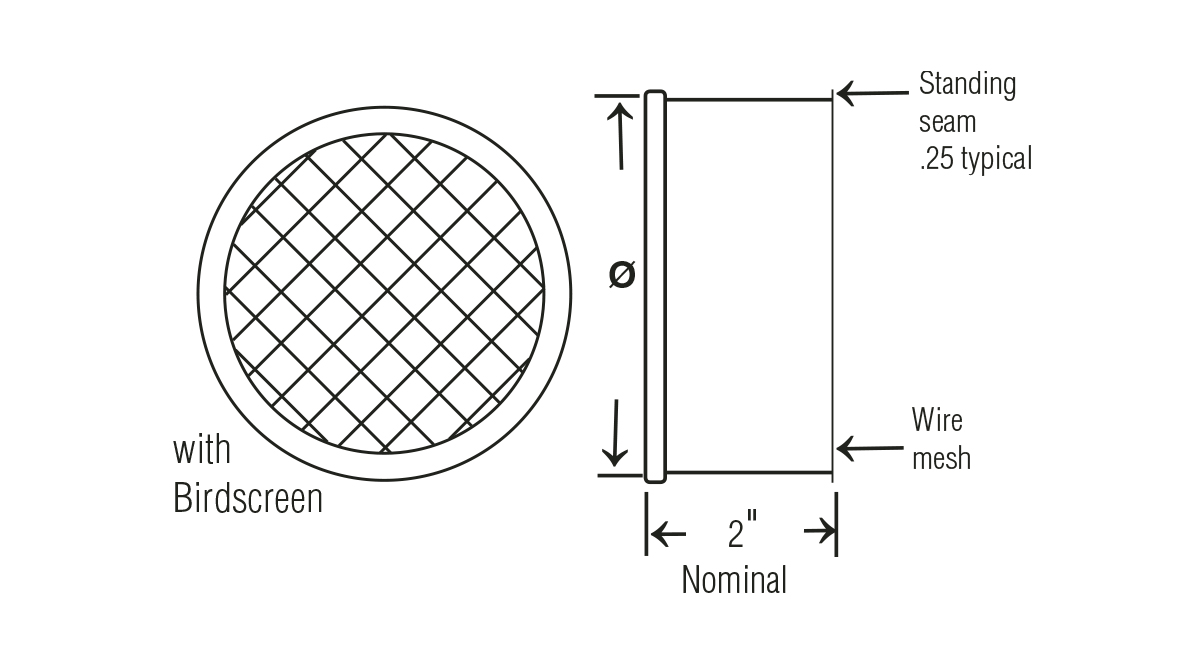

Birdscreen constructed of 1/2″ square wire mesh screen.

• Available in Galvanized and 304SS (as shown below) or optional 316SS or carbon steel
• Diameters larger than 24″ will have expanded metal
• Optional gauges 20, 18, 16, 14, 12 and 10

Contact Nordfab or your local Nordfab dealer for assistance with larger sizes and material / gauge options.

Request a Quote



Download our End Cap Product Data sheet



ø A in Material T mm Length (in) Weight (lbs) Legacy Item No. Item No.
3 Galv 18ga 2.25 3152-0300-100000‍ 8010003800‍
4 Galv 22ga 2.25 3152-0400-100000‍ 8010003816‍
5 Galv 22ga 2.25 3152-0500-100000‍ 8010003817‍
6 Galv 22ga 2.25 3152-0600-100000‍ 8010003818‍
7 Galv 22ga 2 3152-0700-100000‍ 8010003819‍
8 Galv 22ga 2 3152-0800-100000‍ 8010003820‍
9 Galv 22ga 2 3152-0900-100000‍ 8010003821‍
10 Galv 22ga 2 3152-1000-100000‍ 8010003813‍
11 Galv 22ga 2 3152-1100-100000‍ 8010003814‍
12 Galv 22ga 1.88 3152-1200-100000‍ 8010003815‍
13 Galv 20ga 1.88 3152-1300-100000‍ 8010003801‍
14 Galv 20ga 1.88 3152-1400-100000‍ 8010003802‍
15 Galv 20ga 1.88 3152-1500-100000‍ 8010003803‍
16 Galv 20ga 1.88 3152-1600-100000‍ 8010003804‍
17 Galv 20ga 1.88 3152-1700-100000‍ 8010003805‍
18 Galv 20ga 1.88 3152-1800-100000‍ 8010003806‍
19 Galv 20ga 1.88 3152-1900-100000‍ 8010003807‍
20 Galv 20ga 1.88 3152-2000-100000‍ 8010003808‍
21 Galv 20ga 1.88 3152-2100-100000‍ 8010003809‍
22 Galv 20ga 1.88 3152-2200-100000‍ 8010003810‍
23 Galv 20ga 1.88 3152-2300-100000‍ 8010003811‍
24 Galv 20ga 1.88 3152-2400-100000‍ 8010003812‍
3 304SS 18ga 2.25 3152-0300-200000‍ 8010003778‍
4 304SS 22ga 2.25 3152-0400-200000‍ 8010003794‍
5 304SS 22ga 2.25 3152-0500-200000‍ 8010003795‍
6 304SS 22ga 2.25 3152-0600-200000‍ 8010003796‍
7 304SS 22ga 2 3152-0700-200000‍ 8010003797‍
8 304SS 22ga 2 3152-0800-200000‍ 8010003798‍
9 304SS 22ga 2 3152-0900-200000‍ 8010003799‍
10 304SS 22ga 2 3152-1000-200000‍ 8010003791‍
11 304SS 22ga 2 3152-1100-200000‍ 8010003792‍
12 304SS 22ga 1.88 3152-1200-200000‍ 8010003793‍
13 304SS 20ga 1.88 3152-1300-200000‍ 8010003779‍
14 304SS 20ga 1.88 3152-1400-200000‍ 8010003780‍
15 304SS 20ga 1.88 3152-1500-200000‍ 8010003781‍
16 304SS 20ga 1.88 3152-1600-200000‍ 8010003782‍
17 304SS 20ga 1.88 3152-1700-200000‍ 8010003783‍
18 304SS 20ga 1.88 3152-1800-200000‍ 8010003784‍
19 304SS 20ga 1.88 3152-1900-200000‍ 8010003785‍
20 304SS 20ga 1.88 3152-2000-200000‍ 8010003786‍
21 304SS 20ga 1.88 3152-2100-200000‍ 8010003787‍
22 304SS 20ga 1.88 3152-2200-200000‍ 8010003788‍
23 304SS 20ga 1.88 3152-2300-200000‍ 8010003789‍
24 304SS 20ga 1.88 3152-2400-200000‍ 8010003790‍
