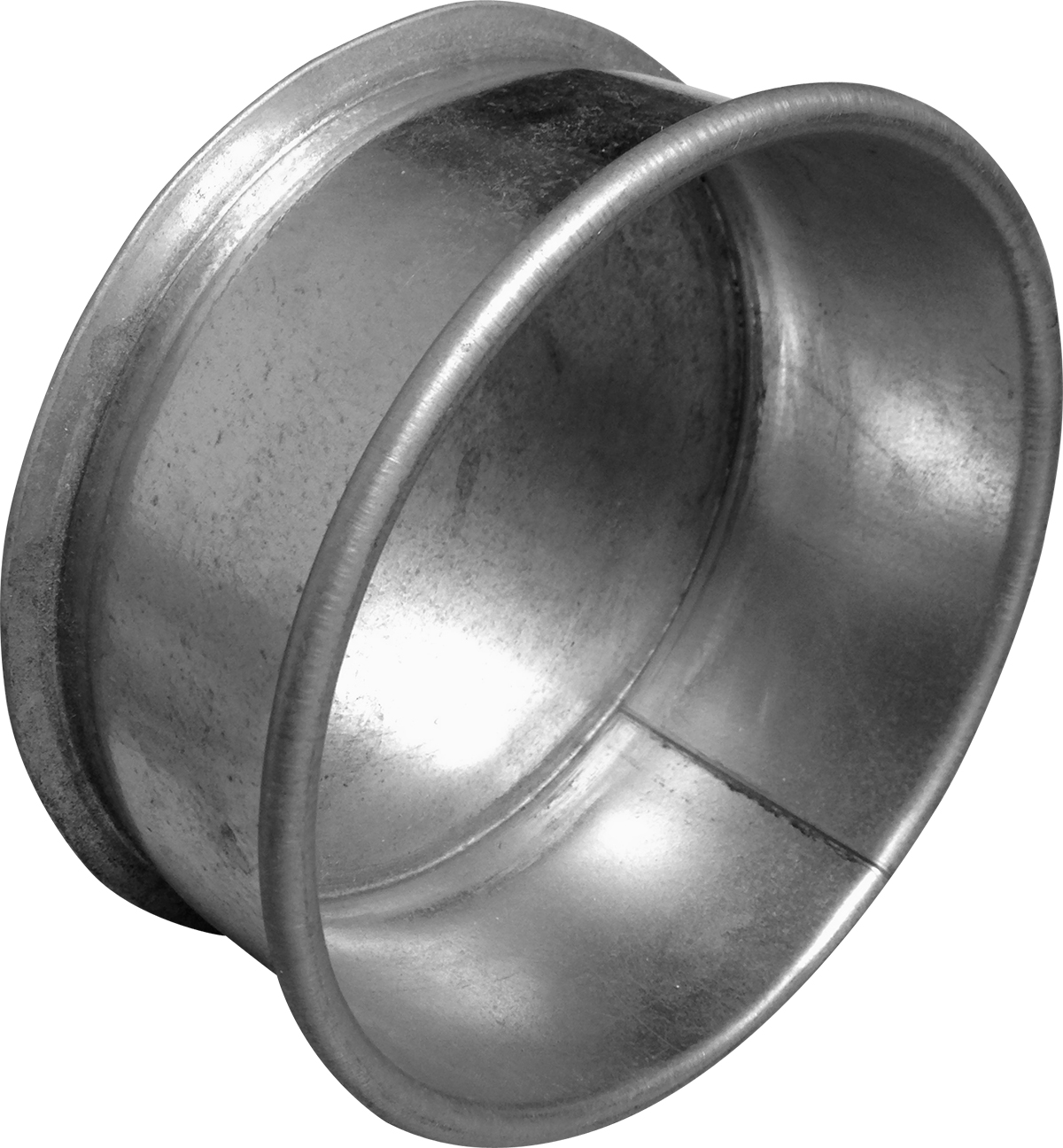

Quick-Fit® End Caps connect easily to other ductwork with the QF Clamp and are used to cap-off an unused ducting port. End Caps are ideal for blocking a port needed for future expansion or when a machine has been moved.
Contact Nordfab or your local Nordfab dealer for assistance with larger sizes and material / gauge options.
Quick-Fit has been used in a wide variety of applications, wherever dust collection or fine particulate transfer is required. Quick-Fit saves time and money on installation, is easy to clean out, is adaptable to existing ductwork, and is easily re-used during shop floor reconfigurations. Learn more about why Quick-Fit may be the best solution for you.
| Request a Quote |
|---|
| Download our End Cap Product Data sheet |
| Download our QF End Cap Revit® families |
If you need flanged connections or larger sizes than those shown below, please see our flanged end plate options

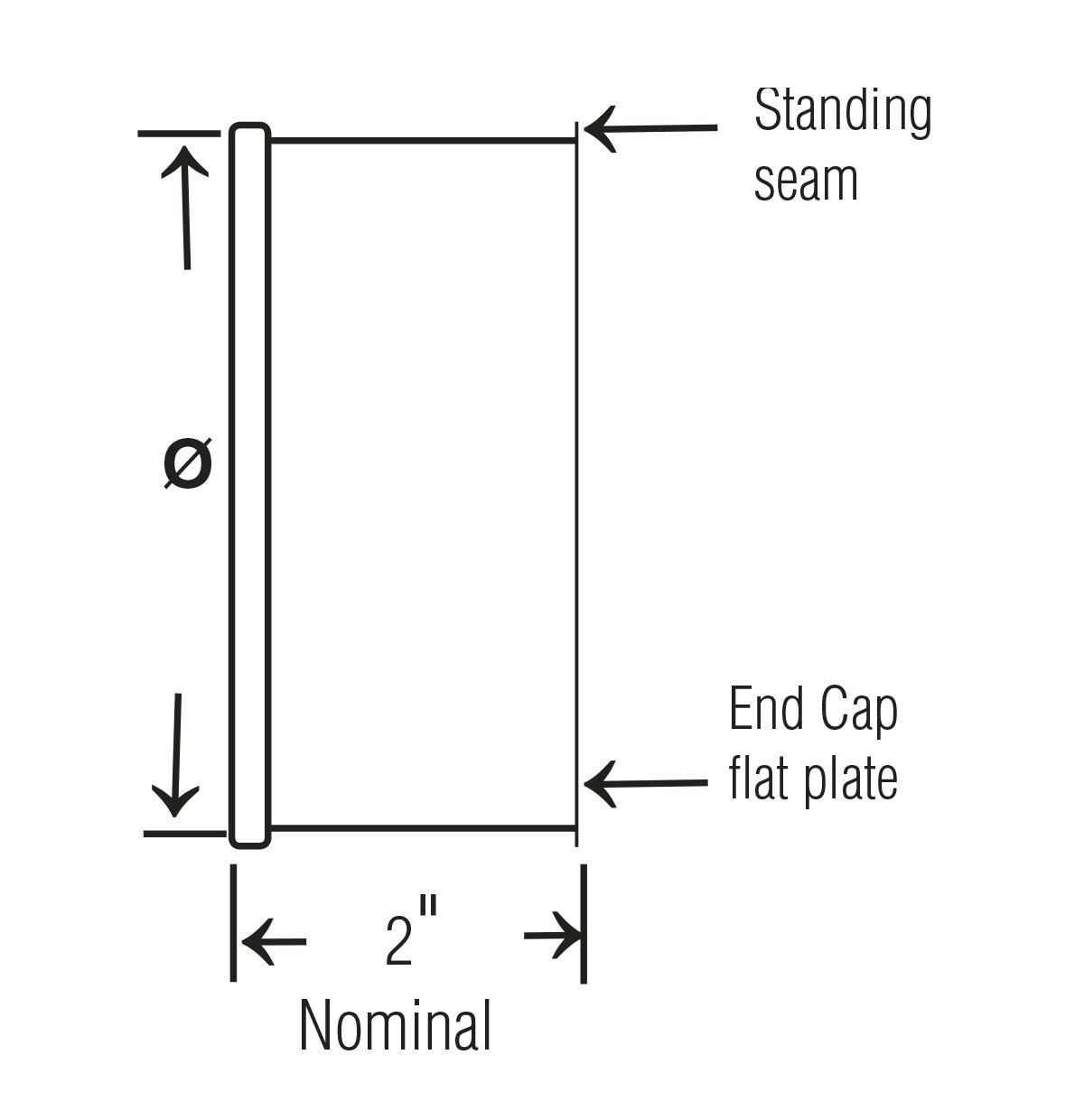

| ø A in | Material | Thickness | Length (in) | Weight (lbs) | Legacy Item No. | Item No. |
|---|---|---|---|---|---|---|
| 3 | Galv | 18ga | 2.25 | 0.3 | 3151-0300-100000 | 8010003756 |
| 4 | Galv | 22ga | 2.25 | 0.37 | 3151-0400-100000 | 8010003772 |
| 5 | Galv | 22ga | 2.25 | 0.5 | 3151-0500-100000 | 8010003773 |
| 6 | Galv | 22ga | 2.25 | 0.72 | 3151-0600-100000 | 8010003774 |
| 7 | Galv | 22ga | 2 | 0.92 | 3151-0700-100000 | 8010003775 |
| 8 | Galv | 22ga | 2 | 1.1 | 3151-0800-100000 | 8010003776 |
| 9 | Galv | 22ga | 2 | 1.4 | 3151-0900-100000 | 8010003777 |
| 10 | Galv | 22ga | 2 | 1.65 | 3151-1000-100000 | 8010003769 |
| 11 | Galv | 22ga | 2 | 1.85 | 3151-1100-100000 | 8010003770 |
| 12 | Galv | 22ga | 1.88 | 2.05 | 3151-1200-100000 | 8010003771 |
| 13 | Galv | 20ga | 1.88 | 2.45 | 3151-1300-100000 | 8010003757 |
| 14 | Galv | 20ga | 1.88 | 3.1 | 3151-1400-100000 | 8010003758 |
| 15 | Galv | 20ga | 1.88 | 3.55 | 3151-1500-100000 | 8010003759 |
| 16 | Galv | 20ga | 1.88 | 4 | 3151-1600-100000 | 8010003760 |
| 17 | Galv | 20ga | 1.88 | 4.45 | 3151-1700-100000 | 8010003761 |
| 18 | Galv | 20ga | 1.88 | 4.9 | 3151-1800-100000 | 8010003762 |
| 19 | Galv | 20ga | 1.88 | 5.2 | 3151-1900-100000 | 8010003763 |
| 20 | Galv | 20ga | 1.88 | 5.45 | 3151-2000-100000 | 8010003764 |
| 21 | Galv | 20ga | 1.88 | 5.9 | 3151-2100-100000 | 8010003765 |
| 22 | Galv | 20ga | 1.88 | 6.3 | 3151-2200-100000 | 8010003766 |
| 23 | Galv | 20ga | 1.88 | 7.1 | 3151-2300-100000 | 8010003767 |
| 24 | Galv | 20ga | 1.88 | 7.9 | 3151-2400-100000 | 8010003768 |
| 3 | 304SS | 18ga | 2.25 | 0.3 | 3151-0300-200000 | 8010003717 |
| 4 | 304SS | 22ga | 2.25 | 0.37 | 3151-0400-200000 | 8010003733 |
| 5 | 304SS | 22ga | 2.25 | 0.5 | 3151-0500-200000 | 8010003734 |
| 6 | 304SS | 22ga | 2.25 | 0.72 | 3151-0600-200000 | 8010003735 |
| 7 | 304SS | 22ga | 2 | 0.92 | 3151-0700-200000 | 8010003736 |
| 8 | 304SS | 22ga | 2 | 1.1 | 3151-0800-200000 | 8010003737 |
| 9 | 304SS | 22ga | 2 | 1.4 | 3151-0900-200000 | 8010003738 |
| 10 | 304SS | 22ga | 2 | 1.65 | 3151-1000-200000 | 8010003730 |
| 11 | 304SS | 22ga | 2 | 1.85 | 3151-1100-200000 | 8010003731 |
| 12 | 304SS | 22ga | 1.88 | 2.05 | 3151-1200-200000 | 8010003732 |
| 13 | 304SS | 20ga | 1.88 | 2.45 | 3151-1300-200000 | 8010003718 |
| 14 | 304SS | 20ga | 1.88 | 3.1 | 3151-1400-200000 | 8010003719 |
| 15 | 304SS | 20ga | 1.88 | 3.55 | 3151-1500-200000 | 8010003720 |
| 16 | 304SS | 20ga | 1.88 | 4 | 3151-1600-200000 | 8010003721 |
| 17 | 304SS | 20ga | 1.88 | 4.45 | 3151-1700-200000 | 8010003722 |
| 18 | 304SS | 20ga | 1.88 | 4.9 | 3151-1800-200000 | 8010003723 |
| 19 | 304SS | 20ga | 1.88 | 5.2 | 3151-1900-200000 | 8010003724 |
| 20 | 304SS | 20ga | 1.88 | 5.45 | 3151-2000-200000 | 8010003725 |
| 21 | 304SS | 20ga | 1.88 | 5.9 | 3151-2100-200000 | 8010003726 |
| 22 | 304SS | 20ga | 1.88 | 6.3 | 3151-2200-200000 | 8010003727 |
| 23 | 304SS | 20ga | 1.88 | 7.1 | 3151-2300-200000 | 8010003728 |
| 24 | 304SS | 20ga | 1.88 | 7.9 | 3151-2400-200000 | 8010003729 |
