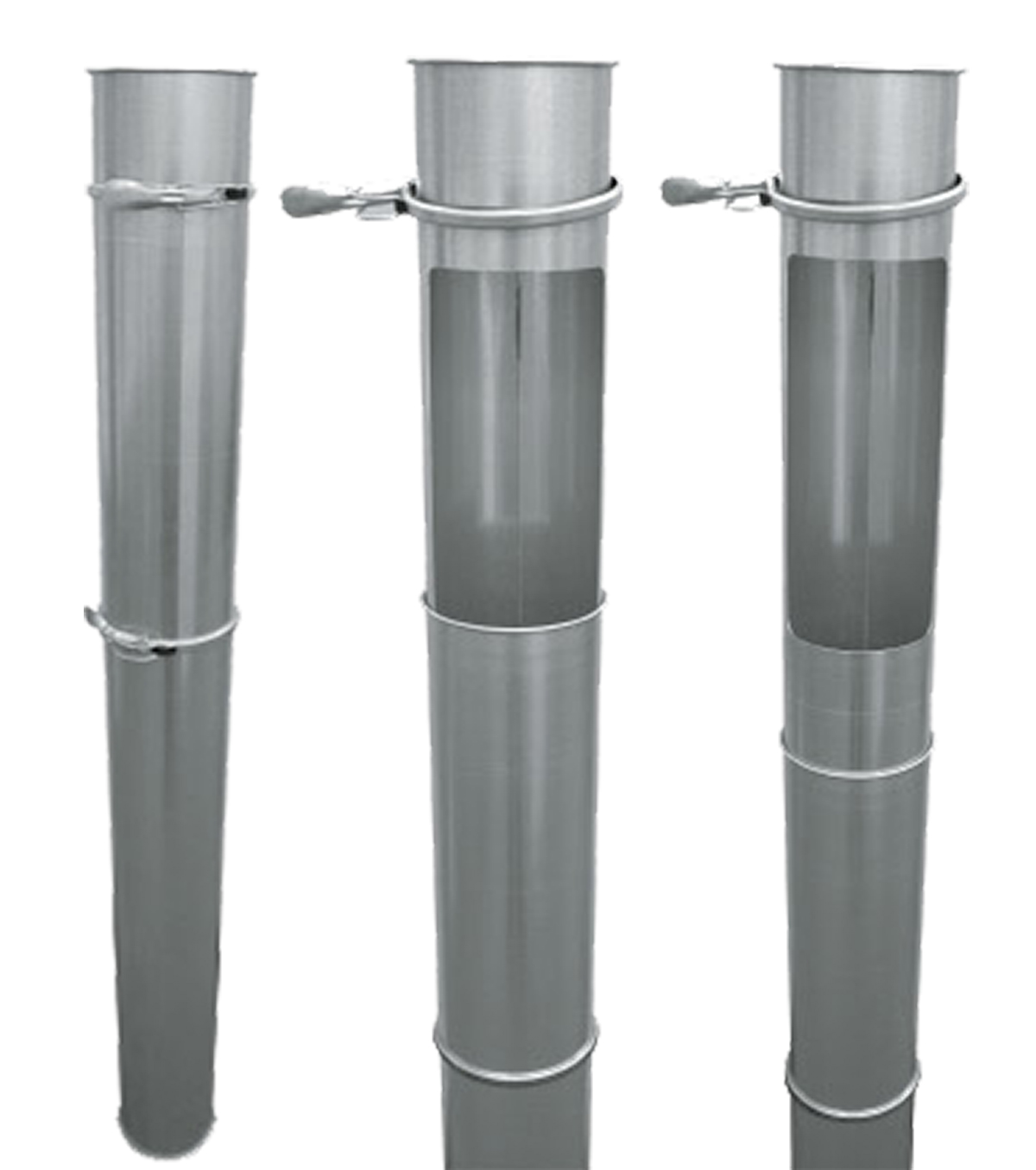

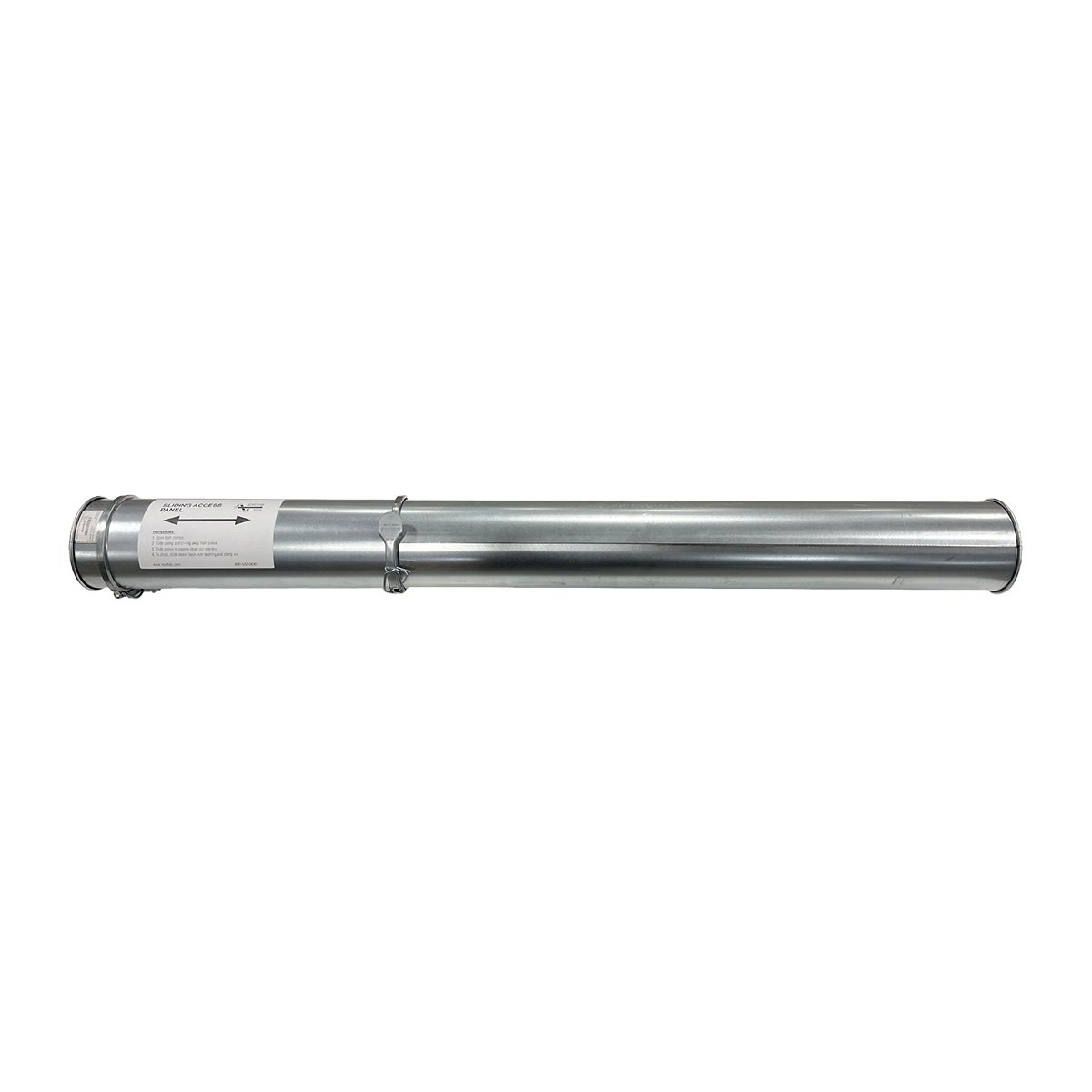

QF Sliding Access Panel

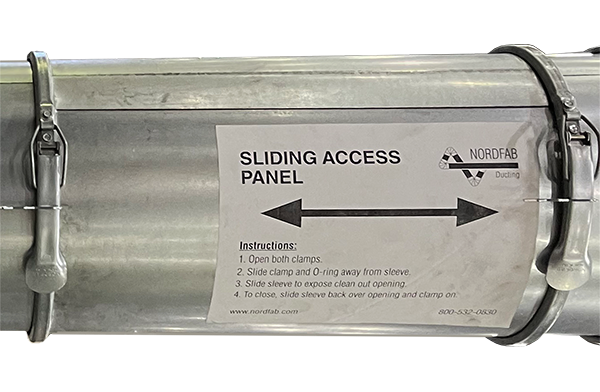

Allows access without removal of pipe.

Product length equals nominal pipe length, and cannot be made shorter than 36".

6”-24” units have a 7” x 14” access hole.

• Available in Galvanized and 304SS (as shown below) or optional 316SS or carbon steel
• Available with flanged ends in diameters up to 24", and other various end types

Contact Nordfab or your local Nordfab dealer for assistance with larger sizes and material / end type options.

ø A in Material T mm Length (in) Weight (lbs) Legacy Art. Nr. Art. No.
6 Galv 22ga 3103-0600-100000‍ 8010005103‍
7 Galv 22ga 3103-0700-100000‍ 8010005104‍
8 Galv 22ga 3103-0800-100000‍ 8010005105‍
9 Galv 22ga 3103-0900-100000‍ 8010005106‍
10 Galv 22ga 3103-1000-100000‍ 8010005100‍
11 Galv 22ga 3103-1100-100000‍ 8010005101‍
12 Galv 22ga 3103-1200-100000‍ 8010005102‍
13 Galv 20ga 3103-1300-100000‍ 8010005091‍
14 Galv 20ga 3103-1400-100000‍ 8010005092‍
15 Galv 20ga 3103-1500-100000‍ 8010005093‍
16 Galv 20ga 3103-1600-100000‍ 8010005094‍
17 Galv 20ga 3103-1700-100000‍ 8010005095‍
18 Galv 20ga 3103-1800-100000‍ 8010005096‍
20 Galv 20ga 3103-2000-100000‍ 8010005097‍
22 Galv 20ga 3103-2200-100000‍ 8010005098‍
24 Galv 20ga 3103-2400-100000‍ 8010005099‍
6 304SS 22ga 3103-0600-200000‍ 8010005087‍
7 304SS 22ga 3103-0700-200000‍ 8010005088‍
8 304SS 22ga 3103-0800-200000‍ 8010005089‍
9 304SS 22ga 3103-0900-200000‍ 8010005090‍
10 304SS 22ga 3103-1000-200000‍ 8010005084‍
11 304SS 22ga 3103-1100-200000‍ 8010005085‍
12 304SS 22ga 3103-1200-200000‍ 8010005086‍
13 304SS 20ga 3103-1300-200000‍ 8010005075‍
14 304SS 20ga 3103-1400-200000‍ 8010005076‍
15 304SS 20ga 3103-1500-200000‍ 8010005077‍
16 304SS 20ga 3103-1600-200000‍ 8010005078‍
17 304SS 20ga 3103-1700-200000‍ 8010005079‍
18 304SS 20ga 3103-1800-200000‍ 8010005080‍
20 304SS 20ga 3103-2000-200000‍ 8010005081‍
22 304SS 20ga 3103-2200-200000‍ 8010005082‍
24 304SS 20ga 3103-2400-200000‍ 8010005083‍
