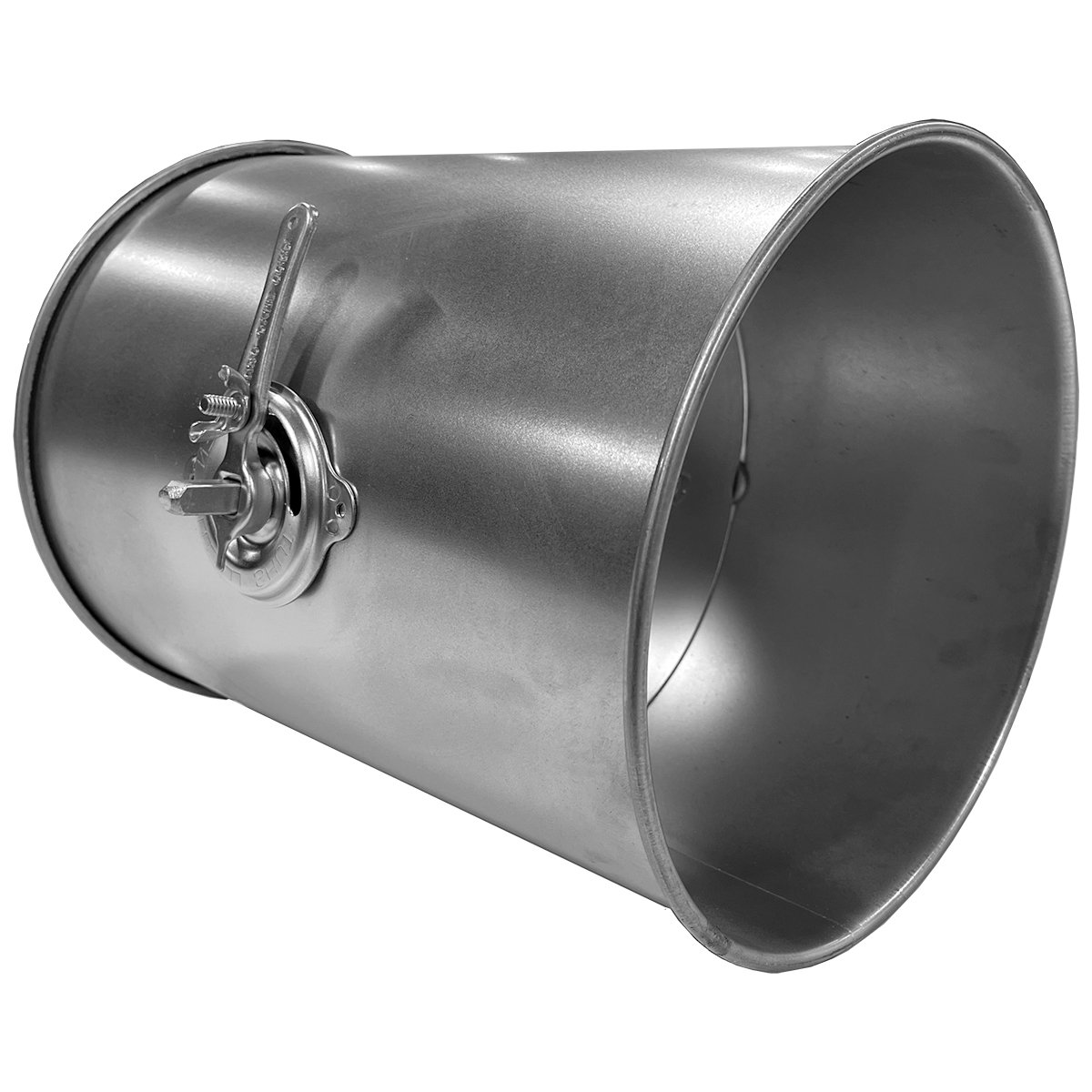

QF Butterfly Valve

A standard locking quadrant handle enables users to regulate air volumes in clean air applications.

For use only in clean air applications.

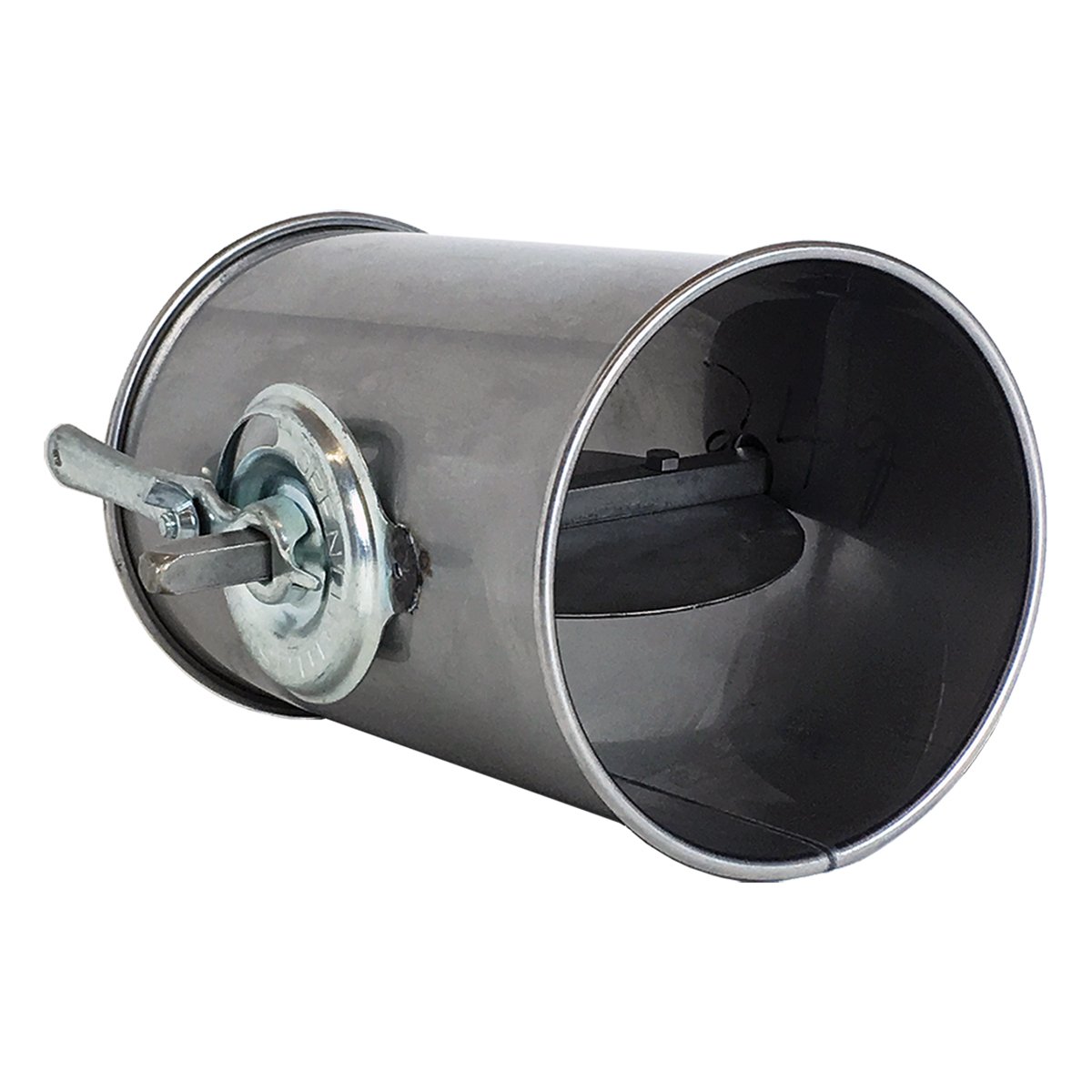

• Available in Galvanized and 304SS (as shown below) or optional 316SS or carbon steel
• Available with flanged ends in diameters up to 24", and other various end types
• Optional gauges 20, 18 and 16

Contact Nordfab or your local Nordfab dealer for assistance with larger sizes and material / gauge options.

ø A in Material T mm Length (in) Weight (lbs) Legacy Art. Nr. Art. No.
3 Galv 22ga 3208-0300-100000‍ 8010005257‍
4 Galv 22ga 3208-0400-100000‍ 8010005258‍
5 Galv 22ga 3208-0500-100000‍ 8010005259‍
6 Galv 22ga 3208-0600-100000‍ 8010005260‍
7 Galv 22ga 3208-0700-100000‍ 8010005261‍
8 Galv 22ga 3208-0800-100000‍ 8010005262‍
9 Galv 22ga 3208-0900-100000‍ 8010005263‍
10 Galv 22ga 3208-1000-100000‍ 8010005256‍
11 Galv 20ga 3208-1100-100000‍ 8010005242‍
12 Galv 20ga 3208-1200-100000‍ 8010005243‍
13 Galv 20ga 3208-1300-100000‍ 8010005244‍
14 Galv 20ga 3208-1400-100000‍ 8010005245‍
15 Galv 20ga 3208-1500-100000‍ 8010005246‍
16 Galv 20ga 3208-1600-100000‍ 8010005247‍
17 Galv 20ga 3208-1700-100000‍ 8010005248‍
18 Galv 20ga 3208-1800-100000‍ 8010005249‍
19 Galv 20ga 3208-1900-100000‍ 8010005250‍
20 Galv 20ga 3208-2000-100000‍ 8010005251‍
21 Galv 20ga 3208-2100-100000‍ 8010005252‍
22 Galv 20ga 3208-2200-100000‍ 8010005253‍
23 Galv 20ga 3208-2300-100000‍ 8010005254‍
24 Galv 20ga 3208-2400-100000‍ 8010005255‍
3 304SS 22ga 3208-0300-200000‍ 8010005235‍
4 304SS 22ga 3208-0400-200000‍ 8010005236‍
5 304SS 22ga 3208-0500-200000‍ 8010005237‍
6 304SS 22ga 3208-0600-200000‍ 8010005238‍
7 304SS 22ga 3208-0700-200000‍ 8010005239‍
8 304SS 22ga 3208-0800-200000‍ 8010005240‍
9 304SS 22ga 3208-0900-200000‍ 8010005241‍
10 304SS 22ga 3208-1000-200000‍ 8010005234‍
11 304SS 20ga 3208-1100-200000‍ 8010005220‍
12 304SS 20ga 3208-1200-200000‍ 8010005221‍
13 304SS 20ga 3208-1300-200000‍ 8010005222‍
14 304SS 20ga 3208-1400-200000‍ 8010005223‍
15 304SS 20ga 3208-1500-200000‍ 8010005224‍
16 304SS 20ga 3208-1600-200000‍ 8010005225‍
17 304SS 20ga 3208-1700-200000‍ 8010005226‍
18 304SS 20ga 3208-1800-200000‍ 8010005227‍
19 304SS 20ga 3208-1900-200000‍ 8010005228‍
20 304SS 20ga 3208-2000-200000‍ 8010005229‍
21 304SS 20ga 3208-2100-200000‍ 8010005230‍
22 304SS 20ga 3208-2200-200000‍ 8010005231‍
23 304SS 20ga 3208-2300-200000‍ 8010005232‍
24 304SS 20ga 3208-2400-200000‍ 8010005233‍
