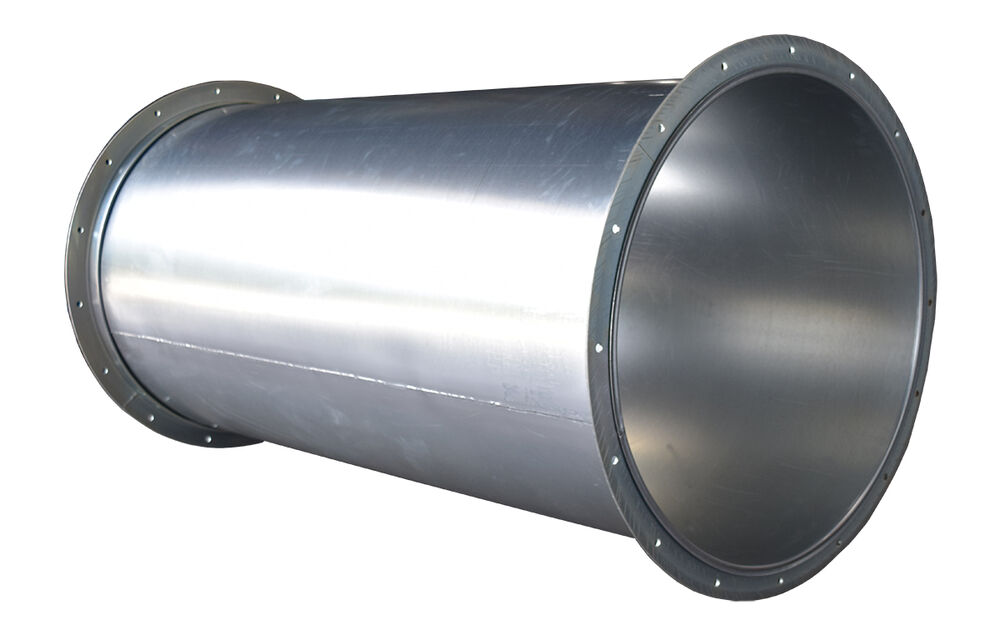

Flanged Pipe 16ga

Nordfab 16 gauge Flanged Duct Pipe is for applications requiring pipe in sizes greater than 24″ diameter or pipe with flanged connections.

The rotational Angle Flange is retained by a Van Stone lip on the pipe end. Flange fully welded upon request.

Use with our Angle Flange Adapter for quick connections to QF pipe and fittings.

Angle Flange Gaskets available.

• Available in Galvanized and 304SS (as shown below) or optional 316SS or carbon steel
• Available with QF ends in diameters up to 24", and other various end types
• Optional gauges 22, 20, 18, 14, 12 and 10

Contact Nordfab or your local Nordfab dealer for assistance with larger sizes and material / gauge options.

Request a Quote



Download our Duct Pipe Product Data sheet

Learn more about the benefits and availability of heavy gauge ducting from Nordfab

ø A in Material T mm Length (in) Weight (lbs) Legacy Item No. Item No.
8 Galv 16ga 3201-0816-100000‍ 8040207043‍
9 Galv 16ga 3201-0916-100000‍ 8040207044‍
10 Galv 16ga 3201-1016-100000‍ 8040207045‍
11 Galv 16ga 3201-1116-100000‍ 8040207046‍
12 Galv 16ga 3201-1216-100000‍ 8040207047‍
13 Galv 16ga 3201-1316-100000‍ 8040207048‍
14 Galv 16ga 3201-1416-100000‍ 8040207049‍
15 Galv 16ga 3201-1516-100000‍ 8040207050‍
16 Galv 16ga 3201-1616-100000‍ 8040207051‍
17 Galv 16ga 3201-1716-100000‍ 8040207052‍
18 Galv 16ga 3201-1816-100000‍ 8040207053‍
19 Galv 16ga 3201-1916-100000‍ 8040207054‍
20 Galv 16ga 3201-2016-100000‍ 8040207055‍
21 Galv 16ga 3201-2116-100000‍ 8040207056‍
22 Galv 16ga 3201-2216-100000‍ 8040207057‍
23 Galv 16ga 3201-2316-100000‍ 8040207058‍
24 Galv 16ga 3201-2416-100000‍ 8040207059‍
26 Galv 16ga 3201-2616-100000‍ 8040207060‍
28 Galv 16ga 3201-2816-100000‍ 8040207061‍
30 Galv 16ga 3201-3016-100000‍ 8040207062‍
32 Galv 16ga 3201-3216-100000‍ 8040207063‍
34 Galv 16ga 3201-3416-100000‍ 8040207064‍
36 Galv 16ga 3201-3616-100000‍ 8040207065‍
38 Galv 16ga 3201-3816-100000‍ 8040207066‍
40 Galv 16ga 3201-4016-100000‍ 8040207067‍
8 304SS 16ga 3201-0816-200000‍ 8040207068‍
9 304SS 16ga 3201-0916-200000‍ 8040207069‍
10 304SS 16ga 3201-1016-200000‍ 8040207070‍
11 304SS 16ga 3201-1116-200000‍ 8040207071‍
12 304SS 16ga 3201-1216-200000‍ 8040207072‍
13 304SS 16ga 3201-1316-200000‍ 8040207073‍
14 304SS 16ga 3201-1416-200000‍ 8040207074‍
15 304SS 16ga 3201-1516-200000‍ 8040207075‍
16 304SS 16ga 3201-1616-200000‍ 8040207076‍
17 304SS 16ga 3201-1716-200000‍ 8040207077‍
18 304SS 16ga 3201-1816-200000‍ 8040207078‍
19 304SS 16ga 3201-1916-200000‍ 8040207079‍
20 304SS 16ga 3201-2016-200000‍ 8040207080‍
21 304SS 16ga 3201-2116-200000‍ 8040207081‍
22 304SS 16ga 3201-2216-200000‍ 8040207082‍
23 304SS 16ga 3201-2316-200000‍ 8040207083‍
24 304SS 16ga 3201-2416-200000‍ 8040207084‍
26 304SS 16ga 3201-2616-200000‍ 8040207085‍
28 304SS 16ga 3201-2816-200000‍ 8040207086‍
30 304SS 16ga 3201-3016-200000‍ 8040207087‍
32 304SS 16ga 3201-3216-200000‍ 8040207088‍
34 304SS 16ga 3201-3416-200000‍ 8040207089‍
36 304SS 16ga 3201-3616-200000‍ 8040207090‍
38 304SS 16ga 3201-3816-200000‍ 8040207091‍
40 304SS 16ga 3201-4016-200000‍ 8040207092‍
