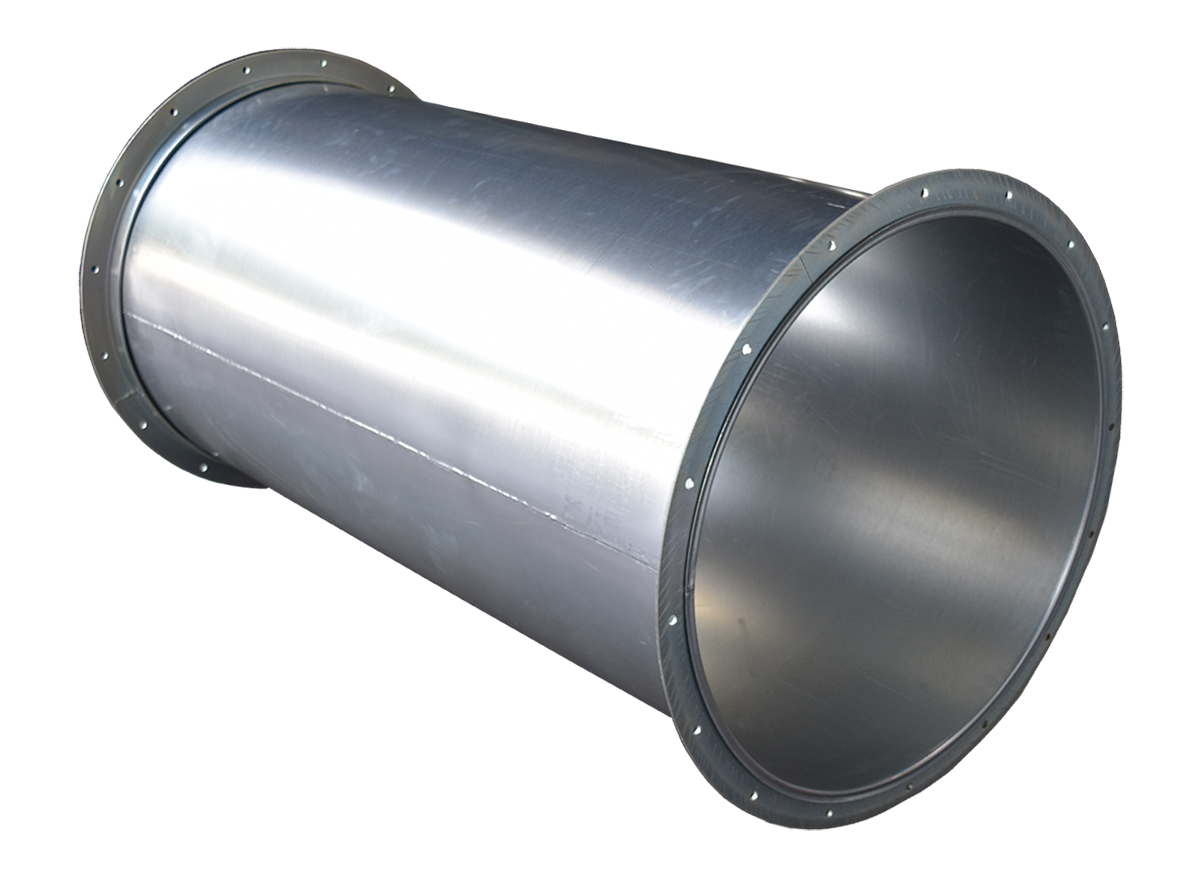

Flanged Pipe 14ga

14 Gauge Pipe has a plasma welded seam which provides a leak-free seal. Elimination of air leakage makes a dust collection system more efficient, providing savings on energy costs.

Nordfab’s 14 Gauge Pipe with flanged ends is supplied standard with Angle Flanges attached loosely (so flanges are easily rotated for bolt alignment), retained via a 5/8″ vanstone lip. Flange can be fully welded upon request.

• Available in Galvanized (as shown below)
• Available with QF ends in diameters up to 24", and other various end types
• Optional gauges 22, 20, 18, 16, 12 and 10

Contact Nordfab or your local Nordfab dealer for assistance with larger sizes and material / gauge options.

Request a Quote



Download our Duct Pipe Product Data sheet

Learn more about the benefits and availability of heavy gauge ducting from Nordfab

ø A in Material T mm Length (in) Weight (lbs) Legacy Item No. Item No.
8 Galv 14ga 4201-0800-100000‍ 8040207110‍
9 Galv 14ga 4201-0900-100000‍ 8040207111‍
10 Galv 14ga 4201-1000-100000‍ 8040207112‍
11 Galv 14ga 4201-1100-100000‍ 8040207113‍
12 Galv 14ga 4201-1200-100000‍ 8040207114‍
13 Galv 14ga 4201-1300-100000‍ 8040207115‍
14 Galv 14ga 4201-1400-100000‍ 8040207116‍
15 Galv 14ga 4201-1500-100000‍ 8040207117‍
16 Galv 14ga 4201-1600-100000‍ 8040207118‍
17 Galv 14ga 4201-1700-100000‍ 8040207119‍
18 Galv 14ga 4201-1800-100000‍ 8040207120‍
19 Galv 14ga 4201-1900-100000‍ 8040207121‍
20 Galv 14ga 4201-2000-100000‍ 8040207122‍
21 Galv 14ga 4201-2100-100000‍ 8040207123‍
22 Galv 14ga 4201-2200-100000‍ 8040207124‍
23 Galv 14ga 4201-2300-100000‍ 8040207125‍
24 Galv 14ga 4201-2400-100000‍ 8040207126‍
26 Galv 14ga 4201-2600-100000‍ 8040207127‍
28 Galv 14ga 4201-2800-100000‍ 8040207128‍
30 Galv 14ga 4201-3000-100000‍ 8040207129‍
32 Galv 14ga 4201-3200-100000‍ 8040207130‍
34 Galv 14ga 4201-3400-100000‍ 8040207131‍
36 Galv 14ga 4201-3600-100000‍ 8040207132‍
38 Galv 14ga 4201-3800-100000‍ 8040207133‍
40 Galv 14ga 4201-4000-100000‍ 8040207134‍
42 Galv 14ga 4201-4200-100000‍ 8040207135‍
44 Galv 14ga 4201-4400-100000‍ 8040207136‍
46 Galv 14ga 4201-4600-100000‍ 8040207137‍
48 Galv 14ga 4201-4800-100000‍ 8040207138‍
50 Galv 14ga 4201-5000-100000‍ 8040207139‍
