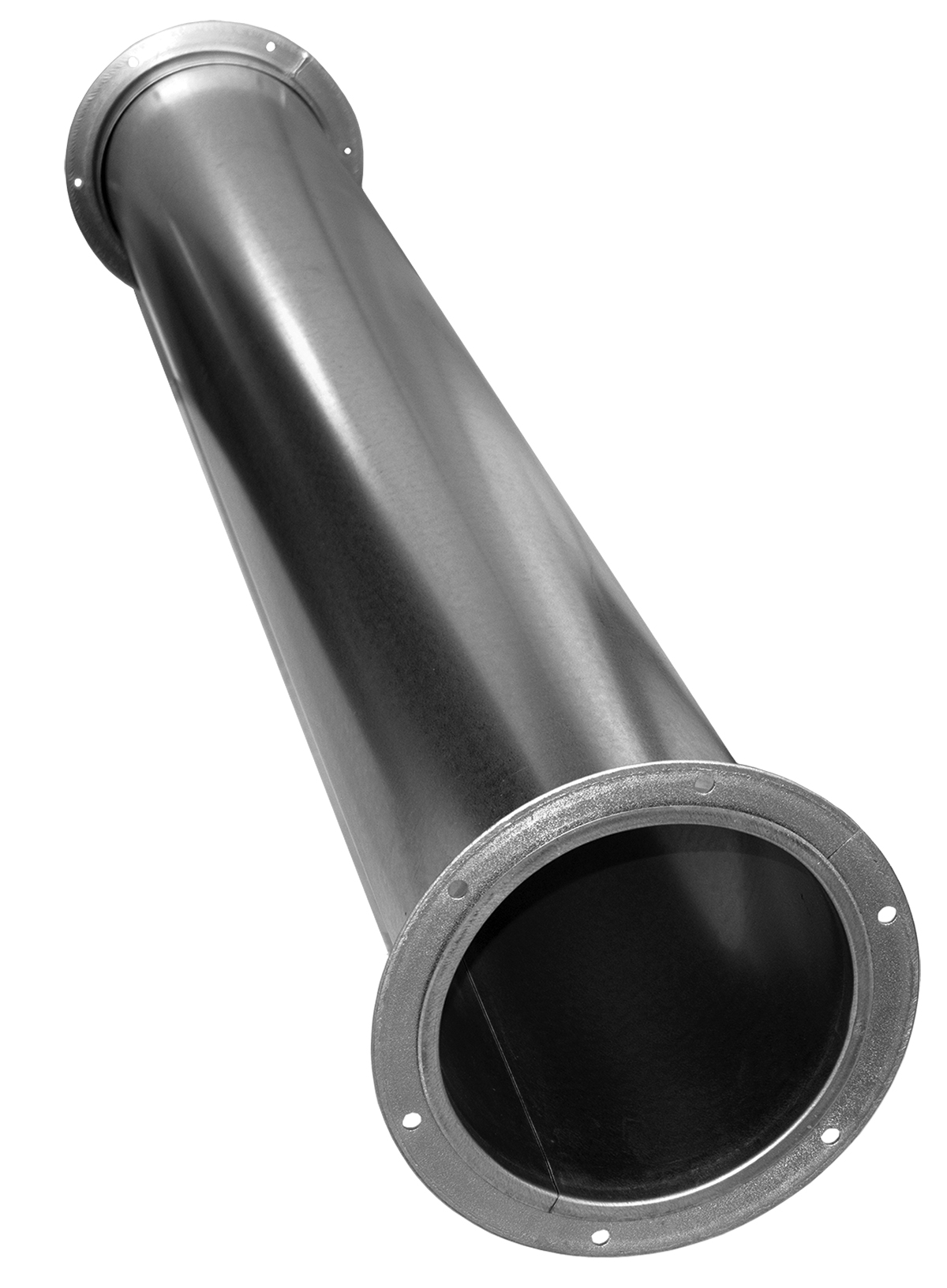

Flanged Pipe

Nordfab flanged duct pipe is for applications requiring pipe sizes greater than 24″ diameter or where flanged connections are required.

The rotational Angle Flanges on our Flanged Pipes are retained by Van Stone lips on the pipe ends.

Length is nominally 5′.

Angle Flange Gaskets available.

Use with our Angle Flange Adapter for quick connections to QF pipe.

• Available in Galvanized and 304SS (as shown below) or optional 316SS or carbon steel
• Available with QF ends in diameters up to 24", and other various end types
• Optional gauges 18, 16, 14, 12 and 10

Contact Nordfab or your local Nordfab dealer for assistance with larger sizes and material / gauge options.

Request a Quote



Download our Duct Pipe Product Data sheet

ø A in Material T mm Length (in) Weight (lbs) Legacy Item No. Item No.
3 Galv 22ga 3201-03LW-100000‍ 8040206827‍
4 Galv 22ga 3201-04LW-100000‍ 8040206828‍
5 Galv 22ga 3201-05LW-100000‍ 8040206829‍
6 Galv 22ga 3201-06LW-100000‍ 8040206830‍
7 Galv 22ga 3201-07LW-100000‍ 8040206831‍
8 Galv 22ga 3201-08LW-100000‍ 8040206832‍
9 Galv 22ga 3201-09LW-100000‍ 8040206833‍
10 Galv 22ga 3201-10LW-100000‍ 8040206834‍
11 Galv 22ga 3201-11LW-100000‍ 8040206835‍
12 Galv 22ga 3201-12LW-100000‍ 8040206836‍
13 Galv 20ga 3201-13LW-100000‍ 8040206837‍
14 Galv 20ga 3201-14LW-100000‍ 8040206838‍
15 Galv 20ga 3201-15LW-100000‍ 8040206839‍
16 Galv 20ga 3201-16LW-100000‍ 8040206840‍
17 Galv 20ga 3201-17LW-100000‍ 8040206841‍
18 Galv 20ga 3201-18LW-100000‍ 8040206842‍
19 Galv 20ga 3201-19LW-100000‍ 8040206843‍
20 Galv 20ga 3201-20LW-100000‍ 8040206844‍
21 Galv 20ga 3201-21LW-100000‍ 8040206845‍
22 Galv 20ga 3201-22LW-100000‍ 8040206846‍
23 Galv 20ga 3201-23LW-100000‍ 8040206847‍
24 Galv 20ga 3201-24LW-100000‍ 8040206848‍
3 304SS 22ga 3201-03LW-200000‍ 8040206849‍
4 304SS 22ga 3201-04LW-200000‍ 8040206850‍
5 304SS 22ga 3201-05LW-200000‍ 8040206851‍
6 304SS 22ga 3201-06LW-200000‍ 8040206852‍
7 304SS 22ga 3201-07LW-200000‍ 8040206853‍
8 304SS 22ga 3201-08LW-200000‍ 8040206854‍
9 304SS 22ga 3201-09LW-200000‍ 8040206855‍
10 304SS 22ga 3201-10LW-200000‍ 8040206856‍
11 304SS 22ga 3201-11LW-200000‍ 8040206857‍
12 304SS 22ga 3201-12LW-200000‍ 8040206858‍
13 304SS 20ga 3201-13LW-200000‍ 8040206859‍
14 304SS 20ga 3201-14LW-200000‍ 8040206860‍
15 304SS 20ga 3201-15LW-200000‍ 8040206861‍
16 304SS 20ga 3201-16LW-200000‍ 8040206862‍
17 304SS 20ga 3201-17LW-200000‍ 8040206863‍
18 304SS 20ga 3201-18LW-200000‍ 8040206864‍
19 304SS 20ga 3201-19LW-200000‍ 8040206865‍
20 304SS 20ga 3201-20LW-200000‍ 8040206866‍
21 304SS 20ga 3201-21LW-200000‍ 8040206867‍
22 304SS 20ga 3201-22LW-200000‍ 8040206868‍
23 304SS 20ga 3201-23LW-200000‍ 8040206869‍
24 304SS 20ga 3201-24LW-200000‍ 8040206870‍
