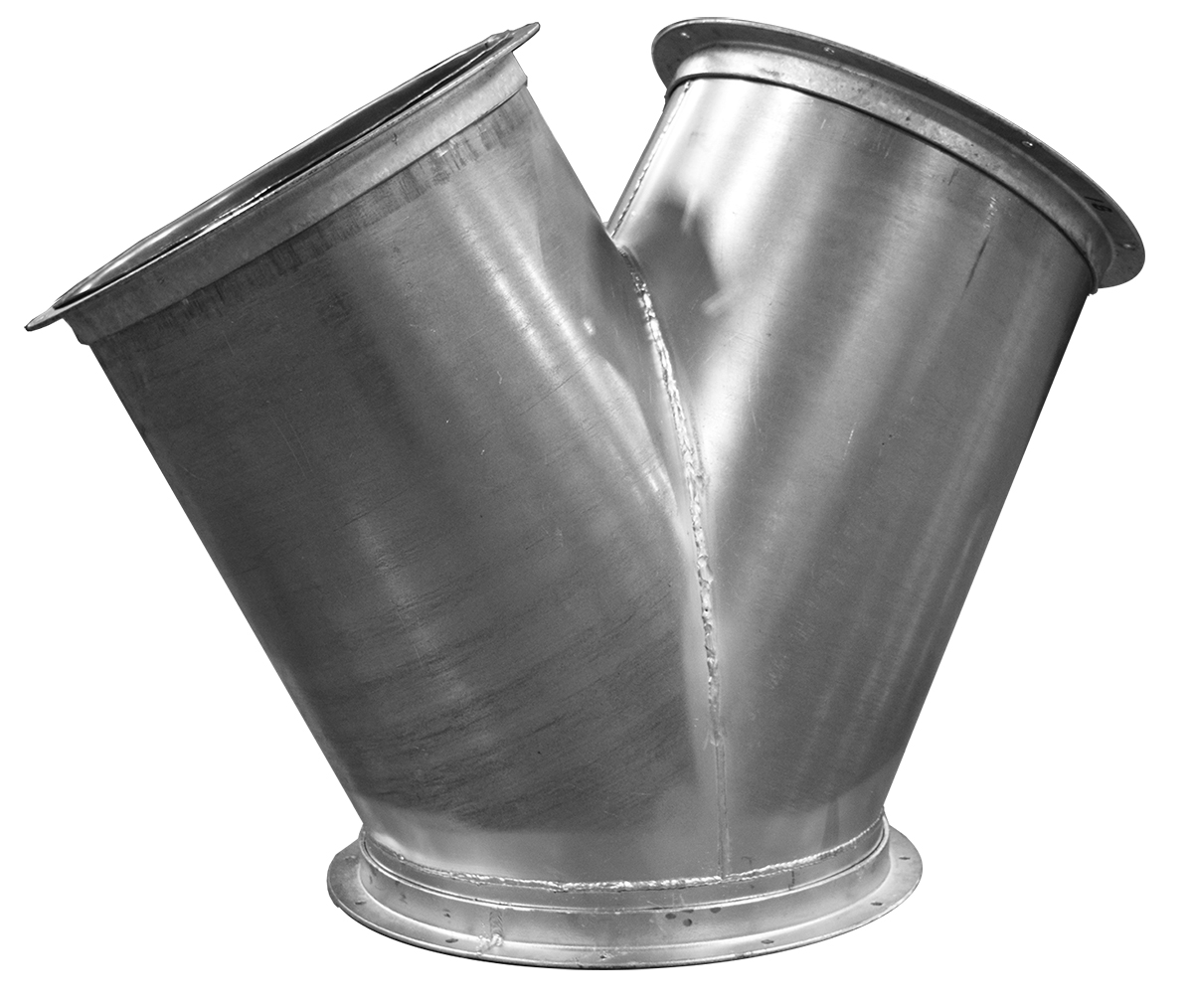

Flanged Y Branch 90°

Nordfab Duct Branches in Y shape (sometimes called “true wyes” or "breeches" branches) are standard 60º between legs, optional 90º (90º item numbers shown below)

Flanged Y Branches are standard with industry-standard Angle Flanges on both ends, the flanges are retained via a vanstone lip so that bolt holes can easily be aligned with those on existing flanged connections.

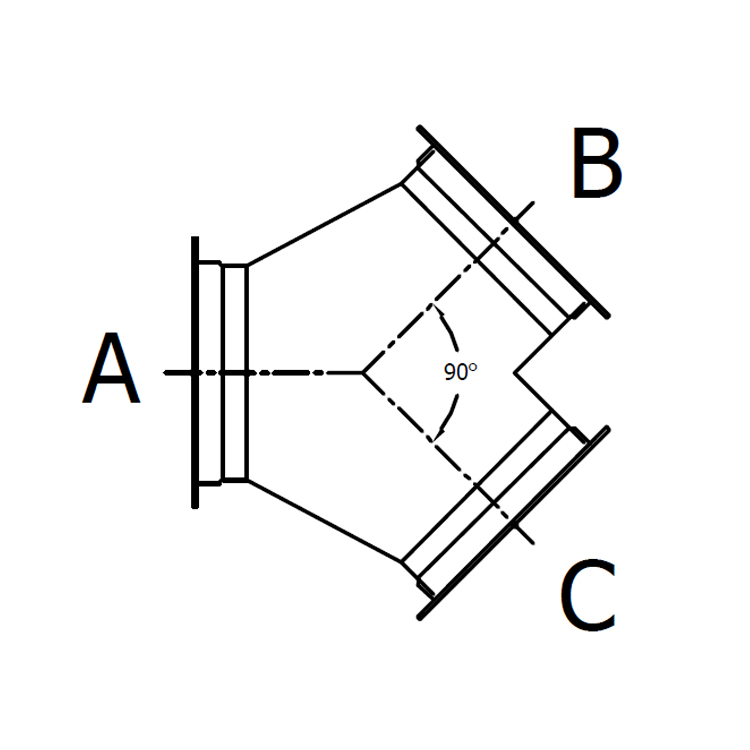

⦁ When ordering, specify A, B, C. Both B & C each must be at least 50% of A, with B or C being at least 80% of the opposite leg.
⦁ Available in galvanized steel and 304SS (as shown below) or optional 316SS or carbon steel
⦁ Available with QF ends in diameters up to 24", flanged diameters up to 72", and other end types
⦁ Optional gauges 18, 16, 14, 12 and 10
⦁ Flange gaskets available

Contact Nordfab or your local Nordfab dealer for assistance with branch configurations not shown below, optional end types, larger sizes, and material / gauge options.
