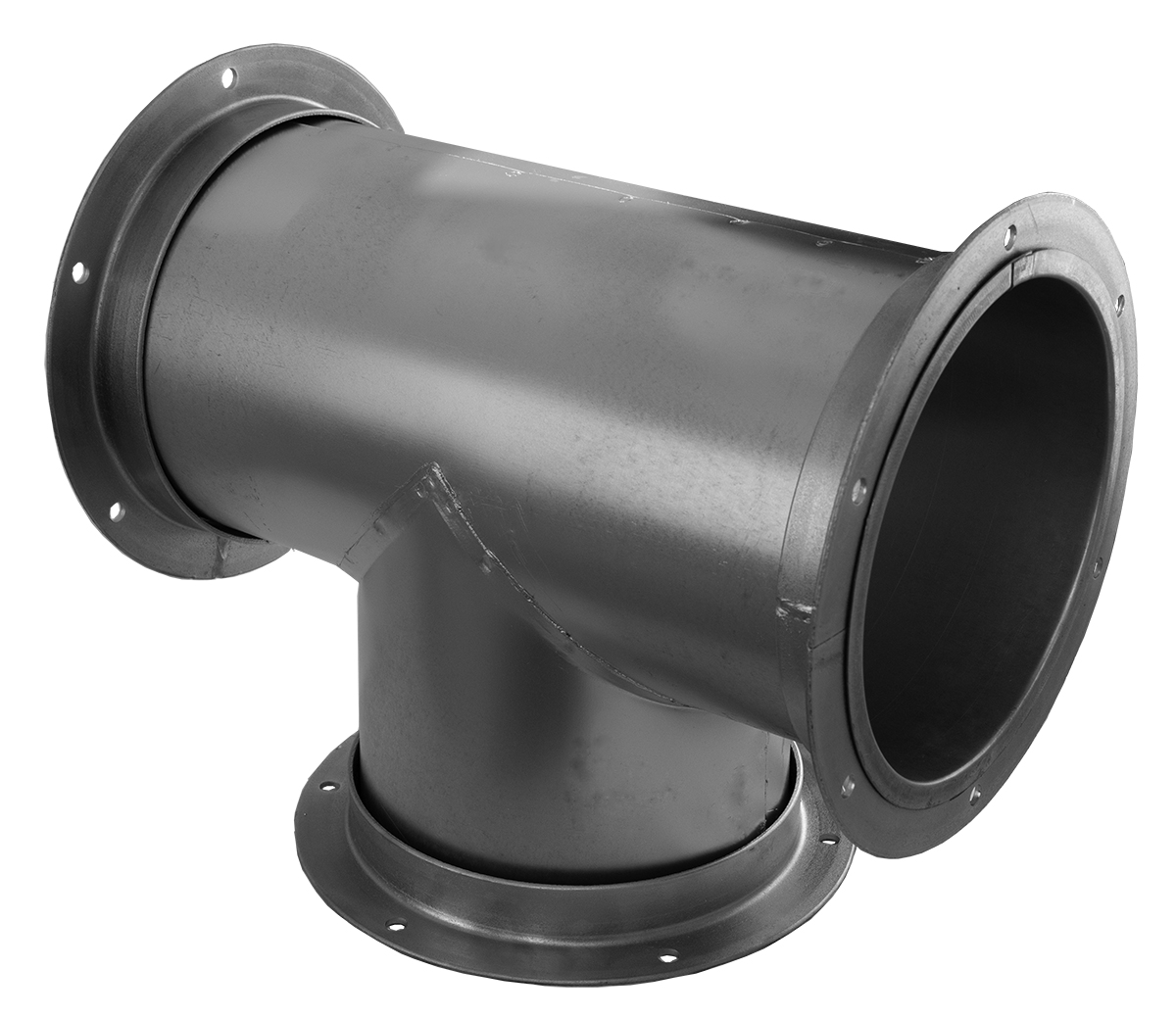

Flanged Tee Branch 14 Gauge

Nordfab Flanged T-branch duct fittings in 14 Gauge have leak-free, solid welded seams. Elimination of air leakage makes a dust collection system more efficient, providing savings on energy costs.

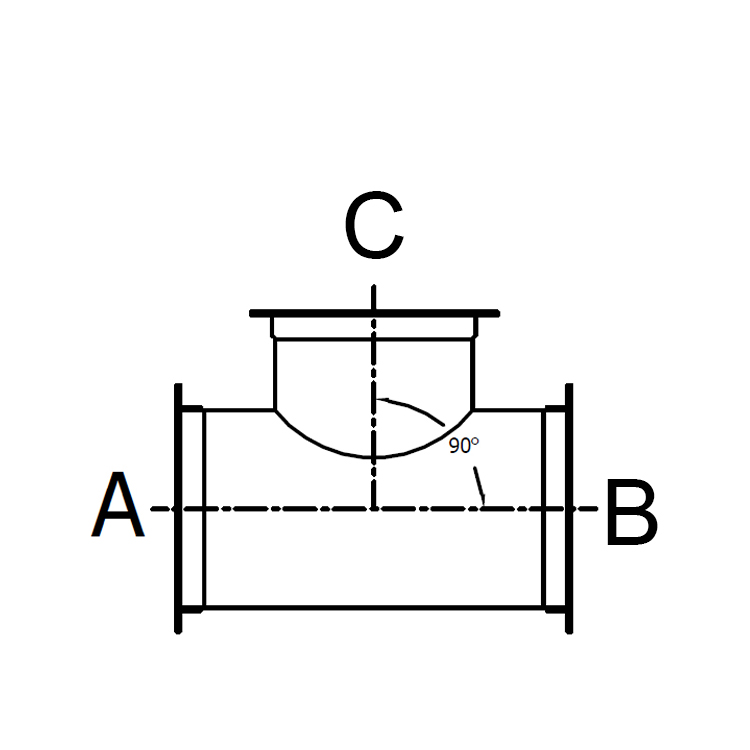

When ordering tees, specify A, C. All branches priced by large end.

The two “A” ends must be the same dimension, however “C” must be equal to or smaller than the “A” dimension.

Use the following formula to determine length: L = C + 8".

• Available in Galvanized (as shown below)
• Available with QF ends in diameters up to 24", and other various end types
• Optional gauges 22, 20, 18, 16, 12 and 10

Contact Nordfab or your local Nordfab dealer for assistance with larger sizes and material / gauge options.

ø A in ø B (in) ø C (in) Material T mm Weight (lbs) Legacy Art. Nr. Art. No.
8 8 6 Galv 14ga 4827-0806-100000‍ 8040305911‍
8 8 7 Galv 14ga 4827-0807-100000‍ 8040305912‍
8 8 8 Galv 14ga 4827-0808-100000‍ 8040305913‍
9 9 6 Galv 14ga 4827-0906-100000‍ 8040305914‍
9 9 7 Galv 14ga 4827-0907-100000‍ 8040305915‍
9 9 8 Galv 14ga 4827-0908-100000‍ 8040305916‍
9 9 9 Galv 14ga 4827-0909-100000‍ 8040305917‍
10 10 6 Galv 14ga 4827-1006-100000‍ 8040305918‍
10 10 7 Galv 14ga 4827-1007-100000‍ 8040305919‍
10 10 8 Galv 14ga 4827-1008-100000‍ 8040305920‍
10 10 9 Galv 14ga 4827-1009-100000‍ 8040305921‍
10 10 10 Galv 14ga 4827-1010-100000‍ 8040305922‍
11 11 6 Galv 14ga 4827-1106-100000‍ 8040305923‍
11 11 7 Galv 14ga 4827-1107-100000‍ 8040305924‍
11 11 8 Galv 14ga 4827-1108-100000‍ 8040305925‍
11 11 9 Galv 14ga 4827-1109-100000‍ 8040305926‍
11 11 10 Galv 14ga 4827-1110-100000‍ 8040305927‍
11 11 11 Galv 14ga 4827-1111-100000‍ 8040305928‍
12 12 6 Galv 14ga 4827-1206-100000‍ 8040305929‍
12 12 7 Galv 14ga 4827-1207-100000‍ 8040305930‍
12 12 8 Galv 14ga 4827-1208-100000‍ 8040305931‍
12 12 9 Galv 14ga 4827-1209-100000‍ 8040305932‍
12 12 10 Galv 14ga 4827-1210-100000‍ 8040305933‍
12 12 11 Galv 14ga 4827-1211-100000‍ 8040305934‍
12 12 12 Galv 14ga 4827-1212-100000‍ 8040305935‍
13 13 6 Galv 14ga 4827-1306-100000‍ 8040305936‍
13 13 7 Galv 14ga 4827-1307-100000‍ 8040305937‍
13 13 8 Galv 14ga 4827-1308-100000‍ 8040305938‍
13 13 9 Galv 14ga 4827-1309-100000‍ 8040305939‍
13 13 10 Galv 14ga 4827-1310-100000‍ 8040305940‍
13 13 11 Galv 14ga 4827-1311-100000‍ 8040305941‍
13 13 12 Galv 14ga 4827-1312-100000‍ 8040305942‍
13 13 13 Galv 14ga 4827-1313-100000‍ 8040305943‍
14 14 6 Galv 14ga 4827-1406-100000‍ 8040305944‍
14 14 7 Galv 14ga 4827-1407-100000‍ 8040305945‍
14 14 8 Galv 14ga 4827-1408-100000‍ 8040305946‍
14 14 9 Galv 14ga 4827-1409-100000‍ 8040305947‍
14 14 10 Galv 14ga 4827-1410-100000‍ 8040305948‍
14 14 11 Galv 14ga 4827-1411-100000‍ 8040305949‍
14 14 12 Galv 14ga 4827-1412-100000‍ 8040305950‍
14 14 13 Galv 14ga 4827-1413-100000‍ 8040305951‍
14 14 14 Galv 14ga 4827-1414-100000‍ 8040305952‍
15 15 6 Galv 14ga 4827-1506-100000‍ 8040305953‍
15 15 7 Galv 14ga 4827-1507-100000‍ 8040305954‍
15 15 8 Galv 14ga 4827-1508-100000‍ 8040305955‍
15 15 9 Galv 14ga 4827-1509-100000‍ 8040305956‍
15 15 10 Galv 14ga 4827-1510-100000‍ 8040305957‍
15 15 11 Galv 14ga 4827-1511-100000‍ 8040305958‍
15 15 12 Galv 14ga 4827-1512-100000‍ 8040305959‍
15 15 13 Galv 14ga 4827-1513-100000‍ 8040305960‍
15 15 14 Galv 14ga 4827-1514-100000‍ 8040305961‍
15 15 15 Galv 14ga 4827-1515-100000‍ 8040305962‍
16 16 6 Galv 14ga 4827-1606-100000‍ 8040305963‍
16 16 7 Galv 14ga 4827-1607-100000‍ 8040305964‍
16 16 8 Galv 14ga 4827-1608-100000‍ 8040305965‍
16 16 9 Galv 14ga 4827-1609-100000‍ 8040305966‍
16 16 10 Galv 14ga 4827-1610-100000‍ 8040305967‍
16 16 11 Galv 14ga 4827-1611-100000‍ 8040305968‍
16 16 12 Galv 14ga 4827-1612-100000‍ 8040305969‍
16 16 13 Galv 14ga 4827-1613-100000‍ 8040305970‍
16 16 14 Galv 14ga 4827-1614-100000‍ 8040305971‍
16 16 15 Galv 14ga 4827-1615-100000‍ 8040305972‍
16 16 16 Galv 14ga 4827-1616-100000‍ 8040305973‍
17 17 6 Galv 14ga 4827-1706-100000‍ 8040305974‍
17 17 7 Galv 14ga 4827-1707-100000‍ 8040305975‍
17 17 8 Galv 14ga 4827-1708-100000‍ 8040305976‍
17 17 9 Galv 14ga 4827-1709-100000‍ 8040305977‍
17 17 10 Galv 14ga 4827-1710-100000‍ 8040305978‍
17 17 11 Galv 14ga 4827-1711-100000‍ 8040305979‍
17 17 12 Galv 14ga 4827-1712-100000‍ 8040305980‍
17 17 13 Galv 14ga 4827-1713-100000‍ 8040305981‍
17 17 14 Galv 14ga 4827-1714-100000‍ 8040305982‍
17 17 15 Galv 14ga 4827-1715-100000‍ 8040305983‍
17 17 16 Galv 14ga 4827-1716-100000‍ 8040305984‍
17 17 17 Galv 14ga 4827-1717-100000‍ 8040305985‍
18 18 6 Galv 14ga 4827-1806-100000‍ 8040305986‍
18 18 7 Galv 14ga 4827-1807-100000‍ 8040305987‍
18 18 8 Galv 14ga 4827-1808-100000‍ 8040305988‍
18 18 9 Galv 14ga 4827-1809-100000‍ 8040305989‍
18 18 10 Galv 14ga 4827-1810-100000‍ 8040305990‍
18 18 11 Galv 14ga 4827-1811-100000‍ 8040305991‍
18 18 12 Galv 14ga 4827-1812-100000‍ 8040305992‍
18 18 13 Galv 14ga 4827-1813-100000‍ 8040305993‍
18 18 14 Galv 14ga 4827-1814-100000‍ 8040305994‍
18 18 15 Galv 14ga 4827-1815-100000‍ 8040305995‍
18 18 16 Galv 14ga 4827-1816-100000‍ 8040305996‍
18 18 17 Galv 14ga 4827-1817-100000‍ 8040305997‍
18 18 18 Galv 14ga 4827-1818-100000‍ 8040305998‍
19 19 6 Galv 14ga 4827-1906-100000‍ 8040305999‍
19 19 7 Galv 14ga 4827-1907-100000‍ 8040306000‍
19 19 8 Galv 14ga 4827-1908-100000‍ 8040306001‍
19 19 9 Galv 14ga 4827-1909-100000‍ 8040306002‍
19 19 10 Galv 14ga 4827-1910-100000‍ 8040306003‍
19 19 11 Galv 14ga 4827-1911-100000‍ 8040306004‍
19 19 12 Galv 14ga 4827-1912-100000‍ 8040306005‍
19 19 13 Galv 14ga 4827-1913-100000‍ 8040306006‍
19 19 14 Galv 14ga 4827-1914-100000‍ 8040306007‍
19 19 15 Galv 14ga 4827-1915-100000‍ 8040306008‍
19 19 16 Galv 14ga 4827-1916-100000‍ 8040306009‍
19 19 17 Galv 14ga 4827-1917-100000‍ 8040306010‍
19 19 18 Galv 14ga 4827-1918-100000‍ 8040306011‍
19 19 19 Galv 14ga 4827-1919-100000‍ 8040306012‍
20 20 6 Galv 14ga 4827-2006-100000‍ 8040306013‍
20 20 7 Galv 14ga 4827-2007-100000‍ 8040306014‍
20 20 8 Galv 14ga 4827-2008-100000‍ 8040306015‍
20 20 9 Galv 14ga 4827-2009-100000‍ 8040306016‍
20 20 10 Galv 14ga 4827-2010-100000‍ 8040306017‍
20 20 11 Galv 14ga 4827-2011-100000‍ 8040306018‍
20 20 12 Galv 14ga 4827-2012-100000‍ 8040306019‍
20 20 13 Galv 14ga 4827-2013-100000‍ 8040306020‍
20 20 14 Galv 14ga 4827-2014-100000‍ 8040306021‍
20 20 15 Galv 14ga 4827-2015-100000‍ 8040306022‍
20 20 16 Galv 14ga 4827-2016-100000‍ 8040306023‍
20 20 17 Galv 14ga 4827-2017-100000‍ 8040306024‍
20 20 18 Galv 14ga 4827-2018-100000‍ 8040306025‍
20 20 19 Galv 14ga 4827-2019-100000‍ 8040306026‍
20 20 20 Galv 14ga 4827-2020-100000‍ 8040306027‍
21 21 6 Galv 14ga 4827-2106-100000‍ 8040306028‍
21 21 7 Galv 14ga 4827-2107-100000‍ 8040306029‍
21 21 8 Galv 14ga 4827-2108-100000‍ 8040306030‍
21 21 9 Galv 14ga 4827-2109-100000‍ 8040306031‍
21 21 10 Galv 14ga 4827-2110-100000‍ 8040306032‍
21 21 11 Galv 14ga 4827-2111-100000‍ 8040306033‍
21 21 12 Galv 14ga 4827-2112-100000‍ 8040306034‍
21 21 13 Galv 14ga 4827-2113-100000‍ 8040306035‍
21 21 14 Galv 14ga 4827-2114-100000‍ 8040306036‍
21 21 15 Galv 14ga 4827-2115-100000‍ 8040306037‍
21 21 16 Galv 14ga 4827-2116-100000‍ 8040306038‍
21 21 17 Galv 14ga 4827-2117-100000‍ 8040306039‍
21 21 18 Galv 14ga 4827-2118-100000‍ 8040306040‍
21 21 19 Galv 14ga 4827-2119-100000‍ 8040306041‍
21 21 20 Galv 14ga 4827-2120-100000‍ 8040306042‍
21 21 21 Galv 14ga 4827-2121-100000‍ 8040306043‍
22 22 6 Galv 14ga 4827-2206-100000‍ 8040306044‍
22 22 7 Galv 14ga 4827-2207-100000‍ 8040306045‍
22 22 8 Galv 14ga 4827-2208-100000‍ 8040306046‍
22 22 9 Galv 14ga 4827-2209-100000‍ 8040306047‍
22 22 10 Galv 14ga 4827-2210-100000‍ 8040306048‍
22 22 11 Galv 14ga 4827-2211-100000‍ 8040306049‍
22 22 12 Galv 14ga 4827-2212-100000‍ 8040306050‍
22 22 13 Galv 14ga 4827-2213-100000‍ 8040306051‍
22 22 14 Galv 14ga 4827-2214-100000‍ 8040306052‍
22 22 15 Galv 14ga 4827-2215-100000‍ 8040306053‍
22 22 16 Galv 14ga 4827-2216-100000‍ 8040306054‍
22 22 17 Galv 14ga 4827-2217-100000‍ 8040306055‍
22 22 18 Galv 14ga 4827-2218-100000‍ 8040306056‍
22 22 19 Galv 14ga 4827-2219-100000‍ 8040306057‍
22 22 20 Galv 14ga 4827-2220-100000‍ 8040306058‍
22 22 21 Galv 14ga 4827-2221-100000‍ 8040306059‍
22 22 22 Galv 14ga 4827-2222-100000‍ 8040306060‍
23 23 6 Galv 14ga 4827-2306-100000‍ 8040306061‍
23 23 7 Galv 14ga 4827-2307-100000‍ 8040306062‍
23 23 8 Galv 14ga 4827-2308-100000‍ 8040306063‍
23 23 9 Galv 14ga 4827-2309-100000‍ 8040306064‍
23 23 10 Galv 14ga 4827-2310-100000‍ 8040306065‍
23 23 11 Galv 14ga 4827-2311-100000‍ 8040306066‍
23 23 12 Galv 14ga 4827-2312-100000‍ 8040306067‍
23 23 13 Galv 14ga 4827-2313-100000‍ 8040306068‍
23 23 14 Galv 14ga 4827-2314-100000‍ 8040306069‍
23 23 15 Galv 14ga 4827-2315-100000‍ 8040306070‍
23 23 16 Galv 14ga 4827-2316-100000‍ 8040306071‍
23 23 17 Galv 14ga 4827-2317-100000‍ 8040306072‍
23 23 18 Galv 14ga 4827-2318-100000‍ 8040306073‍
23 23 19 Galv 14ga 4827-2319-100000‍ 8040306074‍
23 23 20 Galv 14ga 4827-2320-100000‍ 8040306075‍
23 23 21 Galv 14ga 4827-2321-100000‍ 8040306076‍
23 23 22 Galv 14ga 4827-2322-100000‍ 8040306077‍
23 23 23 Galv 14ga 4827-2323-100000‍ 8040306078‍
24 24 6 Galv 14ga 4827-2406-100000‍ 8040306079‍
24 24 7 Galv 14ga 4827-2407-100000‍ 8040306080‍
24 24 8 Galv 14ga 4827-2408-100000‍ 8040306081‍
24 24 9 Galv 14ga 4827-2409-100000‍ 8040306082‍
24 24 10 Galv 14ga 4827-2410-100000‍ 8040306083‍
24 24 11 Galv 14ga 4827-2411-100000‍ 8040306084‍
24 24 12 Galv 14ga 4827-2412-100000‍ 8040306085‍
24 24 13 Galv 14ga 4827-2413-100000‍ 8040306086‍
24 24 14 Galv 14ga 4827-2414-100000‍ 8040306087‍
24 24 15 Galv 14ga 4827-2415-100000‍ 8040306088‍
24 24 16 Galv 14ga 4827-2416-100000‍ 8040306089‍
24 24 17 Galv 14ga 4827-2417-100000‍ 8040306090‍
24 24 18 Galv 14ga 4827-2418-100000‍ 8040306091‍
24 24 19 Galv 14ga 4827-2419-100000‍ 8040306092‍
24 24 20 Galv 14ga 4827-2420-100000‍ 8040306093‍
24 24 21 Galv 14ga 4827-2421-100000‍ 8040306094‍
24 24 22 Galv 14ga 4827-2422-100000‍ 8040306095‍
24 24 23 Galv 14ga 4827-2423-100000‍ 8040306096‍
24 24 24 Galv 14ga 4827-2424-100000‍ 8040306097‍
