Flanged Tap In

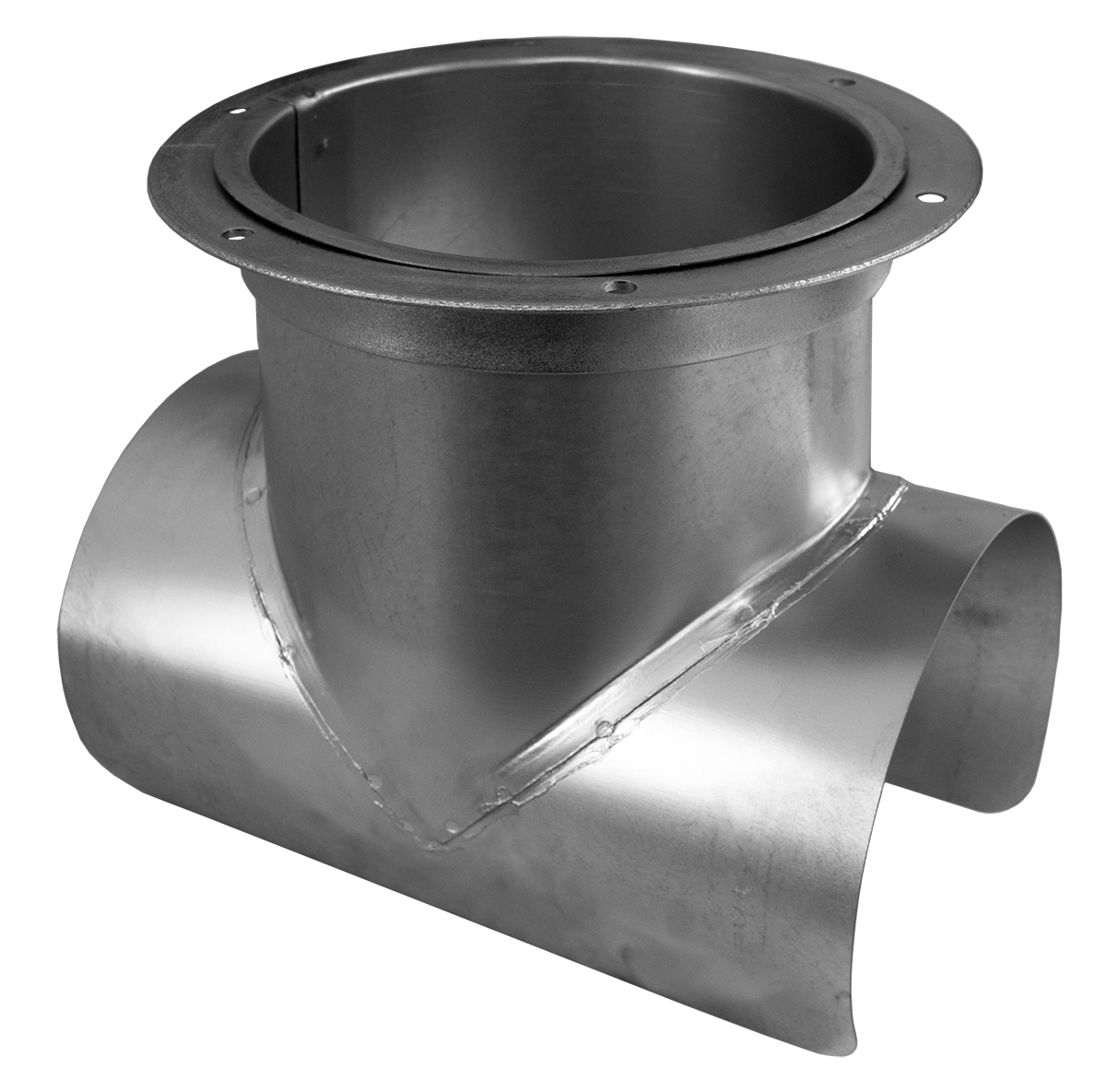

Flanged Tap In duct fittings are used to add new duct into existing lines of industrial ductwork.

Provided with industry-standard Angle Flanges on both ends, the flanges are retained via a vanstone lip so that bolt holes can easily be aligned with those on existing flanged connections.

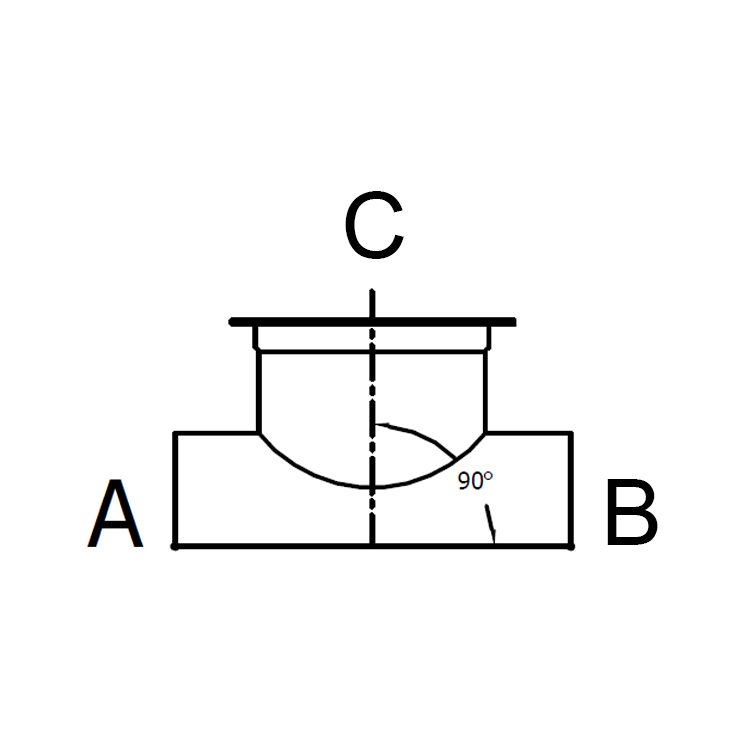

⦁ When ordering, specify A (existing pipe diameter) and C diameter.
⦁ Saddle length and width = 3" all directions from Branch Tube C
⦁ Available in galvanized steel and 304SS (as shown below) or optional 316SS or carbon steel
⦁ Available with QF ends in diameters up to 24", flanged diameters up to 72", and other end types
⦁ Other material gauges available include 18, 16, 14, 12 and 10
⦁ Flange gaskets available

Contact Nordfab or your local Nordfab dealer for assistance with branch configurations not shown below, optional end types, larger sizes, and material / gauge options.
