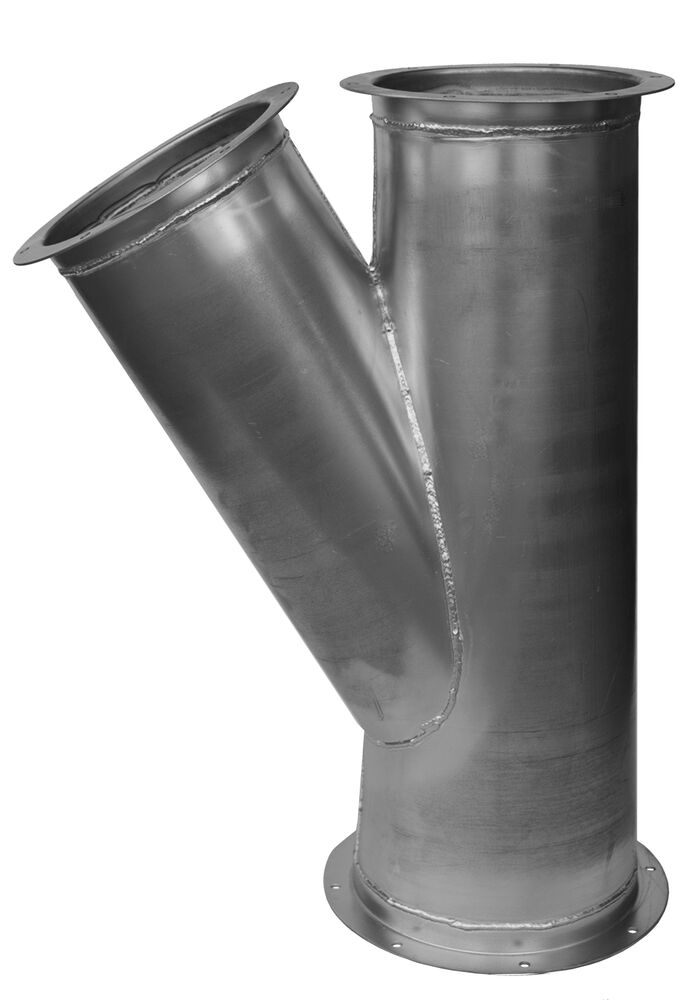

Flanged Branch 30°

Flanged Branches (sometimes called “wyes” or “laterals”) are standard with industry-standard Angle Flanges on both ends, the flanges are retained via a vanstone lip so that bolt holes can easily be aligned with those on existing flanged connections.

⦁ Standard 30º, available with 45° angle
⦁ When ordering, specify A, B, C.A – C ≥ C – B
⦁ Use the following formula to determine length: L = C X 2 + 15"
⦁ Use formula above to determine if a reducer is needed at C end.
⦁ Available in galvanized steel and 304SS (as shown below) or optional 316SS or carbon steel
⦁ Available with QF ends in diameters up to 24", flanged diameters up to 72", and other end types
⦁ Optional gauges 18, 16, 14, 12 and 10
⦁ Flange gaskets available

Contact Nordfab or your local Nordfab dealer for assistance with branch configurations not shown below, optional end types, larger sizes, and material / gauge options.
