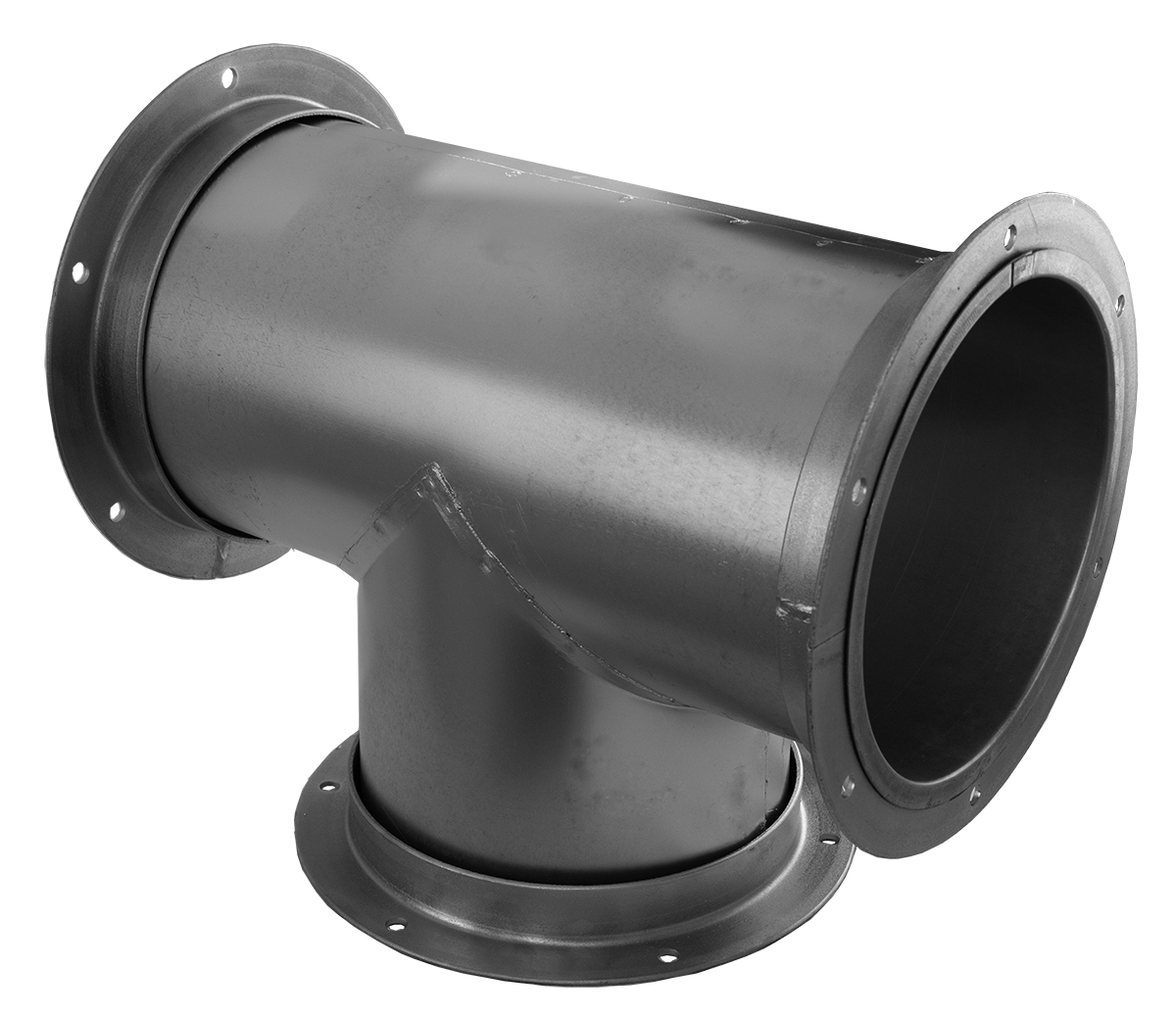

Flanged Tee Branch 16 Gauge

Flanged T-Branch duct fittings are standard with industry-standard Angle Flanges on both ends. The flanges are retained via a vanstone lip so that bolt holes can easily be aligned with those on existing flanged connections.

16 gauge steel material provides extra durability for high wear applications.

• When ordering tees, specify A, C. The two “A” ends must be the same dimension, however “B” must be equal to or smaller than the “A” dimension.
• Use the following formula to determine length: L = C + 8".
• Available in galvanized steel and 304SS
• Available with QF ends in diameters up to 24", flanged diameters up to 72", and other end types
• Other material gauges available include standard 22 and 20, 18, 14, 12 and 10
• Flange gaskets available

Contact Nordfab or your local Nordfab dealer for assistance with branch configurations not shown below, optional end types, larger sizes, and material / gauge options.
