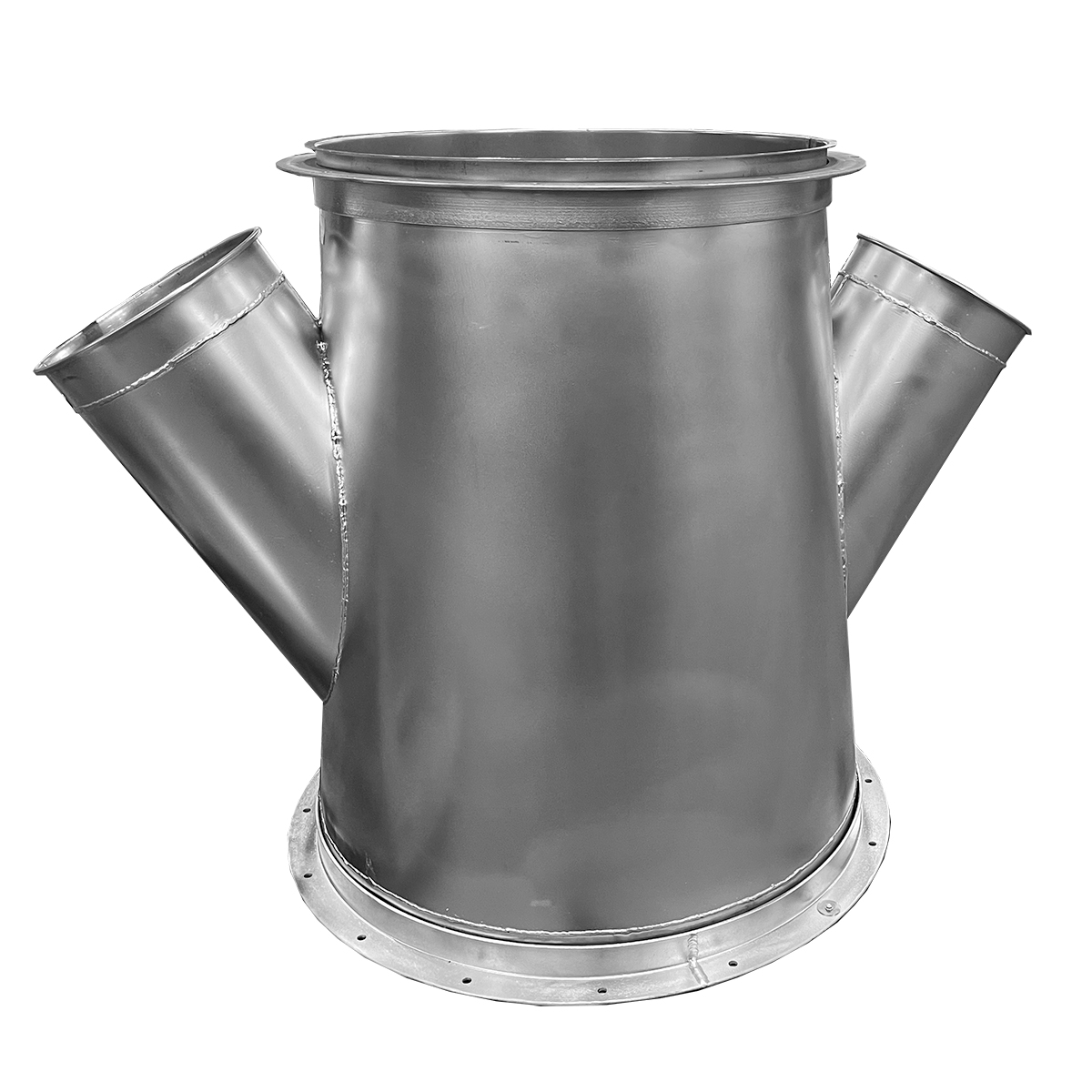

Flanged Double Branch 16 Gauge

Nordfab 16 Gauge Double Branches are standard 30º between legs, optional 45º.

16 gauge galvanized steel material provides extra durability for high wear applications

Flanged Double Branches are standard with industry-standard Angle Flanges on both ends, the flanges are retained via a vanstone lip so that bolt holes can easily be aligned with those on existing flanged connections.

⦁ When ordering, specify A, B, C, and D. Note: (A – C) ≥ (C-B) and (C) ≥ (D)
⦁ Use the following formula to determine length: L = C X 2 + 15”
⦁ Available with QF ends in diameters up to 24", flanged diameters up to 72", and other end types
⦁ Other material gauges available include standard 22 and 20, 18, 14, 12 and 10
⦁ Flange gaskets available

Contact Nordfab or your local Nordfab dealer for assistance with branch configurations not shown below, optional end types, larger sizes, and material / gauge options.
