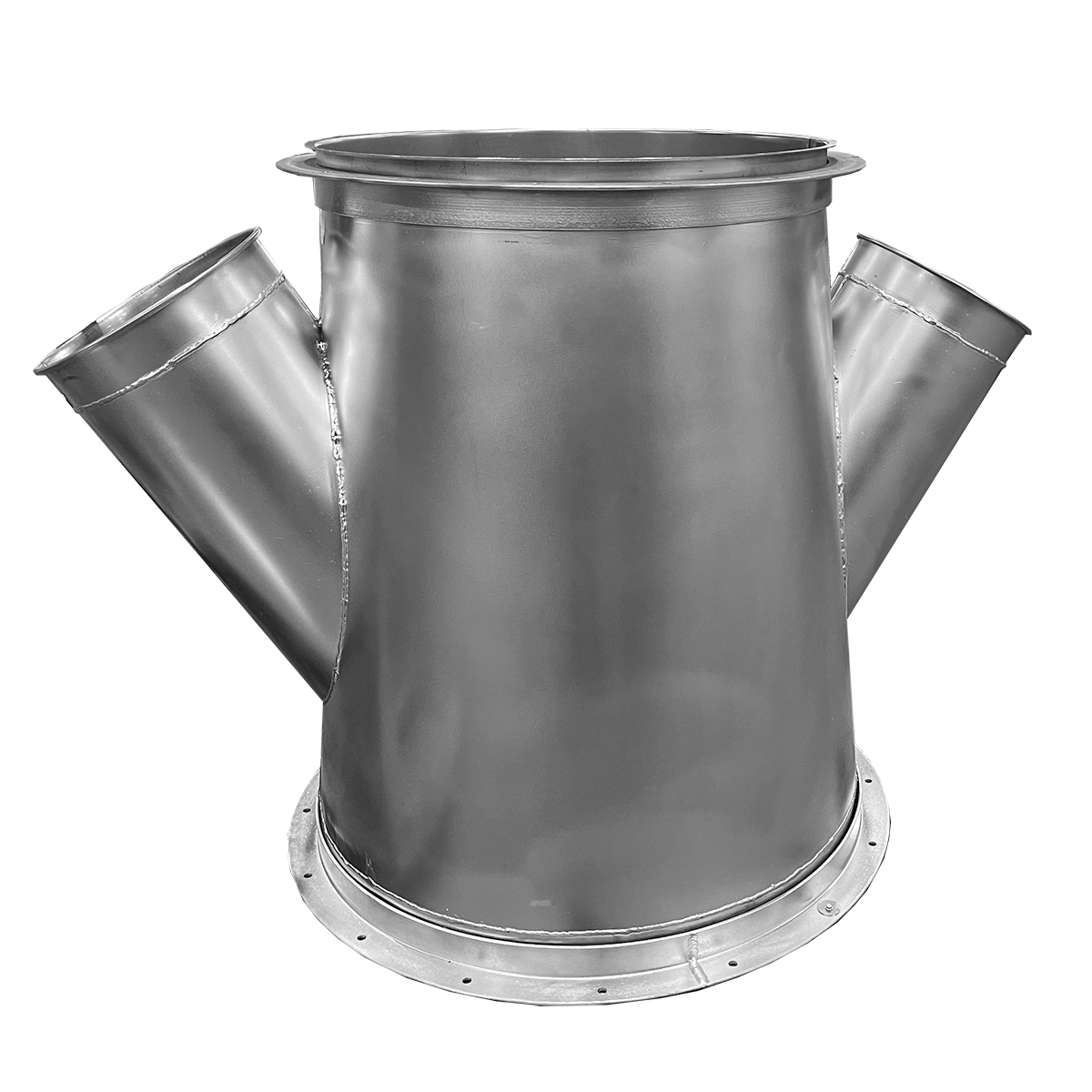

Flanged duct double branches with rotational, industry-standard angle flange on each end. ø 10 - 72". 30° or 45° angle. Heavy wall 12 gauge galvanized steel.

When ordering specify A, B, C, D and end type(s). (A – C) ≥ (C-B) and (C) ≥ (D) Reducer at C or D may be required. Use formula above to determine. Use the following formula to determine length: L = C X 2 + 15”.

A vanstone end with rotational Angle Flanges is standard. If welded flanges are required, clocking must be specified. Flanges are industry standard Angle Flanges.

12 gauge steel material adds extra durability.

⦁ Galvanized steel construction
⦁ Available with 30° or 45° angle
⦁ Additional branch gauges available: 22, 20, 18, 16, 14, and 10

Contact Nordfab or your local Nordfab dealer for assistance with ordering 12 gauge Flanged Branches.
