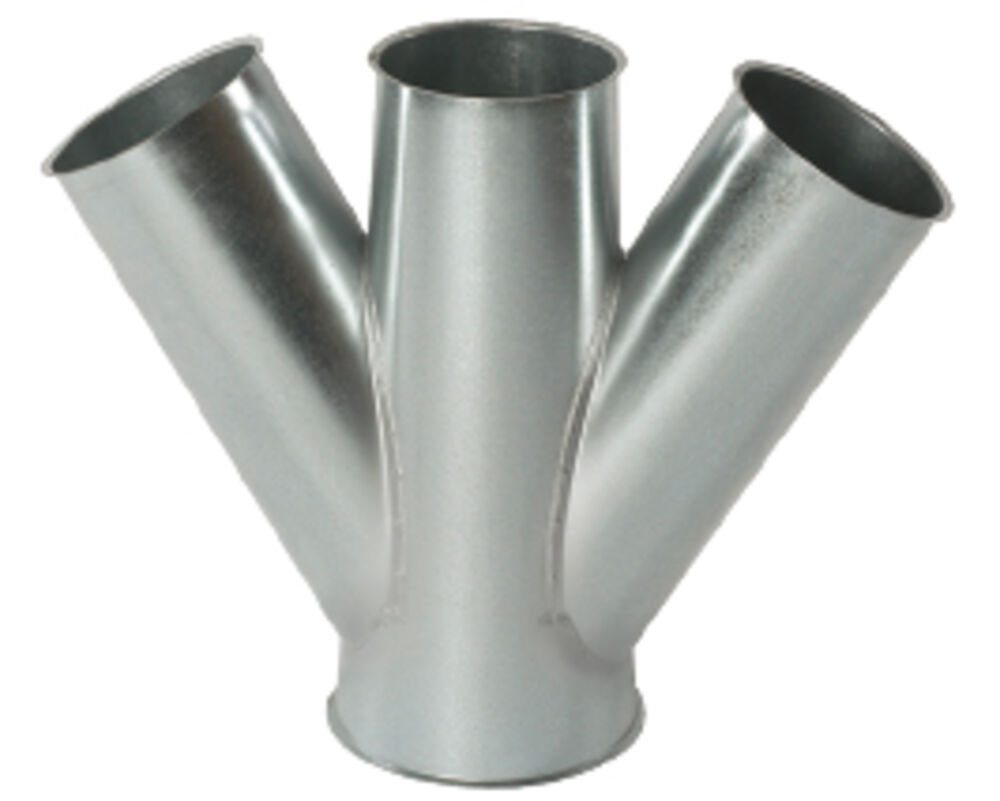

FB clip-together duct 30° Double Branches with 6 mm edge for easy clip connection. Ø80 - 800 mm, galvanised steel construction.

FB Double Branches are used to port to machine outlets or other duct lines. Double Branches are 30°, optional 45° available upon request. The double branch is easily connected to other duct components using FB Clips, which can be secured around the flat edge on each end. Available in galvanised steel construction, ranging from 80 mm to 800 mm in diameter.

When ordering, please specify ØA,ØB, ØC, ØD.

ØC must be smaller than or equal to ØA.
ØB and ØD must be smaller than or equal to ØC.
ØB must be smaller than or equal to ØD.

The FB Duct System is used in dust collection, process ventilation, and fume extraction systems in a wide variety of industries. Nordfab FB Ducting features a flat edge on the connecting ends.

Straight duct, clips, and gaskets to be used in process ventilation, dust collection, and fume extraction systems. Comes with pre-drilled, loose FLI / FLN flanges at each end for ease of alignment and connection to other ducting components during installation. Nordfab flanged ductwork is typically used for larger diameters and used in high-pressure industrial ventilation systems where airtight connections are essential.
