All 14ga elbows are supplied in solid-welded construction, providing a leak-free seam. Elimination of air leakage improves dust collection system efficiency, providing energy cost savings.

Because elbows are a ductwork component which typically experiences higher wear than other components, 14 and 12ga elbows are an excellent alternative for standard duty elbows which may have required frequent replacement.

14 and 12ga elbows allow airflow direction change in a line of duct. All 14 and 12ga elbows are available in 90°, 60°, 45°, and 30°. 14 gauge galvanized steel elbows are available with Quick-Fit® rolled ends or flanged ends. Custom CLRs are available upon request.

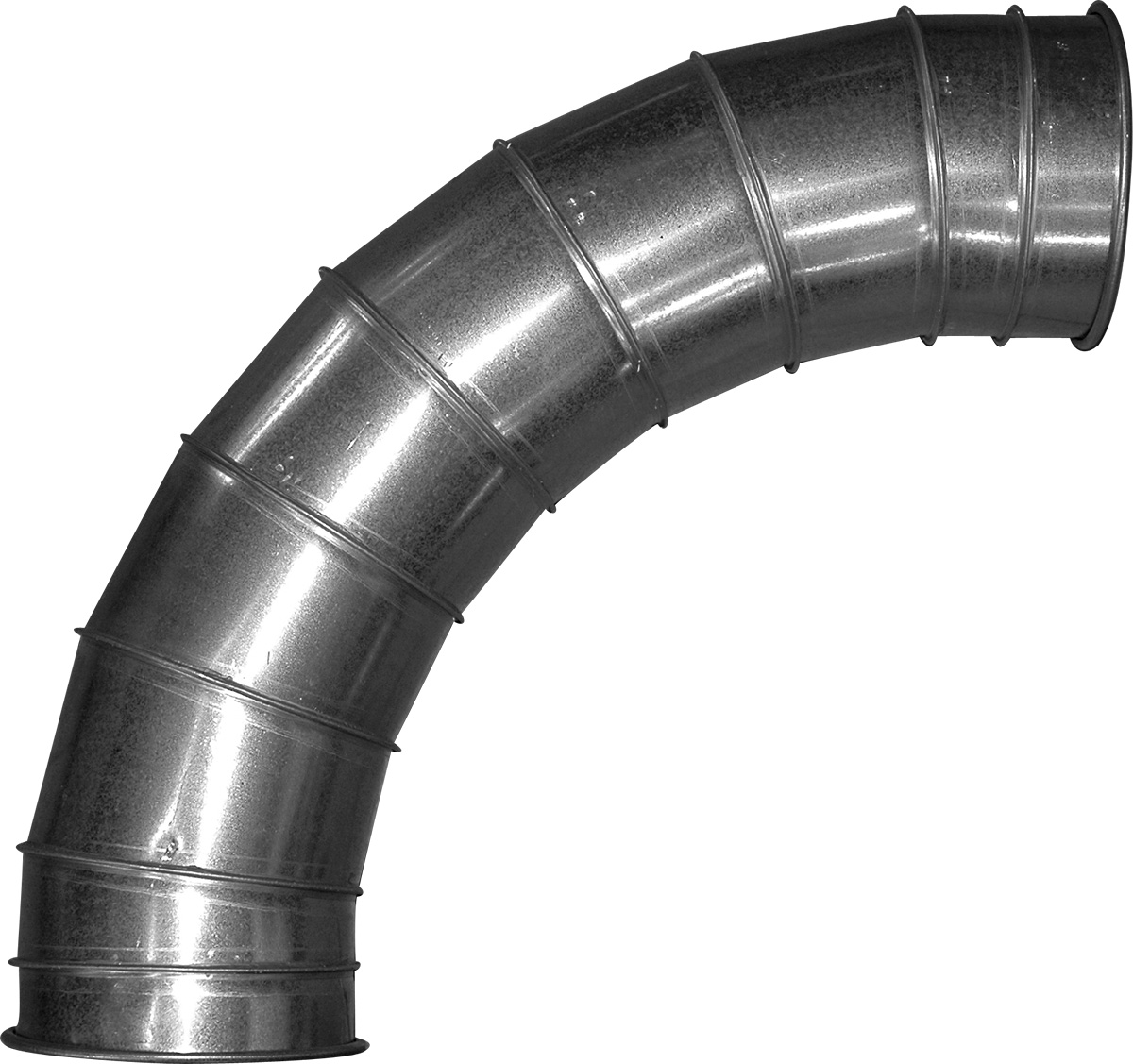

QF Long Radius Elbow 14ga
ø A (in) Angle Degree Center Line Radius Material Thickness Length (in) Weight (lbs) Legacy Item No. Item No.
8 30 2.5 Galv 14ga 4210-0830-120000 8040401193
8 45 2.5 Galv 14ga 4210-0845-120000 8040401194
8 60 2.5 Galv 14ga 4210-0860-120000 8040401195
8 90 2.5 Galv 14ga 4210-0890-120000 8040401196
9 30 2.5 Galv 14ga 4210-0930-122500 8040401197
9 45 2.5 Galv 14ga 4210-0945-122500 8040401198
9 60 2.5 Galv 14ga 4210-0960-122500 8040401199
9 90 2.5 Galv 14ga 4210-0990-122500 8040401200
10 30 2.5 Galv 14ga 4210-1030-125000 8040401201
10 45 2.5 Galv 14ga 4210-1045-125000 8040401202
10 60 2.5 Galv 14ga 4210-1060-125000 8040401203
10 90 2.5 Galv 14ga 4210-1090-125000 8040401204
11 30 2.5 Galv 14ga 4210-1130-127500 8040401205
11 45 2.5 Galv 14ga 4210-1145-127500 8040401206
11 60 2.5 Galv 14ga 4210-1160-127500 8040401207
11 90 2.5 Galv 14ga 4210-1190-127500 8040401208
12 30 2.5 Galv 14ga 4210-1230-130000 8040401209
12 45 2.5 Galv 14ga 4210-1245-130000 8040401210
12 60 2.5 Galv 14ga 4210-1260-130000 8040401211
12 90 2.5 Galv 14ga 4210-1290-130000 8040401212
13 30 2.5 Galv 14ga 4210-1330-132500 8040401213
13 45 2.5 Galv 14ga 4210-1345-132500 8040401214
13 60 2.5 Galv 14ga 4210-1360-132500 8040401215
13 90 2.5 Galv 14ga 4210-1390-132500 8040401216
14 30 2.5 Galv 14ga 4210-1430-135000 8040401217
14 45 2.5 Galv 14ga 4210-1445-135000 8040401218
14 60 2.5 Galv 14ga 4210-1460-135000 8040401219
14 90 2.5 Galv 14ga 4210-1490-135000 8040401220
15 30 2.5 Galv 14ga 4210-1530-137500 8040401221
15 45 2.5 Galv 14ga 4210-1545-137500 8040401222
15 60 2.5 Galv 14ga 4210-1560-137500 8040401223
15 90 2.5 Galv 14ga 4210-1590-137500 8040401224
16 30 2.5 Galv 14ga 4210-1630-140000 8040401225
16 45 2.5 Galv 14ga 4210-1645-140000 8040401226
16 60 2.5 Galv 14ga 4210-1660-140000 8040401227
16 90 2.5 Galv 14ga 4210-1690-140000 8040401228
17 30 2.5 Galv 14ga 4210-1730-142500 8040401229
17 45 2.5 Galv 14ga 4210-1745-142500 8040401230
17 60 2.5 Galv 14ga 4210-1760-142500 8040401231
17 90 2.5 Galv 14ga 4210-1790-142500 8040401232
18 30 2.5 Galv 14ga 4210-1830-145000 8040401233
18 45 2.5 Galv 14ga 4210-1845-145000 8040401234
18 60 2.5 Galv 14ga 4210-1860-145000 8040401235
18 90 2.5 Galv 14ga 4210-1890-145000 8040401236
19 30 2.5 Galv 14ga 4210-1930-147500 8040401237
19 45 2.5 Galv 14ga 4210-1945-147500 8040401238
19 60 2.5 Galv 14ga 4210-1960-147500 8040401239
19 90 2.5 Galv 14ga 4210-1990-147500 8040401240
20 30 2.5 Galv 14ga 4210-2030-150000 8040401241
20 45 2.5 Galv 14ga 4210-2045-150000 8040401242
20 60 2.5 Galv 14ga 4210-2060-150000 8040401243
20 90 2.5 Galv 14ga 4210-2090-150000 8040401244
21 30 2.5 Galv 14ga 4210-2130-152500 8040401245
21 45 2.5 Galv 14ga 4210-2145-152500 8040401246
21 60 2.5 Galv 14ga 4210-2160-152500 8040401247
21 90 2.5 Galv 14ga 4210-2190-152500 8040401248
22 30 2.5 Galv 14ga 4210-2230-155000 8040401249
22 45 2.5 Galv 14ga 4210-2245-155000 8040401250
22 60 2.5 Galv 14ga 4210-2260-155000 8040401251
22 90 2.5 Galv 14ga 4210-2290-155000 8040401252
23 30 2.5 Galv 14ga 4210-2330-157500 8040401253
23 45 2.5 Galv 14ga 4210-2345-157500 8040401254
23 60 2.5 Galv 14ga 4210-2360-157500 8040401255
23 90 2.5 Galv 14ga 4210-2390-157500 8040401256
24 30 2.5 Galv 14ga 4210-2430-160000 8040401257
24 45 2.5 Galv 14ga 4210-2445-160000 8040401258
24 60 2.5 Galv 14ga 4210-2460-160000 8040401259
24 90 2.5 Galv 14ga 4210-2490-160000 8040401260
