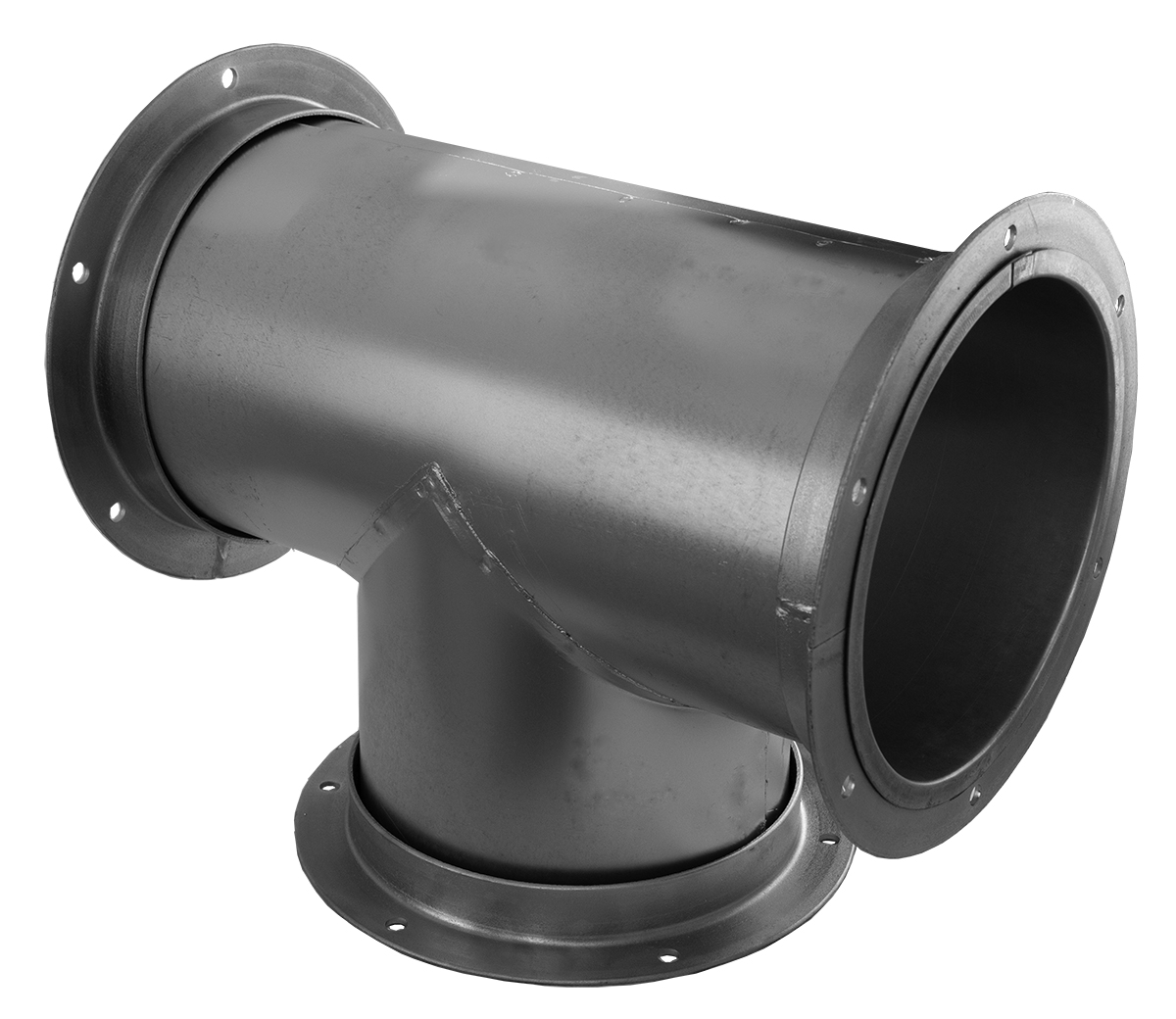

Flanged Tee Branch

Flanged T-Branch duct fittings standard with industry-standard Angle Flanges on both ends.The flanges are retained via a vanstone lip so that bolt holes can easily be aligned with those on existing flanged connections.

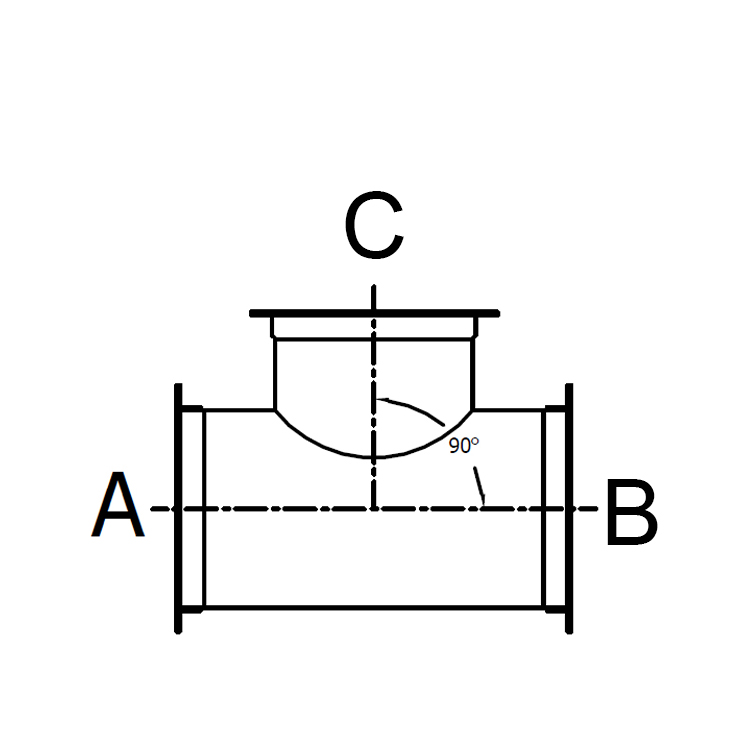

  • When ordering tees, specify A, C. The two “A” ends must be the same dimension, however “B” must be equal to or smaller than the “A” dimension.
  • Use the following formula to determine length: L = C + 8".
  • Available in galvanized steel and 304SS (as shown below) or optional 316SS or carbon steel
  • Available with QF ends in diameters up to 24", flanged diameters up to 72", and other end types
  • Optional gauges 18, 16, 14, 12 and 10
  • Flange gaskets available

Contact Nordfab or your local Nordfab dealer for assistance with branch configurations not shown below, optional end types, larger sizes, and material / gauge options.

Request a Quote



Download our Tee Branch Product Data sheet



ø A in ø B (in) ø C (in) Material Thickness Weight (lbs) Legacy Item No. Item No.
3 3 3 Galv 22ga 3827-0303-100000‍ 8040305218‍
4 4 3 Galv 22ga 3827-0403-100000‍ 8040305219‍
4 4 4 Galv 22ga 3827-0404-100000‍ 8040305220‍
5 5 3 Galv 22ga 3827-0503-100000‍ 8040305221‍
5 5 4 Galv 22ga 3827-0504-100000‍ 8040305222‍
5 5 5 Galv 22ga 3827-0505-100000‍ 8040305223‍
6 6 3 Galv 22ga 3827-0603-100000‍ 8040305224‍
6 6 4 Galv 22ga 3827-0604-100000‍ 8040305225‍
6 6 5 Galv 22ga 3827-0605-100000‍ 8040305226‍
6 6 6 Galv 22ga 3827-0606-100000‍ 8040305227‍
7 7 3 Galv 22ga 3827-0703-100000‍ 8040305228‍
7 7 4 Galv 22ga 3827-0704-100000‍ 8040305229‍
7 7 5 Galv 22ga 3827-0705-100000‍ 8040305230‍
7 7 6 Galv 22ga 3827-0706-100000‍ 8040305231‍
7 7 7 Galv 22ga 3827-0707-100000‍ 8040305232‍
8 8 3 Galv 22ga 3827-0803-100000‍ 8040305233‍
8 8 4 Galv 22ga 3827-0804-100000‍ 8040305234‍
8 8 5 Galv 22ga 3827-0805-100000‍ 8040305235‍
8 8 6 Galv 22ga 3827-0806-100000‍ 8040305236‍
8 8 7 Galv 22ga 3827-0807-100000‍ 8040305237‍
8 8 8 Galv 22ga 3827-0808-100000‍ 8040305238‍
9 9 3 Galv 22ga 3827-0903-100000‍ 8040305239‍
9 9 4 Galv 22ga 3827-0904-100000‍ 8040305240‍
9 9 5 Galv 22ga 3827-0905-100000‍ 8040305241‍
9 9 6 Galv 22ga 3827-0906-100000‍ 8040305242‍
9 9 7 Galv 22ga 3827-0907-100000‍ 8040305243‍
9 9 8 Galv 22ga 3827-0908-100000‍ 8040305244‍
9 9 9 Galv 22ga 3827-0909-100000‍ 8040305245‍
10 10 3 Galv 22ga 3827-1003-100000‍ 8040305246‍
10 10 4 Galv 22ga 3827-1004-100000‍ 8040305247‍
10 10 5 Galv 22ga 3827-1005-100000‍ 8040305248‍
10 10 6 Galv 22ga 3827-1006-100000‍ 8040305249‍
10 10 7 Galv 22ga 3827-1007-100000‍ 8040305250‍
10 10 8 Galv 22ga 3827-1008-100000‍ 8040305251‍
10 10 9 Galv 22ga 3827-1009-100000‍ 8040305252‍
10 10 10 Galv 22ga 3827-1010-100000‍ 8040305253‍
11 11 3 Galv 22ga 3827-1103-100000‍ 8040305254‍
11 11 4 Galv 22ga 3827-1104-100000‍ 8040305255‍
11 11 5 Galv 22ga 3827-1105-100000‍ 8040305256‍
11 11 6 Galv 22ga 3827-1106-100000‍ 8040305257‍
11 11 7 Galv 22ga 3827-1107-100000‍ 8040305258‍
11 11 8 Galv 22ga 3827-1108-100000‍ 8040305259‍
11 11 9 Galv 22ga 3827-1109-100000‍ 8040305260‍
11 11 10 Galv 22ga 3827-1110-100000‍ 8040305261‍
11 11 11 Galv 22ga 3827-1111-100000‍ 8040305262‍
12 12 3 Galv 22ga 3827-1203-100000‍ 8040305263‍
12 12 4 Galv 22ga 3827-1204-100000‍ 8040305264‍
12 12 5 Galv 22ga 3827-1205-100000‍ 8040305265‍
12 12 6 Galv 22ga 3827-1206-100000‍ 8040305266‍
12 12 7 Galv 22ga 3827-1207-100000‍ 8040305267‍
12 12 8 Galv 22ga 3827-1208-100000‍ 8040305268‍
12 12 9 Galv 22ga 3827-1209-100000‍ 8040305269‍
12 12 10 Galv 22ga 3827-1210-100000‍ 8040305270‍
12 12 11 Galv 22ga 3827-1211-100000‍ 8040305271‍
12 12 12 Galv 22ga 3827-1212-100000‍ 8040305272‍
13 13 3 Galv 20ga 3827-1303-100000‍ 8040305273‍
13 13 4 Galv 20ga 3827-1304-100000‍ 8040305274‍
13 13 5 Galv 20ga 3827-1305-100000‍ 8040305275‍
13 13 6 Galv 20ga 3827-1306-100000‍ 8040305276‍
13 13 7 Galv 20ga 3827-1307-100000‍ 8040305277‍
13 13 8 Galv 20ga 3827-1308-100000‍ 8040305278‍
13 13 9 Galv 20ga 3827-1309-100000‍ 8040305279‍
13 13 10 Galv 20ga 3827-1310-100000‍ 8040305280‍
13 13 11 Galv 20ga 3827-1311-100000‍ 8040305281‍
13 13 12 Galv 20ga 3827-1312-100000‍ 8040305282‍
13 13 13 Galv 20ga 3827-1313-100000‍ 8040305283‍
14 14 3 Galv 20ga 3827-1403-100000‍ 8040305284‍
14 14 4 Galv 20ga 3827-1404-100000‍ 8040305285‍
14 14 5 Galv 20ga 3827-1405-100000‍ 8040305286‍
14 14 6 Galv 20ga 3827-1406-100000‍ 8040305287‍
14 14 7 Galv 20ga 3827-1407-100000‍ 8040305288‍
14 14 8 Galv 20ga 3827-1408-100000‍ 8040305289‍
14 14 9 Galv 20ga 3827-1409-100000‍ 8040305290‍
14 14 10 Galv 20ga 3827-1410-100000‍ 8040305291‍
14 14 11 Galv 20ga 3827-1411-100000‍ 8040305292‍
14 14 12 Galv 20ga 3827-1412-100000‍ 8040305293‍
14 14 13 Galv 20ga 3827-1413-100000‍ 8040305294‍
14 14 14 Galv 20ga 3827-1414-100000‍ 8040305295‍
15 15 3 Galv 20ga 3827-1503-100000‍ 8040305296‍
15 15 4 Galv 20ga 3827-1504-100000‍ 8040305297‍
15 15 5 Galv 20ga 3827-1505-100000‍ 8040305298‍
15 15 6 Galv 20ga 3827-1506-100000‍ 8040305299‍
15 15 7 Galv 20ga 3827-1507-100000‍ 8040305300‍
15 15 8 Galv 20ga 3827-1508-100000‍ 8040305301‍
15 15 9 Galv 20ga 3827-1509-100000‍ 8040305302‍
15 15 10 Galv 20ga 3827-1510-100000‍ 8040305303‍
15 15 11 Galv 20ga 3827-1511-100000‍ 8040305304‍
15 15 12 Galv 20ga 3827-1512-100000‍ 8040305305‍
15 15 13 Galv 20ga 3827-1513-100000‍ 8040305306‍
15 15 14 Galv 20ga 3827-1514-100000‍ 8040305307‍
15 15 15 Galv 20ga 3827-1515-100000‍ 8040305308‍
16 16 3 Galv 20ga 3827-1603-100000‍ 8040305309‍
16 16 4 Galv 20ga 3827-1604-100000‍ 8040305310‍
16 16 5 Galv 20ga 3827-1605-100000‍ 8040305311‍
16 16 6 Galv 20ga 3827-1606-100000‍ 8040305312‍
16 16 7 Galv 20ga 3827-1607-100000‍ 8040305313‍
16 16 8 Galv 20ga 3827-1608-100000‍ 8040305314‍
16 16 9 Galv 20ga 3827-1609-100000‍ 8040305315‍
16 16 10 Galv 20ga 3827-1610-100000‍ 8040305316‍
16 16 11 Galv 20ga 3827-1611-100000‍ 8040305317‍
16 16 12 Galv 20ga 3827-1612-100000‍ 8040305318‍
16 16 13 Galv 20ga 3827-1613-100000‍ 8040305319‍
16 16 14 Galv 20ga 3827-1614-100000‍ 8040305320‍
16 16 15 Galv 20ga 3827-1615-100000‍ 8040305321‍
16 16 16 Galv 20ga 3827-1616-100000‍ 8040305322‍
17 17 3 Galv 20ga 3827-1703-100000‍ 8040305323‍
17 17 4 Galv 20ga 3827-1704-100000‍ 8040305324‍
17 17 5 Galv 20ga 3827-1705-100000‍ 8040305325‍
17 17 6 Galv 20ga 3827-1706-100000‍ 8040305326‍
17 17 7 Galv 20ga 3827-1707-100000‍ 8040305327‍
17 17 8 Galv 20ga 3827-1708-100000‍ 8040305328‍
17 17 9 Galv 20ga 3827-1709-100000‍ 8040305329‍
17 17 10 Galv 20ga 3827-1710-100000‍ 8040305330‍
17 17 11 Galv 20ga 3827-1711-100000‍ 8040305331‍
17 17 12 Galv 20ga 3827-1712-100000‍ 8040305332‍
17 17 13 Galv 20ga 3827-1713-100000‍ 8040305333‍
17 17 14 Galv 20ga 3827-1714-100000‍ 8040305334‍
17 17 15 Galv 20ga 3827-1715-100000‍ 8040305335‍
17 17 16 Galv 20ga 3827-1716-100000‍ 8040305336‍
17 17 17 Galv 20ga 3827-1717-100000‍ 8040305337‍
18 18 3 Galv 20ga 3827-1803-100000‍ 8040305338‍
18 18 4 Galv 20ga 3827-1804-100000‍ 8040305339‍
18 18 5 Galv 20ga 3827-1805-100000‍ 8040305340‍
18 18 6 Galv 20ga 3827-1806-100000‍ 8040305341‍
18 18 7 Galv 20ga 3827-1807-100000‍ 8040305342‍
18 18 8 Galv 20ga 3827-1808-100000‍ 8040305343‍
18 18 9 Galv 20ga 3827-1809-100000‍ 8040305344‍
18 18 10 Galv 20ga 3827-1810-100000‍ 8040305345‍
18 18 11 Galv 20ga 3827-1811-100000‍ 8040305346‍
18 18 12 Galv 20ga 3827-1812-100000‍ 8040305347‍
18 18 13 Galv 20ga 3827-1813-100000‍ 8040305348‍
18 18 14 Galv 20ga 3827-1814-100000‍ 8040305349‍
18 18 15 Galv 20ga 3827-1815-100000‍ 8040305350‍
18 18 16 Galv 20ga 3827-1816-100000‍ 8040305351‍
18 18 17 Galv 20ga 3827-1817-100000‍ 8040305352‍
18 18 18 Galv 20ga 3827-1818-100000‍ 8040305353‍
19 19 3 Galv 20ga 3827-1903-100000‍ 8040305354‍
19 19 4 Galv 20ga 3827-1904-100000‍ 8040305355‍
19 19 5 Galv 20ga 3827-1905-100000‍ 8040305356‍
19 19 6 Galv 20ga 3827-1906-100000‍ 8040305357‍
19 19 7 Galv 20ga 3827-1907-100000‍ 8040305358‍
19 19 8 Galv 20ga 3827-1908-100000‍ 8040305359‍
19 19 9 Galv 20ga 3827-1909-100000‍ 8040305360‍
19 19 10 Galv 20ga 3827-1910-100000‍ 8040305361‍
19 19 11 Galv 20ga 3827-1911-100000‍ 8040305362‍
19 19 12 Galv 20ga 3827-1912-100000‍ 8040305363‍
19 19 13 Galv 20ga 3827-1913-100000‍ 8040305364‍
19 19 14 Galv 20ga 3827-1914-100000‍ 8040305365‍
19 19 15 Galv 20ga 3827-1915-100000‍ 8040305366‍
19 19 16 Galv 20ga 3827-1916-100000‍ 8040305367‍
19 19 17 Galv 20ga 3827-1917-100000‍ 8040305368‍
19 19 18 Galv 20ga 3827-1918-100000‍ 8040305369‍
19 19 19 Galv 20ga 3827-1919-100000‍ 8040305370‍
20 20 3 Galv 20ga 3827-2003-100000‍ 8040305371‍
20 20 4 Galv 20ga 3827-2004-100000‍ 8040305372‍
20 20 5 Galv 20ga 3827-2005-100000‍ 8040305373‍
20 20 6 Galv 20ga 3827-2006-100000‍ 8040305374‍
20 20 7 Galv 20ga 3827-2007-100000‍ 8040305375‍
20 20 8 Galv 20ga 3827-2008-100000‍ 8040305376‍
20 20 9 Galv 20ga 3827-2009-100000‍ 8040305377‍
20 20 10 Galv 20ga 3827-2010-100000‍ 8040305378‍
20 20 11 Galv 20ga 3827-2011-100000‍ 8040305379‍
20 20 12 Galv 20ga 3827-2012-100000‍ 8040305380‍
20 20 13 Galv 20ga 3827-2013-100000‍ 8040305381‍
20 20 14 Galv 20ga 3827-2014-100000‍ 8040305382‍
20 20 15 Galv 20ga 3827-2015-100000‍ 8040305383‍
20 20 16 Galv 20ga 3827-2016-100000‍ 8040305384‍
20 20 17 Galv 20ga 3827-2017-100000‍ 8040305385‍
20 20 18 Galv 20ga 3827-2018-100000‍ 8040305386‍
20 20 19 Galv 20ga 3827-2019-100000‍ 8040305387‍
20 20 20 Galv 20ga 3827-2020-100000‍ 8040305388‍
21 21 3 Galv 20ga 3827-2103-100000‍ 8040305389‍
21 21 4 Galv 20ga 3827-2104-100000‍ 8040305390‍
21 21 5 Galv 20ga 3827-2105-100000‍ 8040305391‍
21 21 6 Galv 20ga 3827-2106-100000‍ 8040305392‍
21 21 7 Galv 20ga 3827-2107-100000‍ 8040305393‍
21 21 8 Galv 20ga 3827-2108-100000‍ 8040305394‍
21 21 9 Galv 20ga 3827-2109-100000‍ 8040305395‍
21 21 10 Galv 20ga 3827-2110-100000‍ 8040305396‍
21 21 11 Galv 20ga 3827-2111-100000‍ 8040305397‍
21 21 12 Galv 20ga 3827-2112-100000‍ 8040305398‍
21 21 13 Galv 20ga 3827-2113-100000‍ 8040305399‍
21 21 14 Galv 20ga 3827-2114-100000‍ 8040305400‍
21 21 15 Galv 20ga 3827-2115-100000‍ 8040305401‍
21 21 16 Galv 20ga 3827-2116-100000‍ 8040305402‍
21 21 17 Galv 20ga 3827-2117-100000‍ 8040305403‍
21 21 18 Galv 20ga 3827-2118-100000‍ 8040305404‍
21 21 19 Galv 20ga 3827-2119-100000‍ 8040305405‍
21 21 20 Galv 20ga 3827-2120-100000‍ 8040305406‍
21 21 21 Galv 20ga 3827-2121-100000‍ 8040305407‍
22 22 3 Galv 20ga 3827-2203-100000‍ 8040305408‍
22 22 4 Galv 20ga 3827-2204-100000‍ 8040305409‍
22 22 5 Galv 20ga 3827-2205-100000‍ 8040305410‍
22 22 6 Galv 20ga 3827-2206-100000‍ 8040305411‍
22 22 7 Galv 20ga 3827-2207-100000‍ 8040305412‍
22 22 8 Galv 20ga 3827-2208-100000‍ 8040305413‍
22 22 9 Galv 20ga 3827-2209-100000‍ 8040305414‍
22 22 10 Galv 20ga 3827-2210-100000‍ 8040305415‍
22 22 11 Galv 20ga 3827-2211-100000‍ 8040305416‍
22 22 12 Galv 20ga 3827-2212-100000‍ 8040305417‍
22 22 13 Galv 20ga 3827-2213-100000‍ 8040305418‍
22 22 14 Galv 20ga 3827-2214-100000‍ 8040305419‍
22 22 15 Galv 20ga 3827-2215-100000‍ 8040305420‍
22 22 16 Galv 20ga 3827-2216-100000‍ 8040305421‍
22 22 17 Galv 20ga 3827-2217-100000‍ 8040305422‍
22 22 18 Galv 20ga 3827-2218-100000‍ 8040305423‍
22 22 19 Galv 20ga 3827-2219-100000‍ 8040305424‍
22 22 20 Galv 20ga 3827-2220-100000‍ 8040305425‍
22 22 21 Galv 20ga 3827-2221-100000‍ 8040305426‍
22 22 22 Galv 20ga 3827-2222-100000‍ 8040305427‍
23 23 3 Galv 20ga 3827-2303-100000‍ 8040305428‍
23 23 4 Galv 20ga 3827-2304-100000‍ 8040305429‍
23 23 5 Galv 20ga 3827-2305-100000‍ 8040305430‍
23 23 6 Galv 20ga 3827-2306-100000‍ 8040305431‍
23 23 7 Galv 20ga 3827-2307-100000‍ 8040305432‍
23 23 8 Galv 20ga 3827-2308-100000‍ 8040305433‍
23 23 9 Galv 20ga 3827-2309-100000‍ 8040305434‍
23 23 10 Galv 20ga 3827-2310-100000‍ 8040305435‍
23 23 11 Galv 20ga 3827-2311-100000‍ 8040305436‍
23 23 12 Galv 20ga 3827-2312-100000‍ 8040305437‍
23 23 13 Galv 20ga 3827-2313-100000‍ 8040305438‍
23 23 14 Galv 20ga 3827-2314-100000‍ 8040305439‍
23 23 15 Galv 20ga 3827-2315-100000‍ 8040305440‍
23 23 16 Galv 20ga 3827-2316-100000‍ 8040305441‍
23 23 17 Galv 20ga 3827-2317-100000‍ 8040305442‍
23 23 18 Galv 20ga 3827-2318-100000‍ 8040305443‍
23 23 19 Galv 20ga 3827-2319-100000‍ 8040305444‍
23 23 20 Galv 20ga 3827-2320-100000‍ 8040305445‍
23 23 21 Galv 20ga 3827-2321-100000‍ 8040305446‍
23 23 22 Galv 20ga 3827-2322-100000‍ 8040305447‍
23 23 23 Galv 20ga 3827-2323-100000‍ 8040305448‍
24 24 3 Galv 20ga 3827-2403-100000‍ 8040305449‍
24 24 4 Galv 20ga 3827-2404-100000‍ 8040305450‍
24 24 5 Galv 20ga 3827-2405-100000‍ 8040305451‍
24 24 6 Galv 20ga 3827-2406-100000‍ 8040305452‍
24 24 7 Galv 20ga 3827-2407-100000‍ 8040305453‍
24 24 8 Galv 20ga 3827-2408-100000‍ 8040305454‍
24 24 9 Galv 20ga 3827-2409-100000‍ 8040305455‍
24 24 10 Galv 20ga 3827-2410-100000‍ 8040305456‍
24 24 11 Galv 20ga 3827-2411-100000‍ 8040305457‍
24 24 12 Galv 20ga 3827-2412-100000‍ 8040305458‍
24 24 13 Galv 20ga 3827-2413-100000‍ 8040305459‍
24 24 14 Galv 20ga 3827-2414-100000‍ 8040305460‍
24 24 15 Galv 20ga 3827-2415-100000‍ 8040305461‍
24 24 16 Galv 20ga 3827-2416-100000‍ 8040305462‍
24 24 17 Galv 20ga 3827-2417-100000‍ 8040305463‍
24 24 18 Galv 20ga 3827-2418-100000‍ 8040305464‍
24 24 19 Galv 20ga 3827-2419-100000‍ 8040305465‍
24 24 20 Galv 20ga 3827-2420-100000‍ 8040305466‍
24 24 21 Galv 20ga 3827-2421-100000‍ 8040305467‍
24 24 22 Galv 20ga 3827-2422-100000‍ 8040305468‍
24 24 23 Galv 20ga 3827-2423-100000‍ 8040305469‍
24 24 24 Galv 20ga 3827-2424-100000‍ 8040305470‍
3 3 3 304SS 22ga 3827-0303-200000‍ 8040305471‍
4 4 3 304SS 22ga 3827-0403-200000‍ 8040305472‍
4 4 4 304SS 22ga 3827-0404-200000‍ 8040305473‍
5 5 3 304SS 22ga 3827-0503-200000‍ 8040305474‍
5 5 4 304SS 22ga 3827-0504-200000‍ 8040305475‍
5 5 5 304SS 22ga 3827-0505-200000‍ 8040305476‍
6 6 3 304SS 22ga 3827-0603-200000‍ 8040305477‍
6 6 4 304SS 22ga 3827-0604-200000‍ 8040305478‍
6 6 5 304SS 22ga 3827-0605-200000‍ 8040305479‍
6 6 6 304SS 22ga 3827-0606-200000‍ 8040305480‍
7 7 3 304SS 22ga 3827-0703-200000‍ 8040305481‍
7 7 4 304SS 22ga 3827-0704-200000‍ 8040305482‍
7 7 5 304SS 22ga 3827-0705-200000‍ 8040305483‍
7 7 6 304SS 22ga 3827-0706-200000‍ 8040305484‍
7 7 7 304SS 22ga 3827-0707-200000‍ 8040305485‍
8 8 3 304SS 22ga 3827-0803-200000‍ 8040305486‍
8 8 4 304SS 22ga 3827-0804-200000‍ 8040305487‍
8 8 5 304SS 22ga 3827-0805-200000‍ 8040305488‍
8 8 6 304SS 22ga 3827-0806-200000‍ 8040305489‍
8 8 7 304SS 22ga 3827-0807-200000‍ 8040305490‍
8 8 8 304SS 22ga 3827-0808-200000‍ 8040305491‍
9 9 3 304SS 22ga 3827-0903-200000‍ 8040305492‍
9 9 4 304SS 22ga 3827-0904-200000‍ 8040305493‍
9 9 5 304SS 22ga 3827-0905-200000‍ 8040305494‍
9 9 6 304SS 22ga 3827-0906-200000‍ 8040305495‍
9 9 7 304SS 22ga 3827-0907-200000‍ 8040305496‍
9 9 8 304SS 22ga 3827-0908-200000‍ 8040305497‍
9 9 9 304SS 22ga 3827-0909-200000‍ 8040305498‍
10 10 3 304SS 22ga 3827-1003-200000‍ 8040305499‍
10 10 4 304SS 22ga 3827-1004-200000‍ 8040305500‍
10 10 5 304SS 22ga 3827-1005-200000‍ 8040305501‍
10 10 6 304SS 22ga 3827-1006-200000‍ 8040305502‍
10 10 7 304SS 22ga 3827-1007-200000‍ 8040305503‍
10 10 8 304SS 22ga 3827-1008-200000‍ 8040305504‍
10 10 9 304SS 22ga 3827-1009-200000‍ 8040305505‍
10 10 10 304SS 22ga 3827-1010-200000‍ 8040305506‍
11 11 3 304SS 22ga 3827-1103-200000‍ 8040305507‍
11 11 4 304SS 22ga 3827-1104-200000‍ 8040305508‍
11 11 5 304SS 22ga 3827-1105-200000‍ 8040305509‍
11 11 6 304SS 22ga 3827-1106-200000‍ 8040305510‍
11 11 7 304SS 22ga 3827-1107-200000‍ 8040305511‍
11 11 8 304SS 22ga 3827-1108-200000‍ 8040305512‍
11 11 9 304SS 22ga 3827-1109-200000‍ 8040305513‍
11 11 10 304SS 22ga 3827-1110-200000‍ 8040305514‍
11 11 11 304SS 22ga 3827-1111-200000‍ 8040305515‍
12 12 3 304SS 22ga 3827-1203-200000‍ 8040305516‍
12 12 4 304SS 22ga 3827-1204-200000‍ 8040305517‍
12 12 5 304SS 22ga 3827-1205-200000‍ 8040305518‍
12 12 6 304SS 22ga 3827-1206-200000‍ 8040305519‍
12 12 7 304SS 22ga 3827-1207-200000‍ 8040305520‍
12 12 8 304SS 22ga 3827-1208-200000‍ 8040305521‍
12 12 9 304SS 22ga 3827-1209-200000‍ 8040305522‍
12 12 10 304SS 22ga 3827-1210-200000‍ 8040305523‍
12 12 11 304SS 22ga 3827-1211-200000‍ 8040305524‍
12 12 12 304SS 22ga 3827-1212-200000‍ 8040305525‍
13 13 3 304SS 20ga 3827-1303-200000‍ 8040305526‍
13 13 4 304SS 20ga 3827-1304-200000‍ 8040305527‍
13 13 5 304SS 20ga 3827-1305-200000‍ 8040305528‍
13 13 6 304SS 20ga 3827-1306-200000‍ 8040305529‍
13 13 7 304SS 20ga 3827-1307-200000‍ 8040305530‍
13 13 8 304SS 20ga 3827-1308-200000‍ 8040305531‍
13 13 9 304SS 20ga 3827-1309-200000‍ 8040305532‍
13 13 10 304SS 20ga 3827-1310-200000‍ 8040305533‍
13 13 11 304SS 20ga 3827-1311-200000‍ 8040305534‍
13 13 12 304SS 20ga 3827-1312-200000‍ 8040305535‍
13 13 13 304SS 20ga 3827-1313-200000‍ 8040305536‍
14 14 3 304SS 20ga 3827-1403-200000‍ 8040305537‍
14 14 4 304SS 20ga 3827-1404-200000‍ 8040305538‍
14 14 5 304SS 20ga 3827-1405-200000‍ 8040305539‍
14 14 6 304SS 20ga 3827-1406-200000‍ 8040305540‍
14 14 7 304SS 20ga 3827-1407-200000‍ 8040305541‍
14 14 8 304SS 20ga 3827-1408-200000‍ 8040305542‍
14 14 9 304SS 20ga 3827-1409-200000‍ 8040305543‍
14 14 10 304SS 20ga 3827-1410-200000‍ 8040305544‍
14 14 11 304SS 20ga 3827-1411-200000‍ 8040305545‍
14 14 12 304SS 20ga 3827-1412-200000‍ 8040305546‍
14 14 13 304SS 20ga 3827-1413-200000‍ 8040305547‍
14 14 14 304SS 20ga 3827-1414-200000‍ 8040305548‍
15 15 3 304SS 20ga 3827-1503-200000‍ 8040305549‍
15 15 4 304SS 20ga 3827-1504-200000‍ 8040305550‍
15 15 5 304SS 20ga 3827-1505-200000‍ 8040305551‍
15 15 6 304SS 20ga 3827-1506-200000‍ 8040305552‍
15 15 7 304SS 20ga 3827-1507-200000‍ 8040305553‍
15 15 8 304SS 20ga 3827-1508-200000‍ 8040305554‍
15 15 9 304SS 20ga 3827-1509-200000‍ 8040305555‍
15 15 10 304SS 20ga 3827-1510-200000‍ 8040305556‍
15 15 11 304SS 20ga 3827-1511-200000‍ 8040305557‍
15 15 12 304SS 20ga 3827-1512-200000‍ 8040305558‍
15 15 13 304SS 20ga 3827-1513-200000‍ 8040305559‍
15 15 14 304SS 20ga 3827-1514-200000‍ 8040305560‍
15 15 15 304SS 20ga 3827-1515-200000‍ 8040305561‍
16 16 3 304SS 20ga 3827-1603-200000‍ 8040305562‍
16 16 4 304SS 20ga 3827-1604-200000‍ 8040305563‍
16 16 5 304SS 20ga 3827-1605-200000‍ 8040305564‍
16 16 6 304SS 20ga 3827-1606-200000‍ 8040305565‍
16 16 7 304SS 20ga 3827-1607-200000‍ 8040305566‍
16 16 8 304SS 20ga 3827-1608-200000‍ 8040305567‍
16 16 9 304SS 20ga 3827-1609-200000‍ 8040305568‍
16 16 10 304SS 20ga 3827-1610-200000‍ 8040305569‍
16 16 11 304SS 20ga 3827-1611-200000‍ 8040305570‍
16 16 12 304SS 20ga 3827-1612-200000‍ 8040305571‍
16 16 13 304SS 20ga 3827-1613-200000‍ 8040305572‍
16 16 14 304SS 20ga 3827-1614-200000‍ 8040305573‍
16 16 15 304SS 20ga 3827-1615-200000‍ 8040305574‍
16 16 16 304SS 20ga 3827-1616-200000‍ 8040305575‍
17 17 3 304SS 20ga 3827-1703-200000‍ 8040305576‍
17 17 4 304SS 20ga 3827-1704-200000‍ 8040305577‍
17 17 5 304SS 20ga 3827-1705-200000‍ 8040305578‍
17 17 6 304SS 20ga 3827-1706-200000‍ 8040305579‍
17 17 7 304SS 20ga 3827-1707-200000‍ 8040305580‍
17 17 8 304SS 20ga 3827-1708-200000‍ 8040305581‍
17 17 9 304SS 20ga 3827-1709-200000‍ 8040305582‍
17 17 10 304SS 20ga 3827-1710-200000‍ 8040305583‍
17 17 11 304SS 20ga 3827-1711-200000‍ 8040305584‍
17 17 12 304SS 20ga 3827-1712-200000‍ 8040305585‍
17 17 13 304SS 20ga 3827-1713-200000‍ 8040305586‍
17 17 14 304SS 20ga 3827-1714-200000‍ 8040305587‍
17 17 15 304SS 20ga 3827-1715-200000‍ 8040305588‍
17 17 16 304SS 20ga 3827-1716-200000‍ 8040305589‍
17 17 17 304SS 20ga 3827-1717-200000‍ 8040305590‍
18 18 3 304SS 20ga 3827-1803-200000‍ 8040305591‍
18 18 4 304SS 20ga 3827-1804-200000‍ 8040305592‍
18 18 5 304SS 20ga 3827-1805-200000‍ 8040305593‍
18 18 6 304SS 20ga 3827-1806-200000‍ 8040305594‍
18 18 7 304SS 20ga 3827-1807-200000‍ 8040305595‍
18 18 8 304SS 20ga 3827-1808-200000‍ 8040305596‍
18 18 9 304SS 20ga 3827-1809-200000‍ 8040305597‍
18 18 10 304SS 20ga 3827-1810-200000‍ 8040305598‍
18 18 11 304SS 20ga 3827-1811-200000‍ 8040305599‍
18 18 12 304SS 20ga 3827-1812-200000‍ 8040305600‍
18 18 13 304SS 20ga 3827-1813-200000‍ 8040305601‍
18 18 14 304SS 20ga 3827-1814-200000‍ 8040305602‍
18 18 15 304SS 20ga 3827-1815-200000‍ 8040305603‍
18 18 16 304SS 20ga 3827-1816-200000‍ 8040305604‍
18 18 17 304SS 20ga 3827-1817-200000‍ 8040305605‍
18 18 18 304SS 20ga 3827-1818-200000‍ 8040305606‍
19 19 3 304SS 20ga 3827-1903-200000‍ 8040305607‍
19 19 4 304SS 20ga 3827-1904-200000‍ 8040305608‍
19 19 5 304SS 20ga 3827-1905-200000‍ 8040305609‍
19 19 6 304SS 20ga 3827-1906-200000‍ 8040305610‍
19 19 7 304SS 20ga 3827-1907-200000‍ 8040305611‍
19 19 8 304SS 20ga 3827-1908-200000‍ 8040305612‍
19 19 9 304SS 20ga 3827-1909-200000‍ 8040305613‍
19 19 10 304SS 20ga 3827-1910-200000‍ 8040305614‍
19 19 11 304SS 20ga 3827-1911-200000‍ 8040305615‍
19 19 12 304SS 20ga 3827-1912-200000‍ 8040305616‍
19 19 13 304SS 20ga 3827-1913-200000‍ 8040305617‍
19 19 14 304SS 20ga 3827-1914-200000‍ 8040305618‍
19 19 15 304SS 20ga 3827-1915-200000‍ 8040305619‍
19 19 16 304SS 20ga 3827-1916-200000‍ 8040305620‍
19 19 17 304SS 20ga 3827-1917-200000‍ 8040305621‍
19 19 18 304SS 20ga 3827-1918-200000‍ 8040305622‍
19 19 19 304SS 20ga 3827-1919-200000‍ 8040305623‍
20 20 3 304SS 20ga 3827-2003-200000‍ 8040305624‍
20 20 4 304SS 20ga 3827-2004-200000‍ 8040305625‍
20 20 5 304SS 20ga 3827-2005-200000‍ 8040305626‍
20 20 6 304SS 20ga 3827-2006-200000‍ 8040305627‍
20 20 7 304SS 20ga 3827-2007-200000‍ 8040305628‍
20 20 8 304SS 20ga 3827-2008-200000‍ 8040305629‍
20 20 9 304SS 20ga 3827-2009-200000‍ 8040305630‍
20 20 10 304SS 20ga 3827-2010-200000‍ 8040305631‍
20 20 11 304SS 20ga 3827-2011-200000‍ 8040305632‍
20 20 12 304SS 20ga 3827-2012-200000‍ 8040305633‍
20 20 13 304SS 20ga 3827-2013-200000‍ 8040305634‍
20 20 14 304SS 20ga 3827-2014-200000‍ 8040305635‍
20 20 15 304SS 20ga 3827-2015-200000‍ 8040305636‍
20 20 16 304SS 20ga 3827-2016-200000‍ 8040305637‍
20 20 17 304SS 20ga 3827-2017-200000‍ 8040305638‍
20 20 18 304SS 20ga 3827-2018-200000‍ 8040305639‍
20 20 19 304SS 20ga 3827-2019-200000‍ 8040305640‍
20 20 20 304SS 20ga 3827-2020-200000‍ 8040305641‍
21 21 3 304SS 20ga 3827-2103-200000‍ 8040305642‍
21 21 4 304SS 20ga 3827-2104-200000‍ 8040305643‍
21 21 5 304SS 20ga 3827-2105-200000‍ 8040305644‍
21 21 6 304SS 20ga 3827-2106-200000‍ 8040305645‍
21 21 7 304SS 20ga 3827-2107-200000‍ 8040305646‍
21 21 8 304SS 20ga 3827-2108-200000‍ 8040305647‍
21 21 9 304SS 20ga 3827-2109-200000‍ 8040305648‍
21 21 10 304SS 20ga 3827-2110-200000‍ 8040305649‍
21 21 11 304SS 20ga 3827-2111-200000‍ 8040305650‍
21 21 12 304SS 20ga 3827-2112-200000‍ 8040305651‍
21 21 13 304SS 20ga 3827-2113-200000‍ 8040305652‍
21 21 14 304SS 20ga 3827-2114-200000‍ 8040305653‍
21 21 15 304SS 20ga 3827-2115-200000‍ 8040305654‍
21 21 16 304SS 20ga 3827-2116-200000‍ 8040305655‍
21 21 17 304SS 20ga 3827-2117-200000‍ 8040305656‍
21 21 18 304SS 20ga 3827-2118-200000‍ 8040305657‍
21 21 19 304SS 20ga 3827-2119-200000‍ 8040305658‍
21 21 20 304SS 20ga 3827-2120-200000‍ 8040305659‍
21 21 21 304SS 20ga 3827-2121-200000‍ 8040305660‍
22 22 3 304SS 20ga 3827-2203-200000‍ 8040305661‍
22 22 4 304SS 20ga 3827-2204-200000‍ 8040305662‍
22 22 5 304SS 20ga 3827-2205-200000‍ 8040305663‍
22 22 6 304SS 20ga 3827-2206-200000‍ 8040305664‍
22 22 7 304SS 20ga 3827-2207-200000‍ 8040305665‍
22 22 8 304SS 20ga 3827-2208-200000‍ 8040305666‍
22 22 9 304SS 20ga 3827-2209-200000‍ 8040305667‍
22 22 10 304SS 20ga 3827-2210-200000‍ 8040305668‍
22 22 11 304SS 20ga 3827-2211-200000‍ 8040305669‍
22 22 12 304SS 20ga 3827-2212-200000‍ 8040305670‍
22 22 13 304SS 20ga 3827-2213-200000‍ 8040305671‍
22 22 14 304SS 20ga 3827-2214-200000‍ 8040305672‍
22 22 15 304SS 20ga 3827-2215-200000‍ 8040305673‍
22 22 16 304SS 20ga 3827-2216-200000‍ 8040305674‍
22 22 17 304SS 20ga 3827-2217-200000‍ 8040305675‍
22 22 18 304SS 20ga 3827-2218-200000‍ 8040305676‍
22 22 19 304SS 20ga 3827-2219-200000‍ 8040305677‍
22 22 20 304SS 20ga 3827-2220-200000‍ 8040305678‍
22 22 21 304SS 20ga 3827-2221-200000‍ 8040305679‍
22 22 22 304SS 20ga 3827-2222-200000‍ 8040305680‍
23 23 3 304SS 20ga 3827-2303-200000‍ 8040305681‍
23 23 4 304SS 20ga 3827-2304-200000‍ 8040305682‍
23 23 5 304SS 20ga 3827-2305-200000‍ 8040305683‍
23 23 6 304SS 20ga 3827-2306-200000‍ 8040305684‍
23 23 7 304SS 20ga 3827-2307-200000‍ 8040305685‍
23 23 8 304SS 20ga 3827-2308-200000‍ 8040305686‍
23 23 9 304SS 20ga 3827-2309-200000‍ 8040305687‍
23 23 10 304SS 20ga 3827-2310-200000‍ 8040305688‍
23 23 11 304SS 20ga 3827-2311-200000‍ 8040305689‍
23 23 12 304SS 20ga 3827-2312-200000‍ 8040305690‍
23 23 13 304SS 20ga 3827-2313-200000‍ 8040305691‍
23 23 14 304SS 20ga 3827-2314-200000‍ 8040305692‍
23 23 15 304SS 20ga 3827-2315-200000‍ 8040305693‍
23 23 16 304SS 20ga 3827-2316-200000‍ 8040305694‍
23 23 17 304SS 20ga 3827-2317-200000‍ 8040305695‍
23 23 18 304SS 20ga 3827-2318-200000‍ 8040305696‍
23 23 19 304SS 20ga 3827-2319-200000‍ 8040305697‍
23 23 20 304SS 20ga 3827-2320-200000‍ 8040305698‍
23 23 21 304SS 20ga 3827-2321-200000‍ 8040305699‍
23 23 22 304SS 20ga 3827-2322-200000‍ 8040305700‍
23 23 23 304SS 20ga 3827-2323-200000‍ 8040305701‍
24 24 3 304SS 20ga 3827-2403-200000‍ 8040305702‍
24 24 4 304SS 20ga 3827-2404-200000‍ 8040305703‍
24 24 5 304SS 20ga 3827-2405-200000‍ 8040305704‍
24 24 6 304SS 20ga 3827-2406-200000‍ 8040305705‍
24 24 7 304SS 20ga 3827-2407-200000‍ 8040305706‍
24 24 8 304SS 20ga 3827-2408-200000‍ 8040305707‍
24 24 9 304SS 20ga 3827-2409-200000‍ 8040305708‍
24 24 10 304SS 20ga 3827-2410-200000‍ 8040305709‍
24 24 11 304SS 20ga 3827-2411-200000‍ 8040305710‍
24 24 12 304SS 20ga 3827-2412-200000‍ 8040305711‍
24 24 13 304SS 20ga 3827-2413-200000‍ 8040305712‍
24 24 14 304SS 20ga 3827-2414-200000‍ 8040305713‍
24 24 15 304SS 20ga 3827-2415-200000‍ 8040305714‍
24 24 16 304SS 20ga 3827-2416-200000‍ 8040305715‍
24 24 17 304SS 20ga 3827-2417-200000‍ 8040305716‍
24 24 18 304SS 20ga 3827-2418-200000‍ 8040305717‍
24 24 19 304SS 20ga 3827-2419-200000‍ 8040305718‍
24 24 20 304SS 20ga 3827-2420-200000‍ 8040305719‍
24 24 21 304SS 20ga 3827-2421-200000‍ 8040305720‍
24 24 22 304SS 20ga 3827-2422-200000‍ 8040305721‍
24 24 23 304SS 20ga 3827-2423-200000‍ 8040305722‍
24 24 24 304SS 20ga 3827-2424-200000‍ 8040305723‍

Get in touch

Contact Nordfab Americas
Contact Us
