2 halves incl. bolt and nut. Loose rubber ring RSRS included. Dimensions of Ø 315 mm are supplied FSDB with adhesive for increased density.

Mild Steel Ducting for industrial ventilation, vacuum and pneumatic conveying.
Mild, corten and stainless steel ducting in thicknesses t = 2-5 mm supplied as standard.

Mild Steel Ducting for industrial ventilation, vacuum and pneumatic conveying.
Mild, corten and stainless steel ducting in thicknesses t = 2-5 mm supplied as standard.

Construction:
• Mild steel 2-3 mm.
• Connections: flanged, clipped edge, straight edge.
• Cold rolled steel sheet in 1312.
• The maximum recommended operating temperature +80°C.

Optional:
• Corten steel.
• Stainless steel.
• Other thicknesses.

Finish:
• Painted in RAL 7032.
• Priming 50 μ, zinc content 70%.

Designed for machining and any other operations which create oil mists, Nordfab Quick-Fit Sealed (QFS) Ducting can significantly reduce risks of leakage from ducting. QFS features laser welded and caulked duct (solid seams eliminate leakage) and double sealing at duct connections.  When clipping the ductwork together, an additional nitrile gasket is placed between the parts to avoid leakage. The Quick-Fit Clip features a generoursly dimensioned sealing gasket held firmly in place by positive over-centre clamping action over the rolled collars at the duct ends to be joined.

Our standard sizes ranges from 80 mm to 710 mm in diameter and our ductwork is available in galvanised and stainless steel construction.

Can't find what you're looking for? Contact us, and we'll be happy to help!

Nordfab High Vacuum (HV) pipe and connectors, couplings, for air contaminant collection where high vacuum and low airflow are required. The term ‘high vacuum’ refers to the high vacuum and low airflow used to catch, transport and filter fumes, dust and other particles.

Can't find what you're looking for? Contact us, and we'll be happy to help!

Straight duct, including flanges, clips, and gaskets to be used in process ventilation, dust collection, and fume extraction systems. Nordfab Mild Steel ducting systems feature a 2 mm or 3 mm thick wall that can tolerate abrasive materials and are designed for challenging dust collection / ventilation applications. The Mild Steel ducting components are available with painted surface or with stainless steel construction, which is well suited for extraction in commercial kitchens.

Can't find what  you're looking for? Contact us, and we'll be happy to help!

Nordfab Quick-Fit ducting is used in a wide variety of dust collection, fume extraction, and process ventilation applications. Quick-Fit modular clip-together ducting system with rolled edges saves time and money on installation, is easy to clean out, is adaptable to existing ductwork, and is easily re-used during shop floor reconfigurations - providing one of the lowest life cycle costs of any ducting product.

Ductwork is available in galvanised and stainless steel construction. Can't find what you're looking for? Contact us, and we'll be happy to help!

Straight duct, clips, and gaskets to be used in process ventilation, dust collection, and fume extraction systems. Comes with pre-drilled, loose FLI / FLN flanges at each end for ease of alignment and connection to other ducting components during installation. Nordfab flanged ductwork is typically used for larger diameters and used in high-pressure industrial ventilation systems where airtight connections are essential.

Can't find what you're looking for? Contact us, and we'll be happy to help!

Nordfab's Mild Steel bends allow airflow direction change in a run of a duct and are being used in process ventilation, dust collection, and fume extraction systems. The Mild Steel bends are available in 90°, 60°, 45°, 30°, and 15° angles. R= 1,5 x Ø and designed with either a 6 mm edge for easy clip connection or loose flanges. Nordfab Mild Steel ducting systems feature a 2 mm or 3 mm thick wall that can tolerate abrasive materials and are designed for challenging dust collection / ventilation applications. The Mild Steel ducting components are available with painted surface or with stainless steel construction, which is well suited for extraction in commercial kitchens.

Can't find what  you're looking for? Contact us, and we'll be happy to help!

Designed for machining and any other operations which create oil mists, Nordfab Quick-Fit Sealed (QFS) Ducting can significantly reduce risks of leakage from ducting. QFS features laser welded and caulked duct (solid seams eliminate leakage) and double sealing at duct connections. All bends, branches, reducers, and other products with joints or collars are epoxy caulked. When clipping the ductwork together, an additional nitrile gasket is placed between the parts to avoid leakage. The Quick-Fit Clip features a generoursly dimensioned sealing gasket held firmly in place by positive over-centre clamping action over the rolled collars at the duct ends to be joined. For added security, a locking pin may be inserted.

QFS modular clip-together components are designed with rolled edges, which saves time and money on installation, is easy to clean out, is adaptable to existing ductwork, and is easily re-used during shop floor reconfigurations - providing one of the lowest life cycle costs of any ducting product.

Can't find what you're looking for? Contact us and we'll be happy to help!

Nordfab's Flanged bends allow airflow direction change in a run of a duct. They come with pre-drilled, loose FLI / FLN flanges at each end for ease of alignment and connection to other ducting components during installation. Nordfab flanged ductwork is typically used for larger diameters and used in high-pressure industrial ventilation systems where airtight connections are essential.

Can't find what you're looking for? Contact us, and we'll be happy to help!

Straight duct, including telescopic duct, clips, and gaskets to be used in process ventilation, dust collection, and fume extraction systems. The FB duct is designed with 6 mm edge for easy clip connection. Nordfab FB is also known as flat lip or lipped system duct. The FB Clips allow for a quick installation, as they easily connects two ducting components together.

Can't find what you're looking for? Contact us, and we'll be happy to help!

Nordfab's Quick-Fit Sealed (QFS) bends, pressed or segmented, allow airflow direction change in a run of a duct. They are designed for machining and any other operations which create oil mists, as they significantly reduce risks of leakage from ducting. QFS features laser welded and caulked duct (solid seams eliminate leakage) and double sealing at duct connections. All bends are epoxy caulked. QFS Bends are available in galvanised and stainless steel construction,  90°, 60°, 45°, 30°, and 15° with Quick-Fit rolled ends. R = 1,5 x Ø.

Can't find what you're looking for? Contact us, and we'll be happy to help!

Nordfab High Vacuum (HV) Bends are available in 45° or 90° angles and used for air contaminant collection where high vacuum and low airflow are required. The term ‘high vacuum’ refers to the high vacuum and low airflow used to catch, transport and filter fumes, dust and other particles.

Can't find what you're looking for? Contact us, and we'll be happy to help!

Straight duct, including telescopic duct, clips, and gaskets to be used in process ventilation, dust collection, and fume extraction systems. Our standard sizes ranges from 80 mm to 710 mm in diameter and our ductwork is available in galvanised and stainless steel construction. Can't find what you're looking for?

Contact us, and we'll be happy to help!

Nordfab Mild Steel branches are used to port to machine outlets or other duct lines. They are being used in process ventilation, dust collection, and fume extraction systems. Nordfab Mild Steel ducting systems feature a 2 mm or 3 mm thick wall that can tolerate abrasive materials and are designed for challenging dust collection / ventilation applications. The Mild Steel ducting components are available with painted surface or with stainless steel construction, which is well suited for extraction in commercial kitchens.

Can't find what  you're looking for? Contact us, and we'll be happy to help!

The FB Duct System is used in dust collection, process ventilation, and fume extraction systems in a wide variety of industries. Nordfab FB Ducting features a flat edge on the connecting ends which can be connected by a clip. Clip connections allow fast assembly and for cleanouts, quick disassembly. Ductwork is available in galvanised and stainless steel constructions.

Can't find what you're looking for? Contact us, and we'll be happy to help!

Nordfab Quick-Fit Sealed (QFS) branches are used to port to machine outlets or other duct lines. They are designed for machining and any other operations which create oil mists, as they significantly reduce risks of leakage from ducting. QFS features laser welded and caulked duct (solid seams eliminate leakage) and double sealing at duct connections. All branches are epoxy caulked.

Can't find what you're looking for? Contact us, and we'll be happy to help!

Nordfab High Vacuum (HV) Branches are available in standard 45° or 90° angles, and used for air contaminant collection where high vacuum and low airflow are required. The term ‘high vacuum’ refers to the high vacuum and low airflow used to catch, transport and filter fumes, dust and other particles.

Can't find what you're looking for? Contact us, and we'll be happy to help!

Nordfab Flanged branches are used to port to machine outlets or other duct lines. They come with pre-drilled, loose FLI / FLN flanges at each end for ease of alignment and connection to other ducting components during installation. Nordfab flanged ductwork is typically used for larger diameters and used in high-pressure industrial ventilation systems where airtight connections are essential.

Can't find what you're looking for? Contact us, and we'll be happy to help!

Nordfab Quick-Fit Sealed (QFS) adapters allow connections to machinery as well as ductwork with other connection types. They are designed for machining and any other operations which create oil mists, as they significantly reduce risks of leakage from ducting. QFS features laser welded and caulked duct (solid seams eliminate leakage) and double sealing at duct connections. All joints are epoxy caulked and when clipping the ductwork together, an additional nitrile gasket is placed between the parts to avoid leakage.

Can't find what you're looking for? Contact us, and we'll be happy to help!

Nordfab High Vacuum (HV) Adapters allow connections to machinery as well as varying sizes of ducting. They are being used for air contaminant collection where high vacuum and low airflow are required. The term ‘high vacuum’ refers to the high vacuum and low airflow used to catch, transport and filter fumes, dust and other particles.

Can't find what you're looking for? Contact us, and we'll be happy to help!

Nordfab's Quick-Fit (QF) bends, pressed or segmented, allow airflow direction change in a run of a duct. They are being used in process ventilation, dust collection, and fume extraction systems. Quick-Fit (QF) Bends are available in galvanised and stainless steel construction,  90°, 60°, 45°, 30°, and 15° with Quick-Fit rolled ends. R = 1,5 x Ø.

Can't find what you're looking for? Contact us, and we'll be happy to help!

Nordfab's FB bends, pressed or segmented, allow airflow direction change in a run of a duct and are being used in process ventilation, dust collection, and fume extraction systems. The FB bends are available in 90°, 60°, 45°, 30°, and 15° angles. R= 1,5 x Ø and designed with 6 mm edge for easy clip connection. The FB Clips allow for a quick installation, as they easily connects two ducting components together.

Can't find what you're looking for? Contact us, and we'll be happy to help!

Nordfab High Vacuum (HV) Duct Systems are used in applications in which the high vacuum and low airflow are being used to catch, transport, and filter fumes, dust, and other particles. Connections are made using couplings which seal securely. Ductwork is available in galvanised and stainless steel construction (304SS & 316L).

Can't find what you're looking for? Contact us, and we'll be happy to help!

Nordfab Flanged adapters allow connections to machinery as well as ductwork with other connection types. They come with pre-drilled, loose FLI / FLN flanges at each end for ease of alignment and connection to other ducting components during installation. Nordfab flanged ductwork is typically used for larger diameters and used in high-pressure industrial ventilation systems where airtight connections are essential.

Can't find what you're looking for? Contact us, and we'll be happy to help!

Nordfab Mild Steel adapters allow connections to machinery as well as ductwork with other connection types. They are being used in process ventilation, dust collection, and fume extraction systems. Nordfab Mild Steel ducting systems feature a 2 mm or 3 mm thick wall that can tolerate abrasive materials and are designed for challenging dust collection / ventilation applications. The Mild Steel ducting components are available with painted surface or with stainless steel construction, which is well suited for extraction in commercial kitchens.

Can't find what  you're looking for? Contact us, and we'll be happy to help!

Nordfab Quick-Fit (QF) branches are used to port to machine outlets or other duct lines. They are being used in process ventilation, dust collection, and fume extraction systems. Quick-Fit (QF) branches are available in galvanised and stainless steel construction.

Can't find what you're looking for? Contact us, and we'll be happy to help!

Nordfab FB branches are used to port to machine outlets or other duct lines. They are designed with 6 mm edge for easy clip connection and are being used in dust collection, process ventilation, and fume extraction systems in a wide variety of industries. The FB Clips allow for a quick installation, as they easily connects two ducting components together.

Can't find what you're looking for? Contact us, and we'll be happy to help!

Nordfab offers flexible ducting / hose and hose clamps for air contaminant collection where high vacuum and low airflow are required. The term ‘high vacuum’ refers to the high vacuum and low airflow used to catch, transport and filter fumes, dust and other particles.

Can't find what you're looking for? Contact us, and we'll be happy to help!

Nordfab offers various diverter valves which are being used in process ventilation, dust collection, and fume extraction systems where airflow redirection is required. They can eith be automatical or manual. Nordfab Mild Steel ducting systems feature a 2 mm or 3 mm thick wall that can tolerate abrasive materials and are designed for challenging dust collection / ventilation applications. The Mild Steel ducting components are available with painted surface or with stainless steel construction, which is well suited for extraction in commercial kitchens.

Can't find what  you're looking for? Contact us, and we'll be happy to help!

Nordfab Quick-Fit Sealed (QFS) dampers, manual or automatic, allow regulation of the volume of airflow through a section of ductwork. They are designed for machining and any other operations which create oil mists, as they significantly reduce risks of leakage from ducting. QFS features laser welded and caulked duct (solid seams eliminate leakage) and double sealing at duct connections. All joints are epoxy caulked and when clipping the ductwork together, an additional nitrile gasket is placed between the parts to avoid leakage.

Can't find what you're looking for? Contact us, and we'll be happy to help!

Nordfab Mild Steel ducting systems feature a 2 mm or 3 mm thick wall that can tolerate abrasive materials and are designed for challenging dust collection / ventilation applications. The Mild Steel ducting components are available with painted surface or with stainless steel construction, which is well suited for extraction in commercial kitchens.

Can't find what  you're looking for? Contact us, and we'll be happy to help!

Nordfab offers various of accessories for our Flanged ducting system. All components come with pre-drilled, loose FLI / FLN flanges at each end for ease of alignment and connection to other ducting components during installation. Nordfab flanged ductwork is typically used for larger diameters and used in high-pressure industrial ventilation systems where airtight connections are essential.

Can't find what you're looking for? Contact us, and we'll be happy to help!

Nordfab offers Dampers for use in High Vacuum (HV) Ducting Systems. Manual or Automatic Dampers allow regulation of the volume of airflow through a section of ductwork. The term ‘high vacuum’ refers to the high vacuum and low airflow used to catch, transport and filter fumes, dust and other particles.

Can't find what you're looking for? Contact us, and we'll be happy to help!

Nordfab offer various installation products for ducting systems being used in process ventilation, dust collection, and fume extraction systems.

Can't find what you're looking for? Contact us, and we'll be happy to help!

Nordfab offers flexible ducting / hose and hose clamps for use in  process ventilation, dust collection, and fume extraction systems.

Can't find what you're looking for? Contact us, and we'll be happy to help!

Nordfab Quick-Fit (QF) adapters allow connections to machinery as well as ductwork with other connection types. They are being used in process ventilation, dust collection, and fume extraction systems. Quick-Fit (QF) adapters are available in galvanised and stainless steel construction.

Can't find what you're looking for? Contact us, and we'll be happy to help!

Nordfab FB adapters allow connections to machinery as well as ductwork with other connection types. They are designed with 6 mm edge for easy clip connection and are being used in dust collection, process ventilation, and fume extraction systems in a wide variety of industries. The FB Clips allow for a quick installation, as they easily connects two ducting components together.

Can't find what you're looking for? Contact us, and we'll be happy to help!

Nordfab flanged ductwork is typically used for larger diameters and used in high-pressure industrial ventilation systems where airtight connections are essential. Nordfab Flanged Ducting features an industry standard flange on the ends (FLI or FLN) and is available in galvanized or stainless steel.

Can't find what you're looking for? Contact us, and we'll be happy to help!

Nordfab offers various installation products for Quick-Fit Sealed (QFS) ducting systems.

Can't find what you're looking for? Contact us, and we'll be happy to help!

Nordfab offer various installation products for High Vacuum (HV) ducting systems. The term ‘high vacuum’ refers to the high vacuum and low airflow used to catch, transport and filter fumes, dust and other particles.

Can't find what you're looking for? Contact us, and we'll be happy to help!

Nordfab's Quick-Fit Sealed (QFS) Oil Mist Drain extracts oil to minimise the amount of oil flowing through the process ventilation system. QFS features laser welded and caulked duct (solid seams eliminate leakage) and double sealing at duct connections. All joints are epoxy caulked and when clipping the ductwork together, an additional nitrile gasket is placed between the parts to avoid leakage.

Can't find what you're looking for? Contact us, and we'll be happy to help!

Nordfab Quick-Fit (QF) dampers, manual or automatic, allow regulation of the volume of airflow through a section of ductwork. They are being used in process ventilation, dust collection, and fume extraction systems.

Can't find what you're looking for? Contact us, and we'll be happy to help!

Nordfab FB dampers, manual or automatic, allow regulation of the volume of airflow through a section of ductwork. They are being used in process ventilation, dust collection, and fume extraction systems.

Can't find what you're looking for? Contact us, and we'll be happy to help!

Nordfab FB suction hood is an adaptor which allows the attachment of multiple hose attachments. They are being used in process ventilation, dust collection, and fume extraction systems.

Nordfab Quick-Fit (QF) suction hood is an adaptor which allows the attachment of multiple hose attachments. They are being used in process ventilation, dust collection, and fume extraction systems.

Can't find what you're looking for? Contact us, and we'll be happy to help!

Nordfab offers various diverter valves which are being used in process ventilation, dust collection, and fume extraction systems where airflow redirection is required. They either have automatical or manual valves.

Can't find what you're looking for? Contact us, and we'll be happy to help!

Nordfab offers various diverter valves which are being used in process ventilation, dust collection, and fume extraction systems where airflow redirection is required. They can eith be automatical or manual.

Can't find what you're looking for? Contact us, and we'll be happy to help!

Nordfab offers various of accessories for our FB ducting system being used in process ventilation, dust collection, and fume extraction systems. Some of the more popular accessories include jet cowls, back pressure flap valves, silencers, spark traps, and other ductwork for special applications.

Can't find what you're looking for? Contact us, and we'll be happy to help!

Nordfab offers various of accessories for our Quick-Fit (QF) ducting system being used in process ventilation, dust collection, and fume extraction systems. Some of the more popular accessories include jet cowls, back pressure flap valves, silencers, spark traps, and other ductwork for special applications.

Can't find what you're looking for? Contact us, and we'll be happy to help!

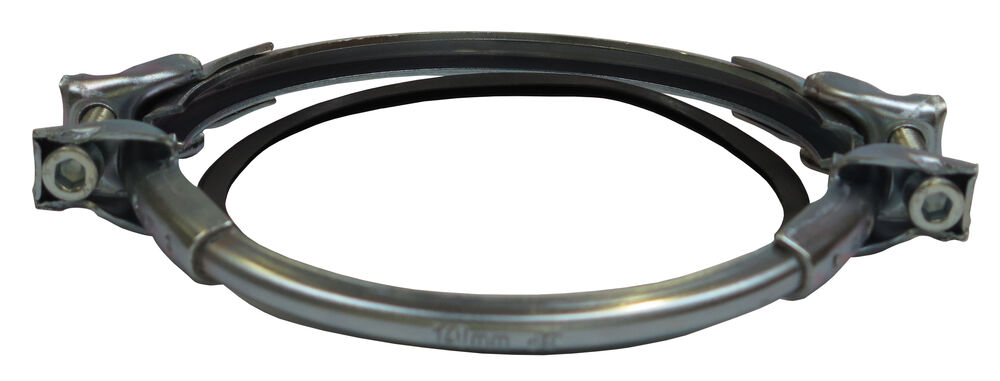

Clips for 2mm - 3mm Mild Steel FSDB
