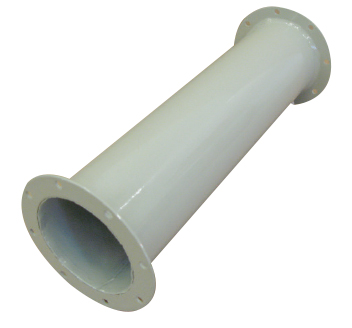

Mild steel flanged welded duct for industrial ventilation, vacuum and pneumatic conveying. ø150 - 1000 mm. L=2/1/0,5 m. T = 3mm, steel quality SS1312. 50µm RAL7032 grey finish. Fixed flanges, type FLI mild steel.

Mild Steel ducting is often chosen for its affordability compared to other materials. If cost is a significant factor in the process ventilation / dust extraction project and there is no requirement of corrosion resistance, Mild Steel ducting is a cost-effective solution.

• Flanged welded duct, with fixed flanges, type FLI.
• Steel quality SS1312.
• Base and top coat in RAL 7032 grey, 50 microns.
• Max. working temperature of the surface treatment is 80°C.
• For assembly of duct and fittings with flanges use bolt, nut and flange gasket FSAZ.
