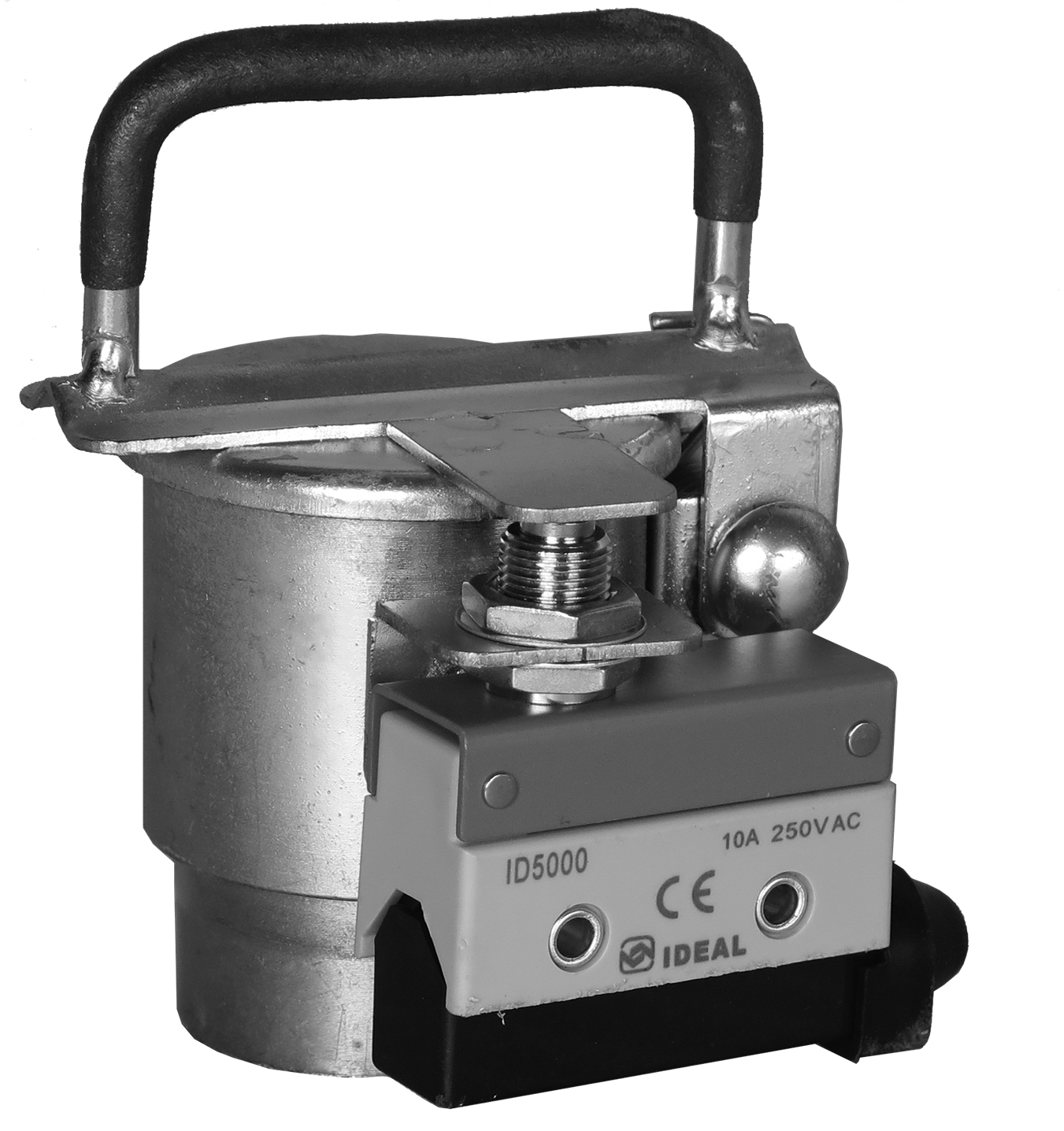

The HV Manual Leaf Valve with a microswitch provides a positive seal in Nordfab High Vacuum pipe systems.  Ø63 - 76 mm, electrically zinc coated with spring-loaded lock.

Valve is electrically zinc coated with spring-loaded lock. Connected with Hose Connector MDKS.

Article numbers for sizes available:
40136022 063-063 KLVM
40136023 076-063 KLVM
40130624 076-076 KLVM
