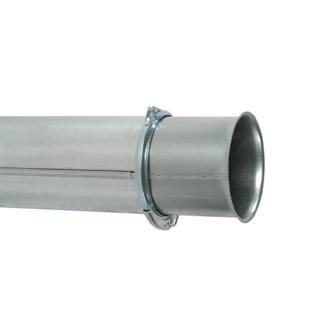

FB Telescopic Laser Welded Duct, 6mm edge

The FB Duct System is used in dust collection / process ventilation systems in a wide variety of industries. Nordfab FB Ducting features a flat edge on the connecting ends.

FB Telescopic Duct including quicklock is connected to other ducting components using FB Clips.

Galvanised steel construction with laser welded seam
Available in sizes Ø 080-350 with steel thickness 0,7 mm and Ø 400 with thickness 0,9 mm
Length is 500mm

ORDER EXAMPLE:
Duct W telescopic Galv 0,7mm 150FB L=0,5m

ø A (mm) Material T mm L mm Weight(kg) Item No.
80 Galv 0,7mm 500 1,06 8210004363‍
100 Galv 0,7mm 500 1,33 8210004364‍
120 Galv 0,7mm 500 1,57 8210004365‍
125 Galv 0,7mm 500 1,61 8210004366‍
140 Galv 0,7mm 500 1,81 8210004367‍
150 Galv 0,7mm 500 1,95 8210004368‍
160 Galv 0,7mm 500 2,05 8210004369‍
180 Galv 0,7mm 500 2,05 8210004370‍
200 Galv 0,7mm 500 2,30 8210004371‍
225 Galv 0,7mm 500 2,53 8210004372‍
250 Galv 0,7mm 500 2,90 8210004373‍
300 Galv 0,7mm 500 3,75 8210004374‍
315 Galv 0,7mm 500 3,93 8210004375‍
350 Galv 0,7mm 500 4,52 8210004376‍
400 Galv 0,9mm 500 5,11 8210004377‍
