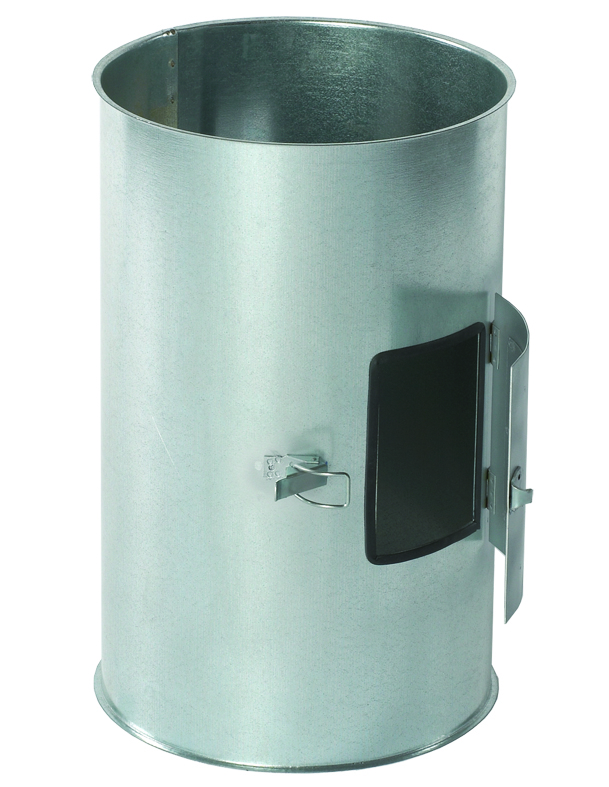

FB Duct with Access Door

The FB Duct System is used in dust collection / process ventilation systems in a wide variety of industries.

Galvanised steel construction
Available in sizes Ø 080-315 with steel thickness 0,7 mm and Ø 350-600 with thickness 0,9 mm
MFL also available

ORDER EXAMPLE:
Duct W Galv 0,7mm 150FB L=0,5m access Door

ø A (mm)	Material	T mm	Weight(kg)	Item No.
80	Galv	0,7mm	0,88	8210003738‍
100	Galv	0,7mm	1,06	8210003739‍
120	Galv	0,7mm	1,22	8210003740‍
125	Galv	0,7mm	1,28	8210003741‍
140	Galv	0,7mm	1,41	8210003742‍
150	Galv	0,7mm	1,50	8210003743‍
160	Galv	0,7mm	1,48	8210003744‍
180	Galv	0,7mm	1,68	8210003745‍
200	Galv	0,7mm	1,82	8210003746‍
225	Galv	0,7mm	2,04	8210003747‍
250	Galv	0,7mm	2,25	8210003748‍
300	Galv	0,7mm	2,68	8210003749‍
315	Galv	0,7mm	3,88	8210003750‍
350	Galv	0,9mm	3,98	8210003751‍
400	Galv	0,9mm	4,60	8210003752‍
450	Galv	0,9mm	5,25	8210003753‍
500	Galv	0,9mm	5,66	8210003754‍
550	Galv	0,9mm	6,25	8210003755‍
600	Galv	0,9mm	7,35	8210003756‍
