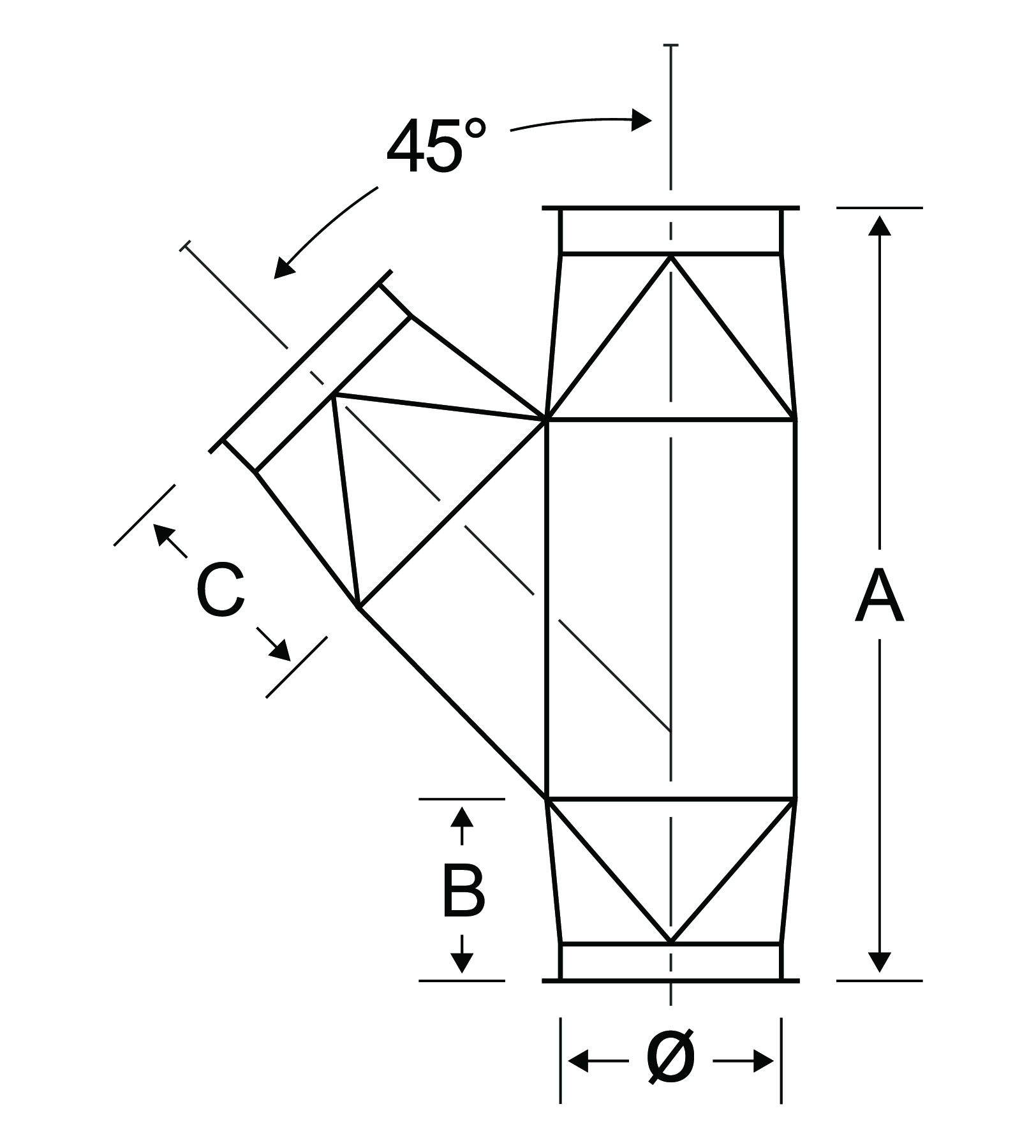

Manually divert airstream in ventilation duct.  Ø125 -  500 mm, 45°, 2 and 3 mm painted mild steel construction.

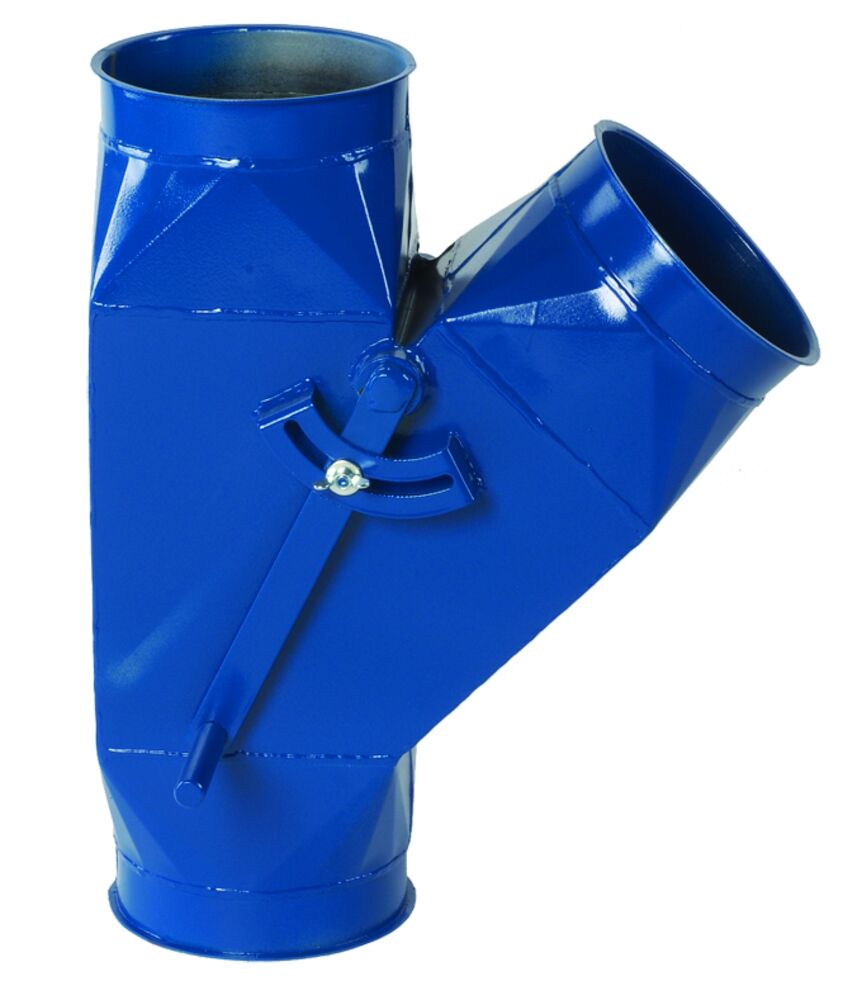

The RGSM manual diverter valve is designed for quick changes between two streams and ideal for conveying dust particulate. Nordfab's diverters meet EU's machinery directive (98/37/EC) and as standard are manufactured in 2 and 3 mm painted mild steel.

Operation
• The diverter valve should be connected to clean and dry compressed air
• Normal working pressure: 0.6 MPa (6 bar)
• Maximum pressure: 1.0 MPa (10 bar)
• Temp. range: +80° C (dry air +20° C)

Finish
• RAL5010 blue
