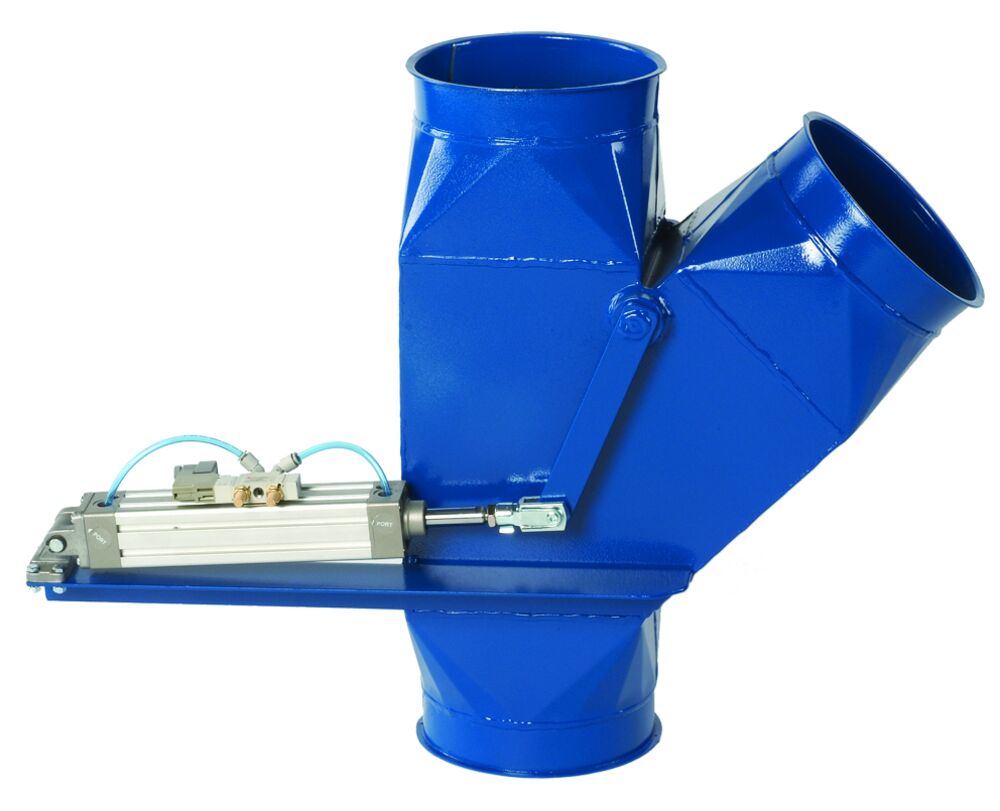

RGBM Automatic Diverter Valve

The RGBM automatic diverter valves are equipped with actuators or control systems that automatically adjust the position of the diverter based on preset conditions or sensor feedback. They can respond to changes in airflow, pressure, temperature, or other environmental factors without requiring manual intervention. They are well-suited for applications where frequent adjustments are required or where precise control is essential. They are especially useful in systems with variable air volume or where airflow needs to be dynamically adjusted based on changing conditions. Mostly suitable for wood dust/shaving applications, we cannot guarantee our diverters are leak free.

Nordfab's diverters meet EU's machinery directive (98/37/EC) and as standard are manufactured in 2 and 3 mm painted mild steel.

Operation
• The diverter valve should be connected to clean and dry compressed air
• Normal working pressure: 0.6 MPa (6 bar)
• Maximum pressure: 1.0 MPa (10 bar)
• Temp. range: +80° C (dry air +20° C)

Finish
• RAL5010 blue
