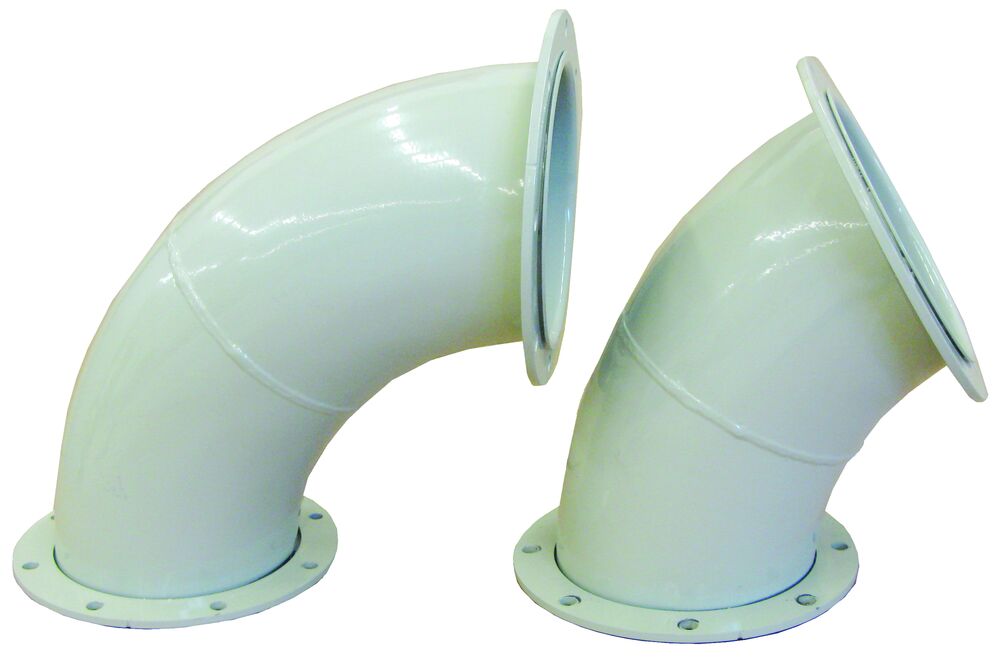

Mild Steel Bend BSFE

• Steel quality SS1312.
• Loose flanges, type FSSA.
• Base and top coat RAL 7032 grey, 50 microns.
• Max. operating temperature for the finish is 80°C.
• For assembly of duct and fittings with flanges use bolt, nut and flange gasket FSAZ
• Dimensions Ø 150-200 is pressed execution then segments built.
• R (radius) = 1.5 x d (diameter).

ORDER EXAMPLE:
Bend Pressed MS 3mm 200FLI 15Deg R=1,5 RAL 7032

ø A (mm) Angle degree Center line radius Material T mm Weight(kg) Item No.
150 90 1.5 MS 3mm 5,40 8210002783‍
150 60 1.5 MS 3mm 4,10 8210002782‍
150 45 1.5 MS 3mm 3,20 8210002781‍
150 30 1.5 MS 3mm 2,60 8210002780‍
150 15 1.5 MS 3mm 1,90 8210002779‍
160 90 1.5 MS 3mm 5,90 8210002788‍
160 60 1.5 MS 3mm 4,40 8210002787‍
160 45 1.5 MS 3mm 3,50 8210002786‍
160 30 1.5 MS 3mm 2,80 8210002785‍
160 15 1.5 MS 3mm 2,10 8210002784‍
180 90 1.5 MS 3mm 7,50 8210002793‍
180 60 1.5 MS 3mm 5,60 8210002792‍
180 45 1.5 MS 3mm 4,50 8210002791‍
180 30 1.5 MS 3mm 3,60 8210002790‍
180 15 1.5 MS 3mm 2,60 8210002789‍
200 90 1.5 MS 3mm 8,90 8210002798‍
200 60 1.5 MS 3mm 6,70 8210002797‍
200 45 1.5 MS 3mm 5,30 8210002796‍
200 30 1.5 MS 3mm 4,30 8210002795‍
200 15 1.5 MS 3mm 3,10 8210002794‍
225 90 1.5 MS 3mm 10,90 8210002803‍
225 60 1.5 MS 3mm 8,20 8210002802‍
225 45 1.5 MS 3mm 6,50 8210002801‍
225 30 1.5 MS 3mm 5,20 8210002800‍
225 15 1.5 MS 3mm 3,80 8210002799‍
250 90 1.5 MS 3mm 12,80 8210002808‍
250 60 1.5 MS 3mm 9,60 8210002807‍
250 45 1.5 MS 3mm 7,70 8210002806‍
250 30 1.5 MS 3mm 6,10 8210002805‍
250 15 1.5 MS 3mm 4,50 8210002804‍
300 90 1.5 MS 3mm 18,10 8210002813‍
300 60 1.5 MS 3mm 13,60 8210002812‍
300 45 1.5 MS 3mm 10,90 8210002811‍
300 30 1.5 MS 3mm 8,70 8210002810‍
300 15 1.5 MS 3mm 6,30 8210002809‍
315 90 1.5 MS 3mm 20,70 8210002818‍
315 60 1.5 MS 3mm 15,50 8210002817‍
315 45 1.5 MS 3mm 12,40 8210002816‍
315 30 1.5 MS 3mm 9,90 8210002815‍
315 15 1.5 MS 3mm 7,20 8210002814‍
350 90 1.5 MS 3mm 25,70 8210002823‍
350 60 1.5 MS 3mm 19,30 8210002822‍
350 45 1.5 MS 3mm 15,40 8210002821‍
350 30 1.5 MS 3mm 12,30 8210002820‍
350 15 1.5 MS 3mm 9,00 8210002819‍
400 90 1.5 MS 3mm 32,80 8210002828‍
400 60 1.5 MS 3mm 24,60 8210002827‍
400 45 1.5 MS 3mm 19,70 8210002826‍
400 30 1.5 MS 3mm 15,70 8210002825‍
400 15 1.5 MS 3mm 11,50 8210002824‍
450 90 1.5 MS 3mm 41,00 8210002833‍
450 60 1.5 MS 3mm 30,80 8210002832‍
450 45 1.5 MS 3mm 24,60 8210002831‍
450 30 1.5 MS 3mm 19,70 8210002830‍
450 15 1.5 MS 3mm 14,40 8210002829‍
500 90 1.5 MS 3mm 50,00 8210002838‍
500 60 1.5 MS 3mm 37,50 8210002837‍
500 45 1.5 MS 3mm 30,00 8210002836‍
500 30 1.5 MS 3mm 24,00 8210002835‍
500 15 1.5 MS 3mm 17,50 8210002834‍
550 90 1.5 MS 3mm 60,00 8210002843‍
550 60 1.5 MS 3mm 45,00 8210002842‍
550 45 1.5 MS 3mm 36,00 8210002841‍
550 30 1.5 MS 3mm 28,80 8210002840‍
550 15 1.5 MS 3mm 21,00 8210002839‍
600 90 1.5 MS 3mm 70,80 8210002848‍
600 60 1.5 MS 3mm 53,10 8210002847‍
600 45 1.5 MS 3mm 42,50 8210002846‍
600 30 1.5 MS 3mm 34,00 8210002845‍
600 15 1.5 MS 3mm 24,80 8210002844‍
630 90 1.5 MS 3mm 77,50 8210002853‍
630 60 1.5 MS 3mm 58,10 8210002852‍
630 45 1.5 MS 3mm 46,50 8210002851‍
630 30 1.5 MS 3mm 37,20 8210002850‍
630 15 1.5 MS 3mm 27,10 8210002849‍
650 90 1.5 MS 3mm 82,60 8210002858‍
650 60 1.5 MS 3mm 62,00 8210002857‍
650 45 1.5 MS 3mm 49,60 8210002856‍
650 30 1.5 MS 3mm 39,60 8210002855‍
650 15 1.5 MS 3mm 28,90 8210002854‍
700 90 1.5 MS 3mm 95,30 8210002863‍
700 60 1.5 MS 3mm 71,50 8210002862‍
700 45 1.5 MS 3mm 57,20 8210002861‍
700 30 1.5 MS 3mm 45,70 8210002860‍
700 15 1.5 MS 3mm 33,40 8210002859‍
750 90 1.5 MS 3mm 108,40 8210002868‍
750 60 1.5 MS 3mm 81,30 8210002867‍
750 45 1.5 MS 3mm 65,00 8210002866‍
750 30 1.5 MS 3mm 52,00 8210002865‍
750 15 1.5 MS 3mm 37,90 8210002864‍
800 90 1.5 MS 3mm 125,40 8210002873‍
800 60 1.5 MS 3mm 94,10 8210002872‍
800 45 1.5 MS 3mm 75,20 8210002871‍
800 30 1.5 MS 3mm 60,20 8210002870‍
800 15 1.5 MS 3mm 43,90 8210002869‍
850 90 1.5 MS 3mm 140,90 8210002878‍
850 60 1.5 MS 3mm 105,70 8210002877‍
850 45 1.5 MS 3mm 84,50 8210002876‍
850 30 1.5 MS 3mm 67,60 8210002875‍
850 15 1.5 MS 3mm 49,30 8210002874‍
900 90 1.5 MS 3mm 157,50 8210002883‍
900 60 1.5 MS 3mm 118,10 8210002882‍
900 45 1.5 MS 3mm 94,50 8210002881‍
900 30 1.5 MS 3mm 75,60 8210002880‍
900 15 1.5 MS 3mm 55,10 8210002879‍
1000 90 1.5 MS 3mm 193,70 8210002888‍
1000 60 1.5 MS 3mm 145,30 8210002887‍
1000 45 1.5 MS 3mm 116,20 8210002886‍
1000 30 1.5 MS 3mm 93,00 8210002885‍
1000 15 1.5 MS 3mm 67,80 8210002884‍
