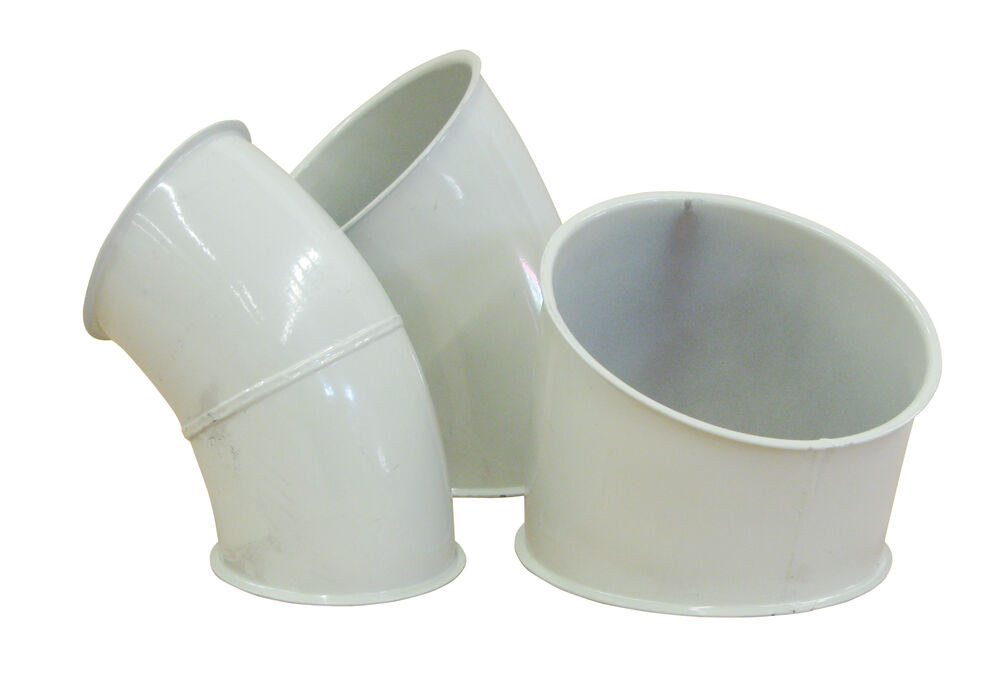

Mild Steel Bend BSAD

• Steel quality SS1312.
• Strap Edge.
• Base and top coat in RAL 7032 grey, 50 microns.
• Max. working temperature of the surface treatment is 80°C.
• For assembly of duct and fittings with clipped edge use FSFE or FSDB clips.
• The dimensions Ø 100-300 is pressed execution then segments built.
• R (radius) = 1.5 x d (diameter).

ORDER EXAMPLE:
Bend Seg MS 2mm 450FB 90Deg R=1,5 RAL 7032

ø A (mm) Angle degree Center line radius Material T mm Weight(kg) Item No.
100 90 1.5 MS 2mm 1,20 8210002251‍
100 60 1.5 MS 2mm 0,90 8210002250‍
100 45 1.5 MS 2mm 0,60 8210002249‍
100 30 1.5 MS 2mm 0,40 8210002248‍
100 15 1.5 MS 2mm 0,20 8210002247‍
120 90 1.5 MS 2mm 1,80 8210002256‍
120 60 1.5 MS 2mm 1,20 8210002255‍
120 45 1.5 MS 2mm 0,90 8210002254‍
120 30 1.5 MS 2mm 0,60 8210002253‍
120 15 1.5 MS 2mm 0,30 8210002252‍
125 90 1.5 MS 2mm 2,00 8210002261‍
125 60 1.5 MS 2mm 1,30 8210002260‍
125 45 1.5 MS 2mm 1,00 8210002259‍
125 30 1.5 MS 2mm 0,70 8210002258‍
125 15 1.5 MS 2mm 0,40 8210002257‍
140 90 1.5 MS 2mm 2,90 8210002266‍
140 60 1.5 MS 2mm 2,00 8210002265‍
140 45 1.5 MS 2mm 1,40 8210002264‍
140 30 1.5 MS 2mm 1,00 8210002263‍
140 15 1.5 MS 2mm 0,50 8210002262‍
150 90 1.5 MS 2mm 3,20 8210002271‍
150 60 1.5 MS 2mm 2,20 8210002270‍
150 45 1.5 MS 2mm 1,60 8210002269‍
150 30 1.5 MS 2mm 1,10 8210002268‍
150 15 1.5 MS 2mm 0,70 8210002267‍
160 90 1.5 MS 2mm 3,20 8210002276‍
160 60 1.5 MS 2mm 2,20 8210002275‍
160 45 1.5 MS 2mm 1,60 8210002274‍
160 30 1.5 MS 2mm 1,10 8210002273‍
160 15 1.5 MS 2mm 0,70 8210002272‍
180 90 1.5 MS 2mm 4,10 8210002281‍
180 60 1.5 MS 2mm 2,70 8210002280‍
180 45 1.5 MS 2mm 2,10 8210002279‍
180 30 1.5 MS 2mm 1,40 8210002278‍
180 15 1.5 MS 2mm 0,80 8210002277‍
200 90 1.5 MS 2mm 5,00 8210002286‍
200 60 1.5 MS 2mm 3,40 8210002285‍
200 45 1.5 MS 2mm 2,50 8210002284‍
200 30 1.5 MS 2mm 1,70 8210002283‍
200 15 1.5 MS 2mm 0,90 8210002282‍
225 90 1.5 MS 2mm 6,30 8210002291‍
225 60 1.5 MS 2mm 4,30 8210002290‍
225 45 1.5 MS 2mm 3,15 8210002289‍
225 30 1.5 MS 2mm 2,15 8210002288‍
225 15 1.5 MS 2mm 1,12 8210002287‍
250 90 1.5 MS 2mm 7,60 8210002296‍
250 60 1.5 MS 2mm 5,20 8210002295‍
250 45 1.5 MS 2mm 3,80 8210002294‍
250 30 1.5 MS 2mm 2,60 8210002293‍
250 15 1.5 MS 2mm 1,40 8210002292‍
300 90 1.5 MS 2mm 11,20 8210002301‍
300 60 1.5 MS 2mm 7,50 8210002300‍
300 45 1.5 MS 2mm 5,60 8210002299‍
300 30 1.5 MS 2mm 3,80 8210002298‍
300 15 1.5 MS 2mm 1,90 8210002297‍
315 90 1.5 MS 2mm 13,10 8210002306‍
315 60 1.5 MS 2mm 8,60 8210002305‍
315 45 1.5 MS 2mm 6,50 8210002304‍
315 30 1.5 MS 2mm 4,40 8210002303‍
315 15 1.5 MS 2mm 2,20 8210002302‍
350 90 1.5 MS 2mm 15,70 8210002311‍
350 60 1.5 MS 2mm 10,40 8210002310‍
350 45 1.5 MS 2mm 7,80 8210002309‍
350 30 1.5 MS 2mm 5,20 8210002308‍
350 15 1.5 MS 2mm 2,60 8210002307‍
400 90 1.5 MS 2mm 19,60 8210002316‍
400 60 1.5 MS 2mm 13,10 8210002315‍
400 45 1.5 MS 2mm 9,80 8210002314‍
400 30 1.5 MS 2mm 6,50 8210002313‍
400 15 1.5 MS 2mm 3,30 8210002312‍
450 90 1.5 MS 2mm 24,20 8210002321‍
450 60 1.5 MS 2mm 16,20 8210002320‍
450 45 1.5 MS 2mm 12,10 8210002319‍
450 30 1.5 MS 2mm 8,10 8210002318‍
450 15 1.5 MS 2mm 4,00 8210002317‍
500 90 1.5 MS 2mm 29,90 8210002326‍
500 60 1.5 MS 2mm 20,00 8210002325‍
500 45 1.5 MS 2mm 15,00 8210002324‍
500 30 1.5 MS 2mm 10,00 8210002323‍
500 15 1.5 MS 2mm 5,00 8210002322‍
550 90 1.5 MS 2mm 36,20 8210002331‍
550 60 1.5 MS 2mm 24,20 8210002330‍
550 45 1.5 MS 2mm 18,10 8210002329‍
550 30 1.5 MS 2mm 15,10 8210002328‍
550 15 1.5 MS 2mm 6,00 8210002327‍
600 90 1.5 MS 2mm 43,10 8210002336‍
600 60 1.5 MS 2mm 28,80 8210002335‍
600 45 1.5 MS 2mm 21,60 8210002334‍
600 30 1.5 MS 2mm 14,40 8210002333‍
600 15 1.5 MS 2mm 7,20 8210002332‍
630 90 1.5 MS 2mm 43,02 8210002341‍
630 60 1.5 MS 2mm 34,26 8210002340‍
630 45 1.5 MS 2mm 20,32 8210002339‍
630 30 1.5 MS 2mm 14,12 8210002338‍
630 15 1.5 MS 2mm 6,92 8210002337‍
650 90 1.5 MS 2mm 54,74 8210002346‍
650 60 1.5 MS 2mm 38,04 8210002345‍
650 45 1.5 MS 2mm 29,44 8210002344‍
650 30 1.5 MS 2mm 16,94 8210002343‍
650 15 1.5 MS 2mm 8,44 8210002342‍
700 90 1.5 MS 2mm 58,90 8210002351‍
700 60 1.5 MS 2mm 39,30 8210002350‍
700 45 1.5 MS 2mm 29,50 8210002349‍
700 30 1.5 MS 2mm 19,70 8210002348‍
700 15 1.5 MS 2mm 9,90 8210002347‍
750 90 1.5 MS 2mm 67,70 8210002356‍
750 60 1.5 MS 2mm 45,20 8210002355‍
750 45 1.5 MS 2mm 34,00 8210002354‍
750 30 1.5 MS 2mm 22,70 8210002353‍
750 15 1.5 MS 2mm 11,50 8210002352‍
800 90 1.5 MS 2mm 76,80 8210002361‍
800 60 1.5 MS 2mm 51,20 8210002360‍
800 45 1.5 MS 2mm 38,40 8210002359‍
800 30 1.5 MS 2mm 25,60 8210002358‍
800 15 1.5 MS 2mm 12,80 8210002357‍
850 90 1.5 MS 2mm 86,80 8210002366‍
850 60 1.5 MS 2mm 57,80 8210002365‍
850 45 1.5 MS 2mm 43,40 8210002364‍
850 30 1.5 MS 2mm 28,90 8210002363‍
850 15 1.5 MS 2mm 14,50 8210002362‍
900 90 1.5 MS 2mm 97,40 8210002371‍
900 60 1.5 MS 2mm 65,00 8210002370‍
900 45 1.5 MS 2mm 48,80 8210002369‍
900 30 1.5 MS 2mm 32,50 8210002368‍
900 15 1.5 MS 2mm 16,30 8210002367‍
950 90 1.5 MS 2mm 107,70 8210002376‍
950 60 1.5 MS 2mm 71,60 8210002375‍
950 45 1.5 MS 2mm 53,50 8210002374‍
950 30 1.5 MS 2mm 35,40 8210002373‍
950 15 1.5 MS 2mm 17,40 8210002372‍
1000 90 1.5 MS 2mm 120,20 8210002381‍
1000 60 1.5 MS 2mm 80,10 8210002380‍
1000 45 1.5 MS 2mm 60,10 8210002379‍
1000 30 1.5 MS 2mm 40,10 8210002378‍
1000 15 1.5 MS 2mm 20,02 8210002377‍
