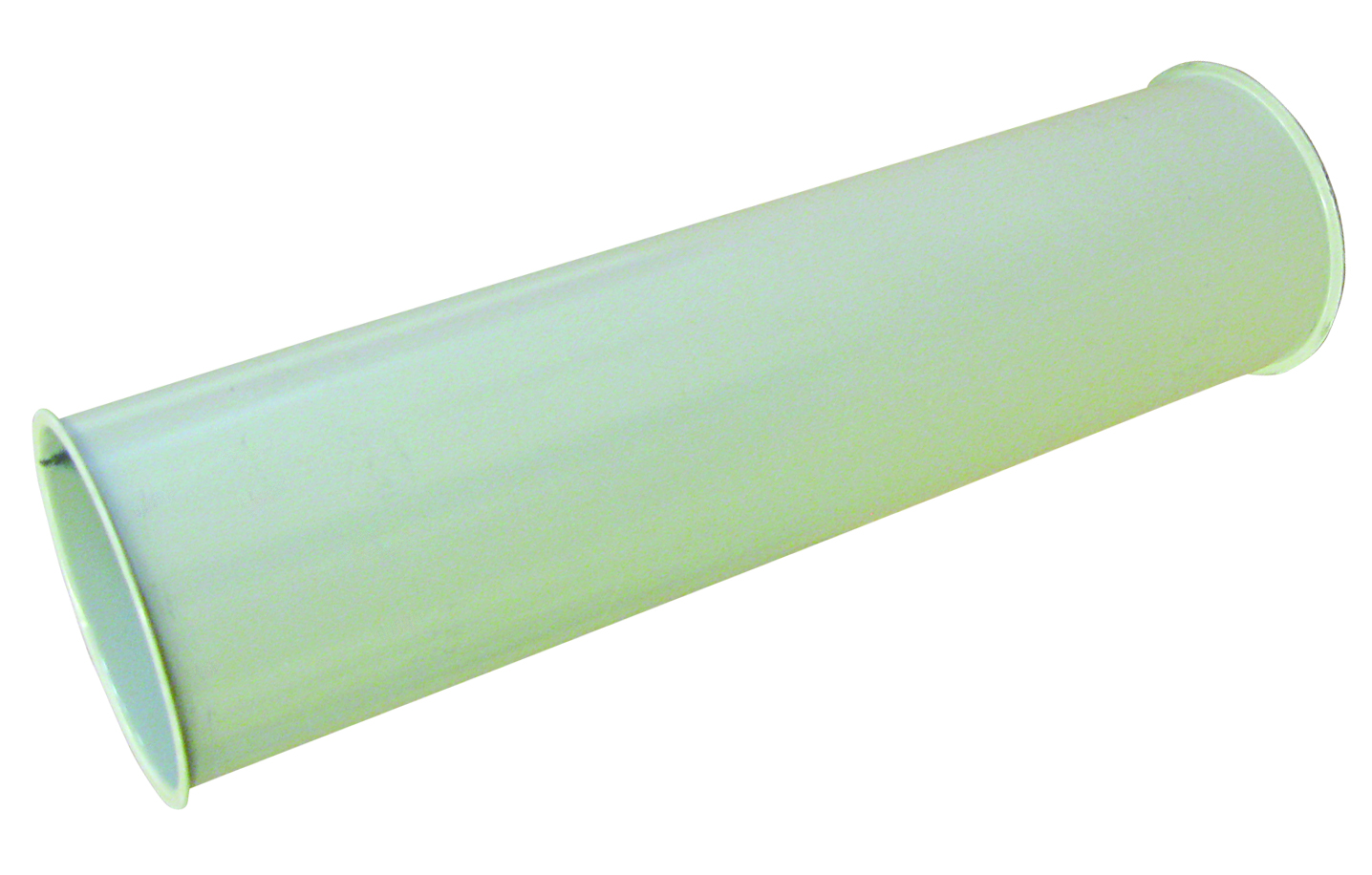

Svartplåt komponenter väljs ofta för att de är prisvärda jämfört med andra material. Om kostnaden är en viktig faktor i projektet för processventilation/dammutsugning och det inte finns något krav på korrosionsbeständighet, är kanaler av mjukt stål en kostnadseffektiv lösning.
- Svetsad kanal med klippt kant.
- Stålkvalitet SS1312.
- Grund- och toppskikt i RAL 7032 grå, 50 mikron.
- Max. arbetstemperatur för ytbehandlingen är 80°C.
- För montering av kanal och rördelar med klippt kant används FSFE eller FSDB Clips.
- För diametrar upp till 1000 mm.
| ø A (mm) | Material | Thickness | Length | Vikt kg | Art-nr |
|---|---|---|---|---|---|
| 100 | MS | 2mm | 2000 | 9,69 | 8240020910 |
| 100 | MS | 2mm | 1000 | 4,86 | 8240020909 |
| 100 | MS | 2mm | 500 | 2,42 | 8240020908 |
| 120 | MS | 2mm | 500 | 2,9 | 8240020911 |
| 120 | MS | 2mm | 2000 | 11,66 | 8240020913 |
| 120 | MS | 2mm | 1000 | 5,84 | 8240020912 |
| 125 | MS | 2mm | 500 | 3,03 | 8240020914 |
| 125 | MS | 2mm | 2000 | 12,16 | 8240020916 |
| 125 | MS | 2mm | 1000 | 6,09 | 8240020915 |
| 140 | MS | 2mm | 2000 | 13,64 | 8240020919 |
| 140 | MS | 2mm | 1000 | 6,83 | 8240020918 |
| 140 | MS | 2mm | 500 | 3,39 | 8240020917 |
| 150 | MS | 2mm | 1000 | 7,32 | 8240020921 |
| 150 | MS | 2mm | 500 | 3,64 | 8240020920 |
| 150 | MS | 2mm | 2000 | 14,62 | 8240020922 |
| 160 | MS | 2mm | 500 | 3,88 | 8240020923 |
| 160 | MS | 2mm | 1000 | 7,82 | 8240020924 |
| 160 | MS | 2mm | 2000 | 15,61 | 8240020925 |
| 180 | MS | 2mm | 2000 | 17,59 | 8240020928 |
| 180 | MS | 2mm | 1000 | 8,81 | 8240020927 |
| 180 | MS | 2mm | 500 | 4,37 | 8240020926 |
| 200 | MS | 2mm | 500 | 4,86 | 8240020929 |
| 200 | MS | 2mm | 2000 | 19,56 | 8240020931 |
| 200 | MS | 2mm | 1000 | 9,79 | 8240020930 |
| 225 | MS | 2mm | 2000 | 22,03 | 8240020934 |
| 225 | MS | 2mm | 1000 | 11,03 | 8240020933 |
| 225 | MS | 2mm | 500 | 5,47 | 8240020932 |
| 250 | MS | 2mm | 500 | 6,08 | 8240020935 |
| 250 | MS | 2mm | 2000 | 24,49 | 8240020937 |
| 250 | MS | 2mm | 1000 | 12,26 | 8240020936 |
| 300 | MS | 2mm | 1000 | 14,73 | 8240020939 |
| 300 | MS | 2mm | 500 | 7,31 | 8240020938 |
| 300 | MS | 2mm | 2000 | 29,43 | 8240020940 |
| 315 | MS | 2mm | 2000 | 30,91 | 8240020943 |
| 315 | MS | 2mm | 1000 | 15,47 | 8240020942 |
| 315 | MS | 2mm | 500 | 7,67 | 8240020941 |
| 350 | MS | 2mm | 1000 | 17,2 | 8240020945 |
| 350 | MS | 2mm | 2000 | 34,36 | 8240020946 |
| 350 | MS | 2mm | 500 | 8,53 | 8240020944 |
| 400 | MS | 2mm | 2000 | 39,3 | 8240020949 |
| 400 | MS | 2mm | 1000 | 19,67 | 8240020948 |
| 400 | MS | 2mm | 500 | 9,75 | 8240020947 |
| 450 | MS | 2mm | 2000 | 44,23 | 8240020952 |
| 450 | MS | 2mm | 1000 | 22,14 | 8240020951 |
| 450 | MS | 2mm | 500 | 10,98 | 8240020950 |
| 500 | MS | 2mm | 2000 | 49,17 | 8240020955 |
| 500 | MS | 2mm | 1000 | 24,6 | 8240020954 |
| 500 | MS | 2mm | 500 | 12,2 | 8240020953 |
| 550 | MS | 2mm | 2000 | 54,1 | 8240020958 |
| 550 | MS | 2mm | 1000 | 27,07 | 8240020957 |
| 550 | MS | 2mm | 500 | 13,42 | 8240020956 |
| 600 | MS | 2mm | 2000 | 59,04 | 8240020961 |
| 600 | MS | 2mm | 1000 | 29,54 | 8240020960 |
| 600 | MS | 2mm | 500 | 14,65 | 8240020959 |
| 630 | MS | 2mm | 500 | 15,38 | 8240020962 |
| 630 | MS | 2mm | 2000 | 62 | 8240020964 |
| 630 | MS | 2mm | 1000 | 31,02 | 8240020963 |
| 650 | MS | 2mm | 1000 | 32,01 | 8240020966 |
| 650 | MS | 2mm | 2000 | 63,97 | 8240020967 |
| 650 | MS | 2mm | 500 | 15,87 | 8240020965 |
| 700 | MS | 2mm | 500 | 17,09 | 8240020968 |
| 700 | MS | 2mm | 2000 | 68,91 | 8240020970 |
| 700 | MS | 2mm | 1000 | 34,48 | 8240020969 |
| 750 | MS | 2mm | 2000 | 73,84 | 8240020973 |
| 750 | MS | 2mm | 1000 | 36,95 | 8240020972 |
| 750 | MS | 2mm | 500 | 18,32 | 8240020971 |
| 800 | MS | 2mm | 1000 | 39,42 | 8240020975 |
| 800 | MS | 2mm | 500 | 19,54 | 8240020974 |
| 800 | MS | 2mm | 2000 | 78,78 | 8240020976 |
| 850 | MS | 2mm | 2000 | 83,71 | 8240020979 |
| 850 | MS | 2mm | 1000 | 41,89 | 8240020978 |
| 850 | MS | 2mm | 500 | 20,76 | 8240020977 |
| 900 | MS | 2mm | 2000 | 88,65 | 8240020982 |
| 900 | MS | 2mm | 1000 | 44,35 | 8240020981 |
| 900 | MS | 2mm | 500 | 21,99 | 8240020980 |
| 950 | MS | 2mm | 2000 | 93,58 | 8240020985 |
| 950 | MS | 2mm | 1000 | 46,82 | 8240020984 |
| 950 | MS | 2mm | 500 | 23,21 | 8240020983 |
| 1000 | MS | 2mm | 1000 | 49,29 | 8240020987 |
| 1000 | MS | 2mm | 2000 | 98,52 | 8240020988 |
| 1000 | MS | 2mm | 500 | 24,43 | 8240020986 |
