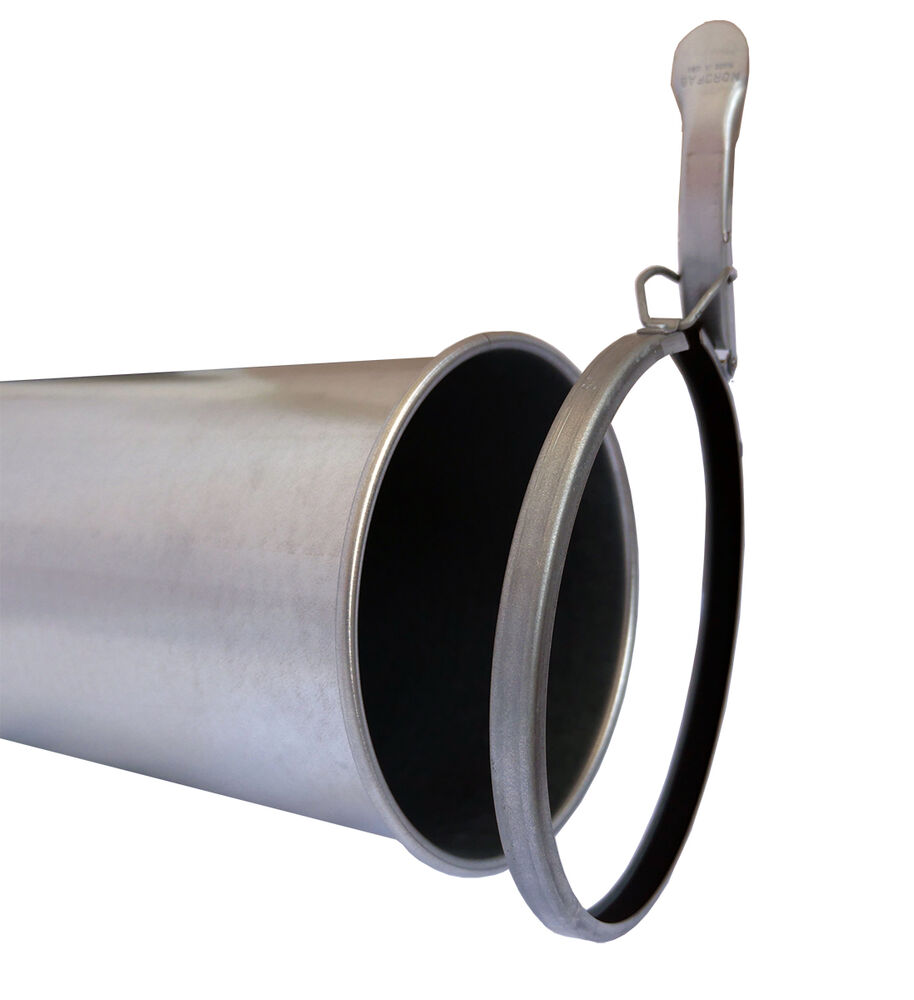

Nordfab has added 2-meter fully laser welded lengths of duct to our existing product range. The 2-meter length is available with diameters ranging between 80-400 mm, thicknesses ranging from 0,6-2,0 mm, and will be available in galvanized steel, stainless steel, black steel, and aluminum. The solid welds on Nordfab’s welded (W) Quick-Fit duct pipe (Ø 80 mm – 400 mm) prevent leakage, saving energy costs. Diameters above 400 mm are manufactured with a lockformed seam.
Nordfab Quick-Fit ducting saves time and reduces costs during installation into process ventilation / dust collection systems. The 2-meter duct provides a more efficient way to plan ducting, using less pieces and less joins. In other words, the world’s fastest ducting just became even faster!
The Quick-Fit rolled edges allow quick and easy connections with the Quick-Fit Clip when installing, extending, or taking apart runs of ducting. Quick-Fit duct can easily be reused after cleaning or when relocating machinery during shop floor changes.
How to install Quick-Fit ducting
Watch an interview with Peter Åberg, Managing Director Nordfab Europe, as he discusses our new 2-meter ducting.
Learn all the benefits using Quick-Fit ducting
Download the technical data sheetø A (mm) | Material | T mm | L mm | Weight(kg) | Item No. |
---|---|---|---|---|---|
80 | Galv | 0,7mm | 2000 | 2.8 | 8240020381 |
100 | Galv | 0,7mm | 2000 | 3.5 | 8240020384 |
125 | Galv | 0,7mm | 2000 | 4.3 | 8240020387 |
140 | Galv | 0,7mm | 2000 | 4.8 | 8240020390 |
150 | Galv | 0,7mm | 2000 | 5.2 | 8240020393 |
160 | Galv | 0,7mm | 2000 | 5.5 | 8240020396 |
180 | Galv | 0,7mm | 2000 | 6.2 | 8240020399 |
200 | Galv | 0,7mm | 2000 | 6.9 | 8240020402 |
224 | Galv | 0,7mm | 2000 | 7.7 | 8240020405 |
250 | Galv | 0,7mm | 2000 | 8.6 | 8240020408 |
300 | Galv | 0,7mm | 2000 | 10.4 | 8240020411 |
315 | Galv | 0,7mm | 2000 | 10.9 | 8240020414 |
350 | Galv | 0,7mm | 2000 | 12.1 | 8240020417 |
400 | Galv | 0,9mm | 2000 | 17.7 | 8240020420 |
450 | Galv | 0,9mm | 2000 | 20 | 8240020423 |
500 | Galv | 0,9mm | 2000 | 22.2 | 8240020426 |
560 | Galv | 0,9mm | 2000 | 24.8 | 8240020429 |
630 | Galv | 0,9mm | 2000 | 28 | 8240020432 |
710 | Galv | 0,9mm | 2000 | 31.5 | 8240020435 |
80 | 304SS | 0,7mm | 2000 | 2.8 | 8240020721 |
100 | 304SS | 0,7mm | 2000 | 3.5 | 8240020724 |
125 | 304SS | 0,7mm | 2000 | 4.3 | 8240020727 |
140 | 304SS | 0,7mm | 2000 | 4.8 | 8240020730 |
150 | 304SS | 0,7mm | 2000 | 5.2 | 8240020733 |
160 | 304SS | 0,7mm | 2000 | 5.5 | 8240020736 |
180 | 304SS | 0,7mm | 2000 | 6.2 | 8240020739 |
200 | 304SS | 0,7mm | 2000 | 6.9 | 8240020742 |
224 | 304SS | 0,7mm | 2000 | 7.7 | 8240020745 |
250 | 304SS | 0,7mm | 2000 | 8.6 | 8240020748 |
300 | 304SS | 0,7mm | 2000 | 10.4 | 8240020751 |
315 | 304SS | 0,7mm | 2000 | 10.9 | 8240020754 |
350 | 304SS | 0,7mm | 2000 | 12.1 | 8240020757 |
400 | 304SS | 0,7mm | 2000 | 13.8 | 8240020760 |
450 | 304SS | 0,7mm | 2000 | 15.5 | 8240020763 |
500 | 304SS | 0,7mm | 2000 | 17.3 | 8240020766 |
560 | 304SS | 0,7mm | 2000 | 19.3 | 8240020769 |
630 | 304SS | 0,7mm | 2000 | 21.7 | 8240020772 |
710 | 304SS | 0,7mm | 2000 | 24.5 | 8240020775 |
