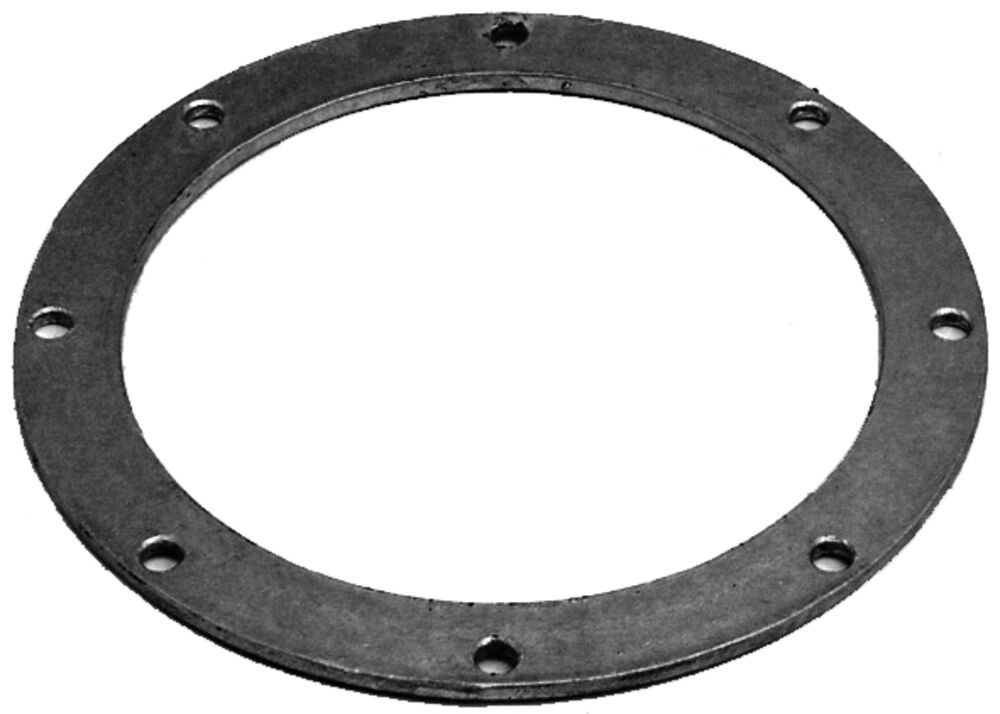

Nordfab flange with pre-drilled FLI hole pattern.

Nordfab offers FLI flanges with pre-drilled FLI hole pattern to be used in a ducting system for fume extraction, dust collection, or process ventilation applications.

 - Galvanised steel construction; also available in mild steel and 304SS construction
 - Available in sizes Ø 80 mm - 1250mm, with 3 to 6 mm steel thickness
 - Features between 8 and 28 mounting holes
