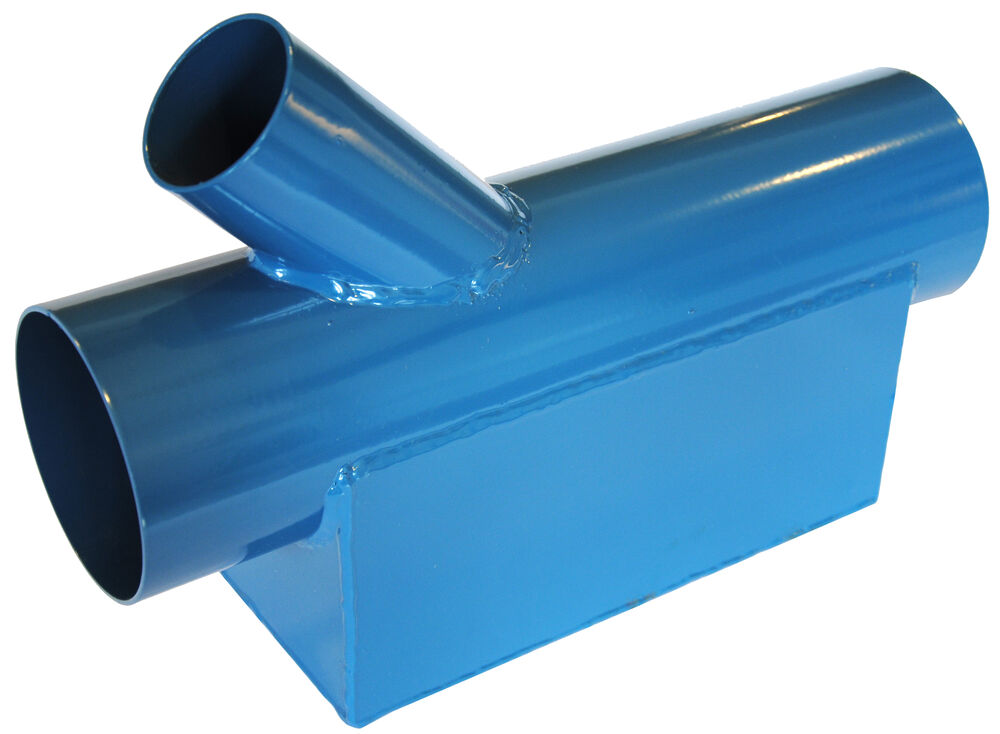

Branch pipes with swarf box. 45° branch.

The term ‘high vacuum’ refers to the high vacuum and low airflow used to catch, transport and filter fumes, dust and other particles.

Our solutions include:
• Extraction of fumes from welding torches
• Extraction of grinding dust directly from the handheld grinding machine thanks to our range of manifolds that matches most hand-held machines on the market
• Cleaning of floors and machines etc. with our wide choice of accessories
• Transport of large volumes of material which may be both heavy and abrasive

ORDER EXAMPLE:
Branch Reinforced HV MS 2mm 102RO 102RO 63RO 45Deg RAL 5009

Resources:

HV Reinforced Branch
ø A (mm) ø B (mm) ø C (mm) Material Thickness Length Weight (kg) Legacy Art. Nr. Art. No.
63 63 63 MS 2mm 0,50 40134101 40134101
102 102 63 MS 2mm 4,00 40134121 40134121
102 102 102 MS 2mm 5,11 40134131 40134131
