Dérivation FB

Dérivation FB
Dérivation FB

Galv 0,7 - 0,9 mm 30° 45° 90° FB Également disponible avec bride EXEMPLE DE COMMANDE : Dérivation STD galv 0,7 mm 180FB 80FB 80FB 30 Deg EXEMPLE DE COMMANDE : Dérivation STD galv 0,7 mm 180FLI 80FLI 80LI 30 Deg

Nous contacter
Product Details
Products
Documents (0)
Models (1)
Video (0)

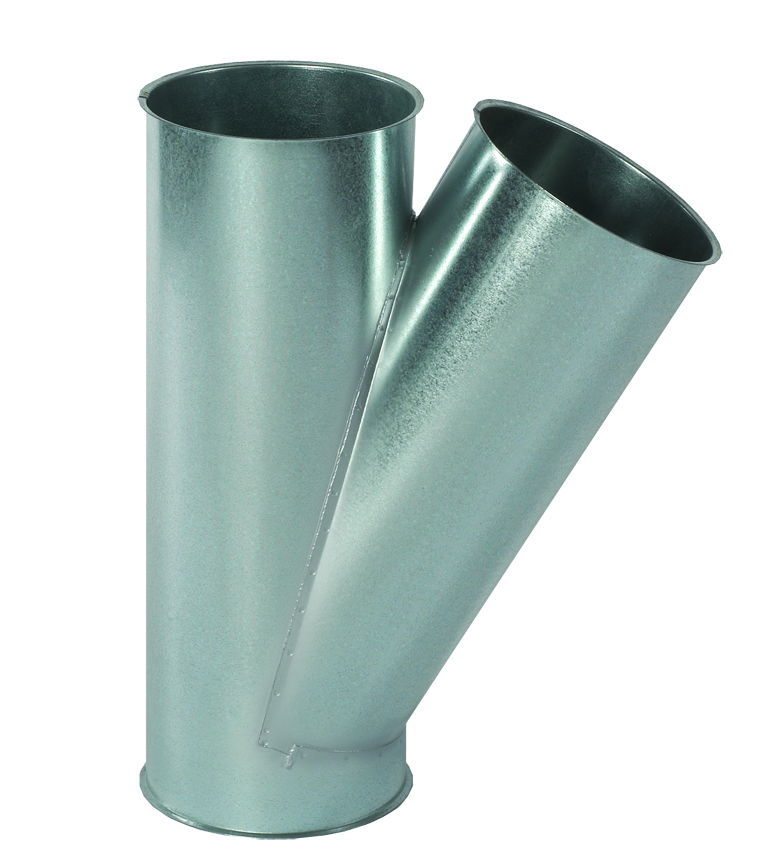

FB Standard Branches are used to port to machine outlets or other duct lines. Standard Branches are 30°, optional 45° available upon request. The standard branch is easily connected to other duct components using FB Clips, which can be secured around the flat edge on each end. Available in galvanised steel construction, ranging from 80 mm to 800 mm in diameter.

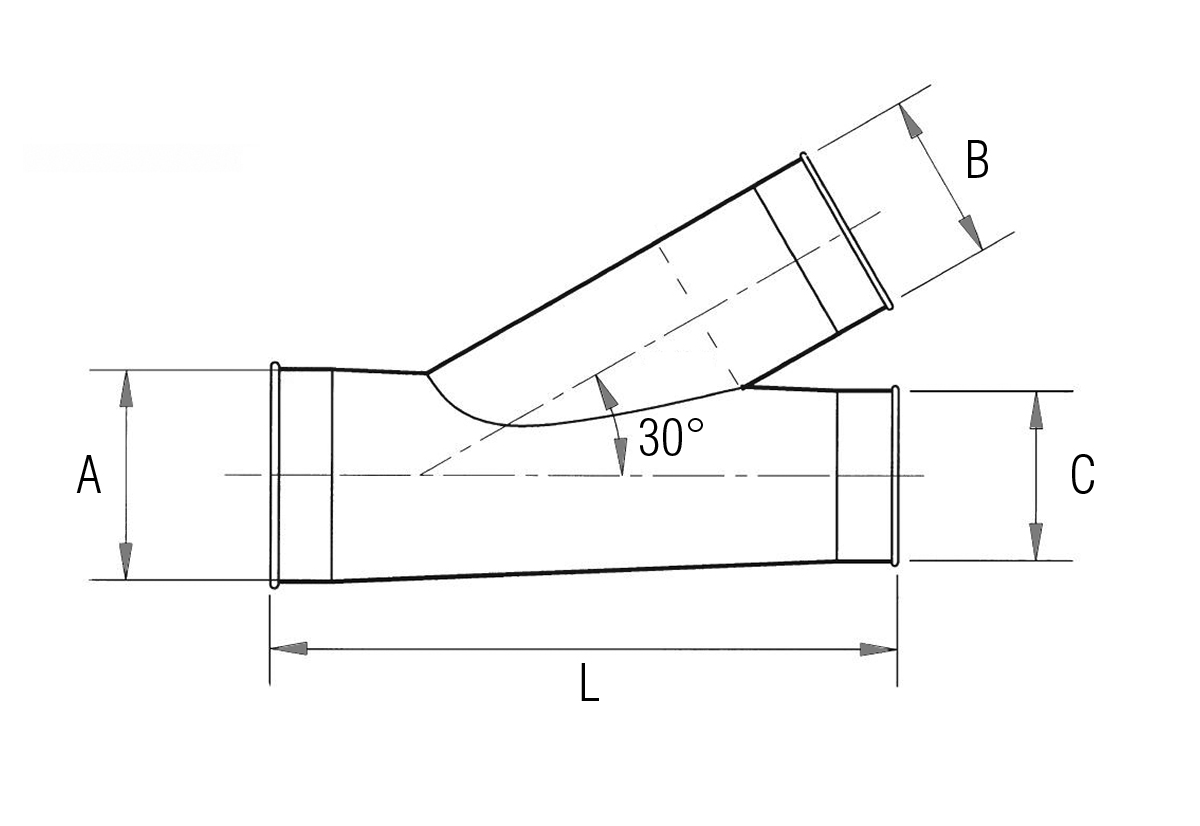

When ordering, please specify ØA,ØB, ØC.

ØC must be smaller than or equal to ØA.
ØB must be smaller than or equal to ØC.
Use formulas above to determine if a reducer is needed at ØC.

The FB Duct System is used in dust collection, process ventilation, and fume extraction systems in a wide variety of industries. Nordfab FB Ducting features a flat edge on the connecting ends.
