A large recycling centre in Sydney, contacted Nordfab Australia as they were in need of a fume extraction system for when they painted 44 gallon reconditioned drums, for the company.

Installation

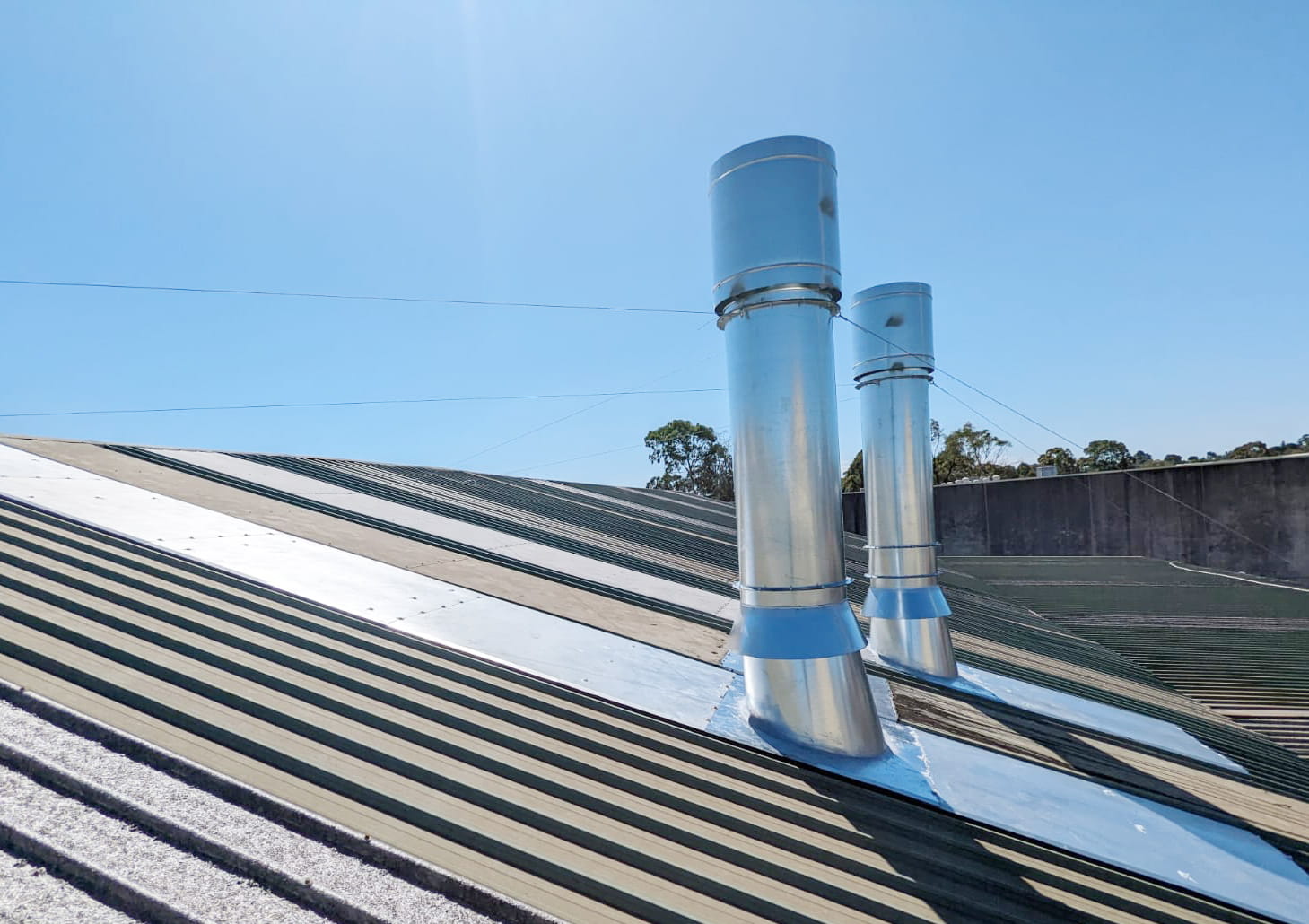

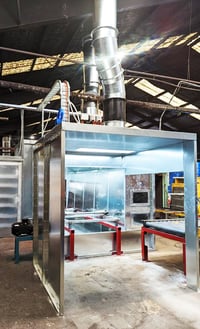

A fume extraction system, designed, manufactured and installed by Nordfab Australia consisting of a wet spray booth (pump style) fitted with a water tank under the entire product line, extension panels through the back wall, access doors, 2 x 3 kW fans, a control panel to AS41114, 4 x Exe lights, pressure switches and a compressed solenoid panel. The ducting system was made up of galvanised sheet metal, including all the roof flashings and brackets.
