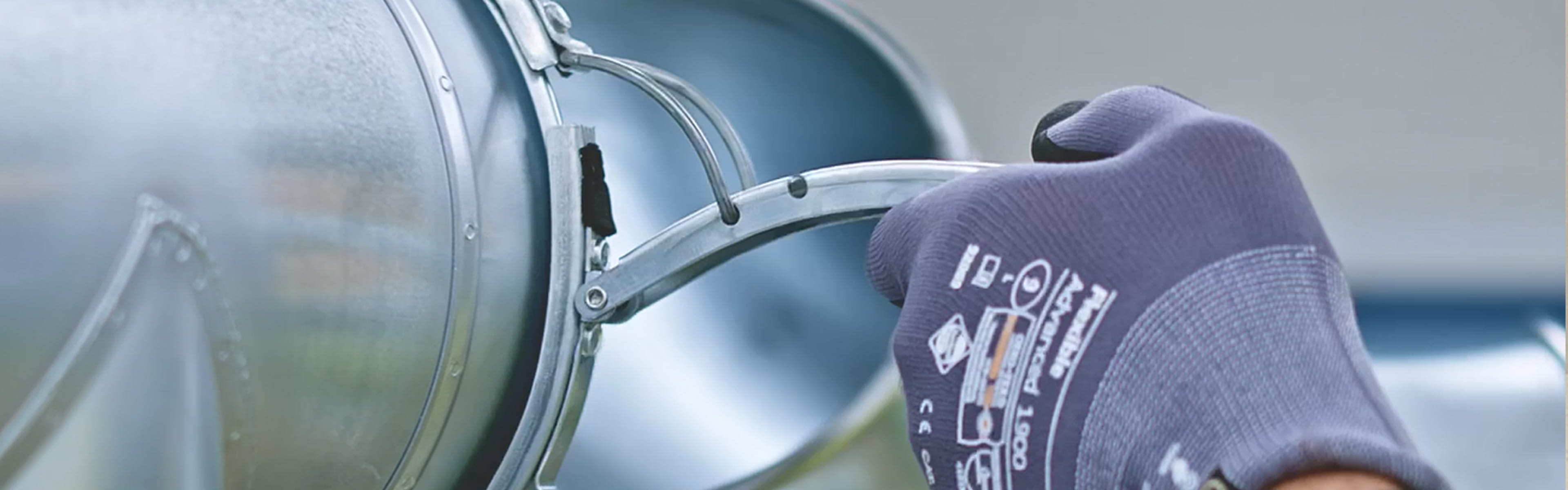

Duct Installation

How To Install Quick-Fit Ducting

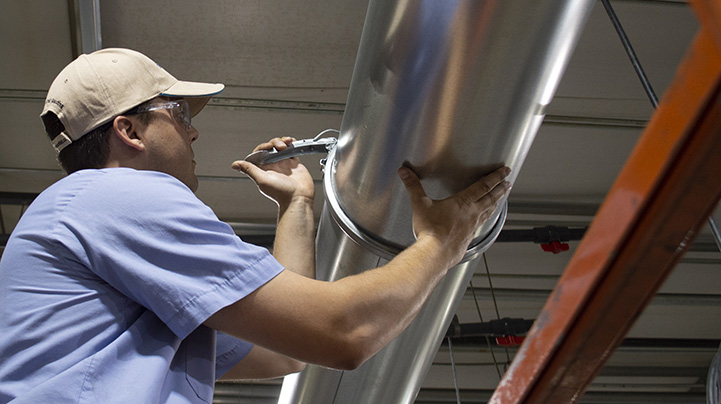

Man installing Nordfab Quick-Fit clamp together ducting

To ensure that Nordfab Quick-Fit (QF) continues to be the “World’s Fastest Ducting,” we want to provide you with a few tips to help your installation go quickly, smoothly and safely.


Important Safety Information:
Always use proper safety equipment when installing Quick-Fit:
  • Work Gloves: Sheet metal can be sharp and burs are possible.
  • Eye & Ear Protection: for use whenever cutting pipe.
  • Safety Helmet: to avoid injury from falling parts or tools.
  • Cutting Device: There are several options for cutting galvanized or steel ducting. Whether you use a hacksaw, sawzall, nibbler or other method, it is important that the cut is clean and that the duct is not crushed into an oval shape during cutting. Follow all manufacturer safety guidelines for your cutting tool.
  • File: This ensures that any cuts you make for the Quick-Fit Sleeve sections are clean.
  • Scaffolding and proper safety equipment for working off the ground.
  • Level: Most duct runs should be level. But NOTE that on some applications such as cement or oil mists, it is preferable for the runs to be angled so that any material that falls out of the airstream will drain out of the duct.
  • Plumb: It is advisable that all vertical runs be plumb.

STEP ONE: Make Sure Your Shipment is Complete and Undamaged.

Nordfab ships most orders FOB Nordfab or “Free On Board.” This means that it is your responsibility to ensure that the materials you receive do not have freight damage and that the carrier has delivered all the boxes in your shipment.

Inspect all boxes for outward damage BEFORE signing for receipt. The boxes should be strapped to a pallet, and not be crushed, torn or otherwise damaged. If you find damage, either refuse the shipment or note the issue on the receipt you sign. Unless you do this, any future claims will be virtually impossible to collect.



Additionally, before signing for your shipment, ensure that all boxes are accounted for. You can find the number of boxes in a shipment by checking the delivery receipt the driver will ask you to sign. Again, note any discrepancies before signing. Important safety note: Beware of the sharp metal staples used to seal the shipping boxes.

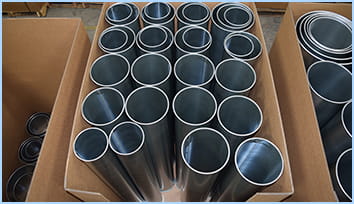

boxes containing Quick-Fit Ducting

STEP TWO: Review the Packing Documents.

Nordfab packs boxes with the goal of reducing shipping costs, not in the order the parts are needed. Do not simply tear into the boxes and begin removing parts. Contents labels on the box exteriors provide details as to what is in each box. Avoid opening boxes until you need them to reduce the chance of parts being lost or damaged on site.


STEP THREE: Prepare to Install Your Ducting.

It is important for the installer to understand the layout the system designer planned for the ducting. Follow all local codes and regulations and note loading capabilities of structures to ensure the ducting is properly supported and that the building can carry the ducting system.

If your installer doesn’t understand the layout, he likely will not have all the parts necessary to complete the job. If you or your installer do not have a clear understanding or drawing of the system you are about to install, please call the person who designed the system before you begin work.

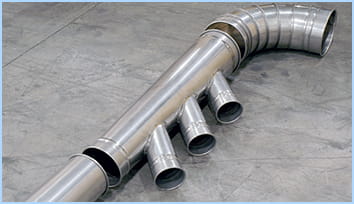

laying out QF Ducting on floorSTEP FOUR: Laying Out the Ductwork.

Begin by laying the system out on the floor below where it will hang. Remember that two parts that connect will often not be in the same box, so this step dramatically reduces the time it takes to complete the job once the installation begins.

NOTE: This is a step where you could possibly find that you do not have all the parts necessary to complete the job. In that case, contact your dealer immediately so that he or she can get the needed parts to you as well as help you verify that your layout matches the one planned by the system designer.


assembling Nordfab Quick-Fit Sleeve (Slip Duct) with cut to size DuctSTEP FIVE: The Quick-Fit Slip Duct.

  1. Measure the distance you want to span.
  2. Cut the duct (NOT the Quick-Fit Slip Duct) approximately 100 mm shorter than the length necessary to complete the span. Make sure the cut is free of burs and that it maintains its round shape.
  3. Slide the cut end of the QF Duct into the Quick-Fit Slip Duct. Clamp one end of the assembly into place. Be sure that the Quick-Fit Slip Duct is downstream (closest to the dust collector) of the cut piece.
  4. Slide the QF Duct into the Quick-Fit Slip Duct to the desired length.
  5. Slide the O-ring across the rolled edge of the Quick-Fit Sleeve so that it is around the cut piece of QF Duct. Roll it until it is seated against the rolled edge of the Quick-Fit Slip Duct. The O-ring will form a seal and provide a rolled surface for the QF Clamp to grab when clamped.
  6. Use a standard QF Clamp to connect the rolled edge of the Quick-Fit Slip Duct and the O-ring together.

Once in place, you can re-adjust the length of the assembly by releasing the QF Clamp and changing the length of the duct that is inserted into the Quick-Fit Slip Duct.

IMPORTANT SAFETY NOTE: To ensure a strong, safe and stable system, there must always be at least 10 cm of duct inserted into the Quick-Fit Slip Duct.

Watch the video below for more information on installing a Quick-Fit Slip Duct.


STEP SIX: Supporting Your Ductwork.

It is your responsibility to ensure the safety of all ducting. Please check with local agencies to ensure that your ducting is supported in a way that meets local codes. When determining the weight your ceiling and hangers must support, always allow for the ducting being 100 percent clogged with whatever material is being conveyed.


STEP SEVEN: Pre-Stretch Your Clamps.

Nordfab Quick-Fit (QF) Clamps are designed to provide a tight seal, which means that they also require some pressure to close. By pre-stretching the clamp around the rolled edge of a single piece of duct, you can make it much easier to close when you connect two pieces together.


STEP EIGHT: Connect As Many Parts As Possible on the Ground.

It is much faster and easier to close the Quick-Fit (QF) Clamps on stable ground than on a scaffold. Therefore many installers connect two or three pieces of ductwork together on the floor before lifting them into place.



IMPORTANT SAFETY NOTE: The ducting must be properly supported.

It is unsafe to have several segments cantilevered without support. Each additional piece of duct puts enormous amounts of pressure on the clamps and hangers which could result in catastrophic clamp or hanger failure.

cotter pin inserted on Nordfab QF ClampSTEP NINE: Install the Cotter Pins.

After closing each Clamp, install one of the enclosed cotter pins into the hole as shown. This ensures that the clamp cannot come open unexpectedly. Install the cotter pin as soon as a clamp is closed and beware of clamps until the cotter pin is safely installed.



IMPORTANT SAFETY NOTE: On very rare occasions, unpinned clamps can spring open unexpectedly which can cause the ductwork to drop. Additionally, the handles on unpinned clamps have been known to cause injury when they sprung open.
