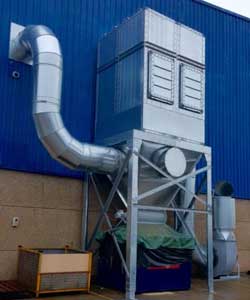

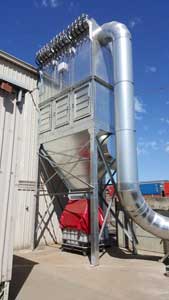

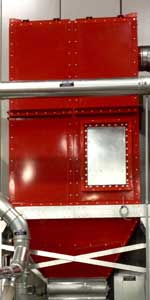

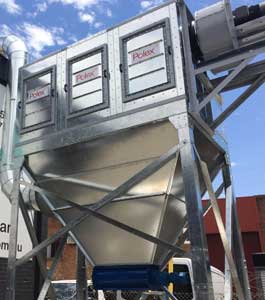

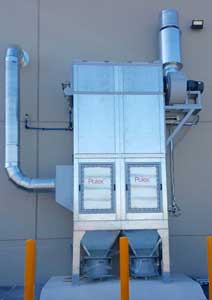

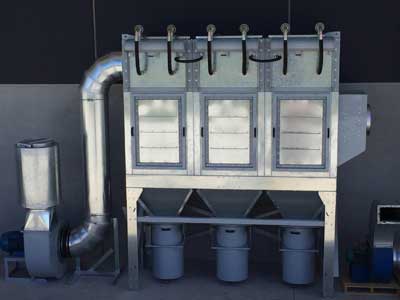

MDC Dust Collector



Nordfab is very proud to supply and manufacture the MDC range of Dust Collectors, which are designed to meet Australia’s strict OHS and clean air / environmental regulations.

All the MDC range (modular dust collector) are fitted with top quality filter bag medium or filter cartridges, that are automatically cleaned with either a vibration (shaker) system or a compressed air reverse pulse system. This ensures that the dust collector units are operating at maximum efficiency saving energy.

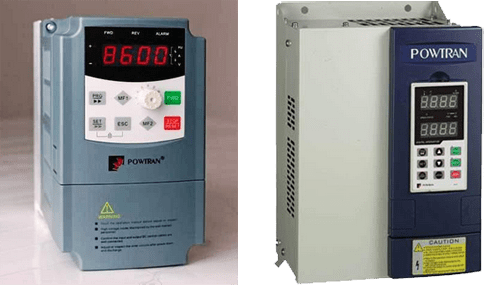

The automatic cleaning systems are controlled by a PLC fitted into a control panel supplied with the unit. A VSD, or variable speed drive (optional), can also be fitted into the control panel supplied with the dust collector unit.

The VSD will save considerable energy costs. It is controlled by a pressure transducer fitted in the systems ducting that signals the VSD to automatically lower the power consumption of the fan when machines connected to the dust collection system are shut off. This helps ensure MDC dust collection units are very energy efficient.

The MDC dust collectors are fitted with Rotary Valves (air lock valves) that enable customers to empty or change the units waste bin or bins without turning the unit off and shutting the dust collection system down. This enables the factory to continue running saving you labour and downtime costs.









The MDC are available in 3 basic types of units with models to cover all applications:

1. MDC S are dust collectors with filter bags automatically cleaned by vibration / shaker system whenever the unit is turned off.
2. MDC P are dust collectors with filter bags automatically cleaned continuously by compressed air / reserve pulse system.
3. MDC PC are dust collectors with filter cartridges automatically cleaned continuously by compressed air / reserve pulse system.

The MDC dust collectors capacity range is huge with models from 4,000 m³/h to 250,000 m³/h. Other options also include:

• Stainless steel models
• Custom painted models
• Explosion proof models for hazardous areas



Other great MDC features include:

• Heavy duty steel construction made from corrosion resistant galvanized steel.
• High efficiency fan 40% - 50% more suction for same energy usage.
• All MDC dust collection units work under negative pressure so no waste passes through the fan ie: wood chips & blocks or other solid items may cause damage to fans impeller.
• The modular design of the MDC Dust Collector enables additional modules can be added to increase the dust collectors filter area capacity.
