Système de conduits étanches Nordfab (QFS)

Nordfab offers QFS™ Sealed Duct to protect against leakage in ducting used in ventilation systems where oil mist and smoke are contaminants. QFS is a simple system for sealing standard Quick-Fit® ductwork. Learn more

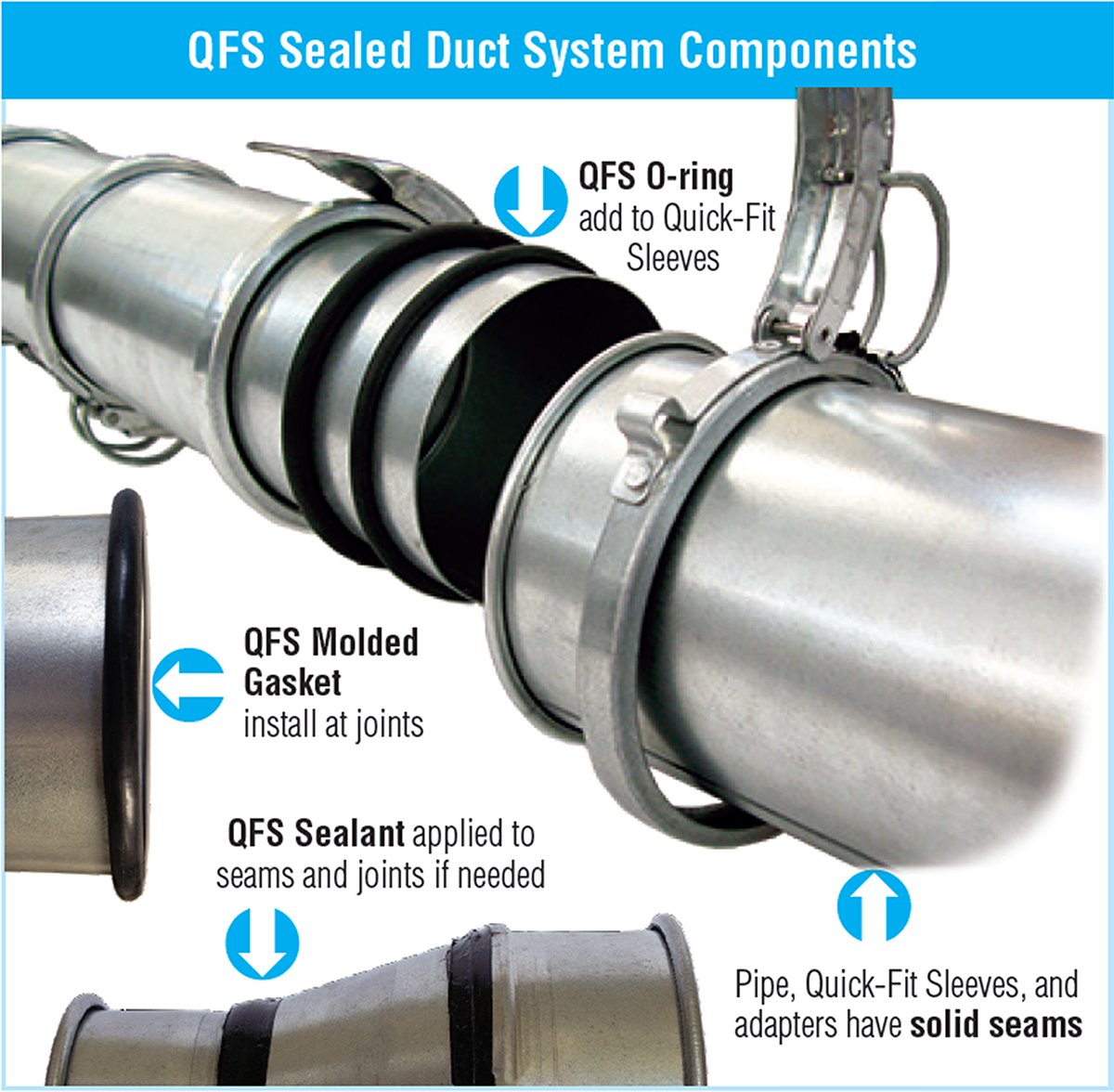

The three key components of the Nordfab® QFS system are:

1) Leak-resistant seams on the ductwork:

  • Laser welded pipe

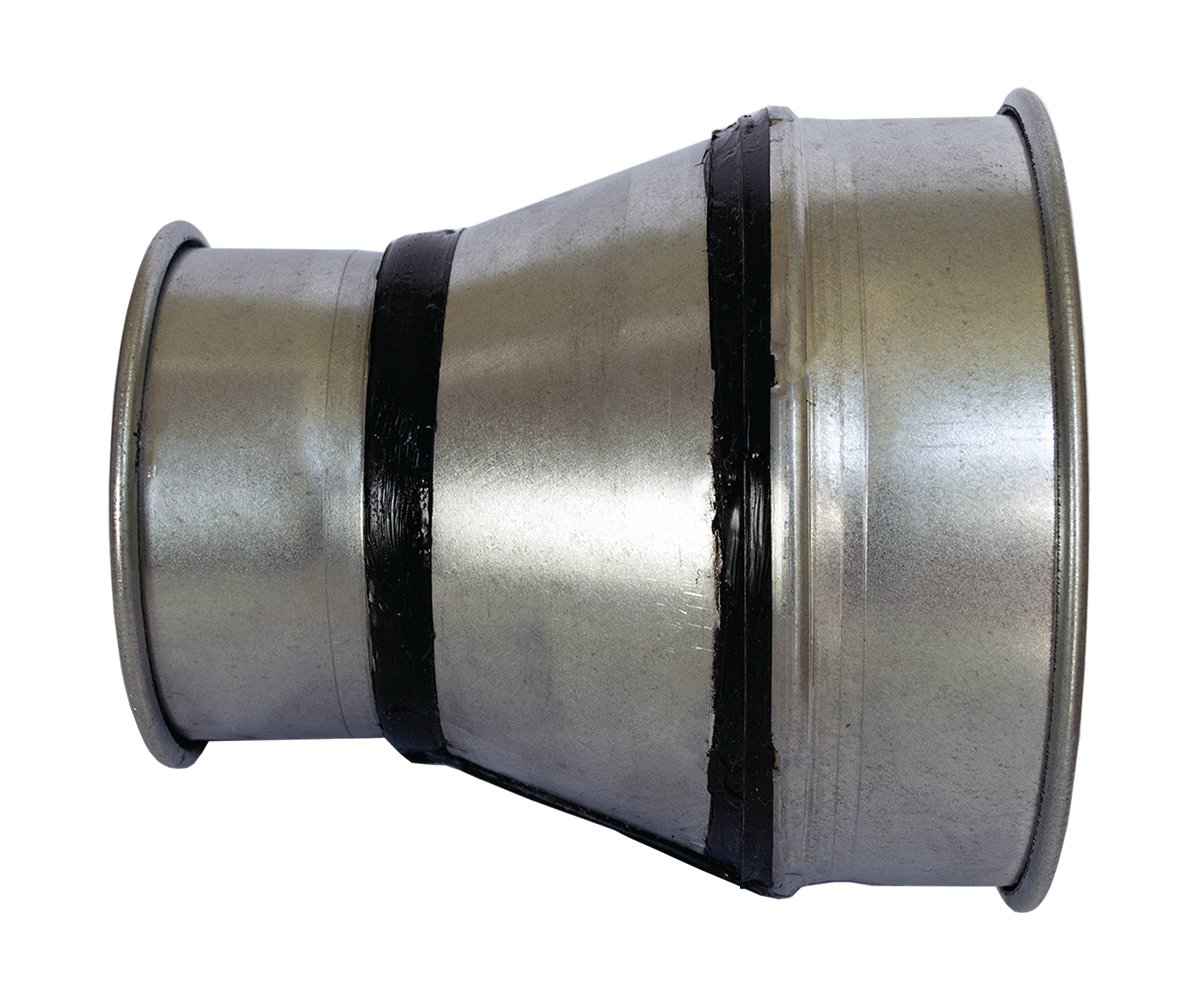

  • Caulked seams / joints on other components as needed. Nordfab has recently switched to a new more durable, marine grade sealant offering improved UV exposure performance.

2) QFS Gaskets applied to the duct ends at the joints. Nordfab has re-designed the QFS Gasket so it is easier to install and does not require adhesives. Other benefits include a non-directional design, fewer sizes needed, and the same conductive material.

3) The QFS O-ring for the Quick-Fit® Sleeve which is used where variable lengths are needed

Oil Mist Recyclers and Drain Backs for Hose are additional QFS components which can be installed where needed.

*Due to variables beyond our control, Nordfab Ducting cannot guarantee a leak proof system in all installations, even when using caulk & “leak free” gaskets. Some of the variables that impact this include: the craftsmanship of the duct installation, the chemicals within the duct, and the expertise of the designer.

Request a Quote



Download our Sealed Duct System Product Data sheet

Download our QFS Sealed Duct System brochure

Download our Oil Mist System Instruction sheet (see the General Information section)

View our Oil Mist System Components page for additional information
