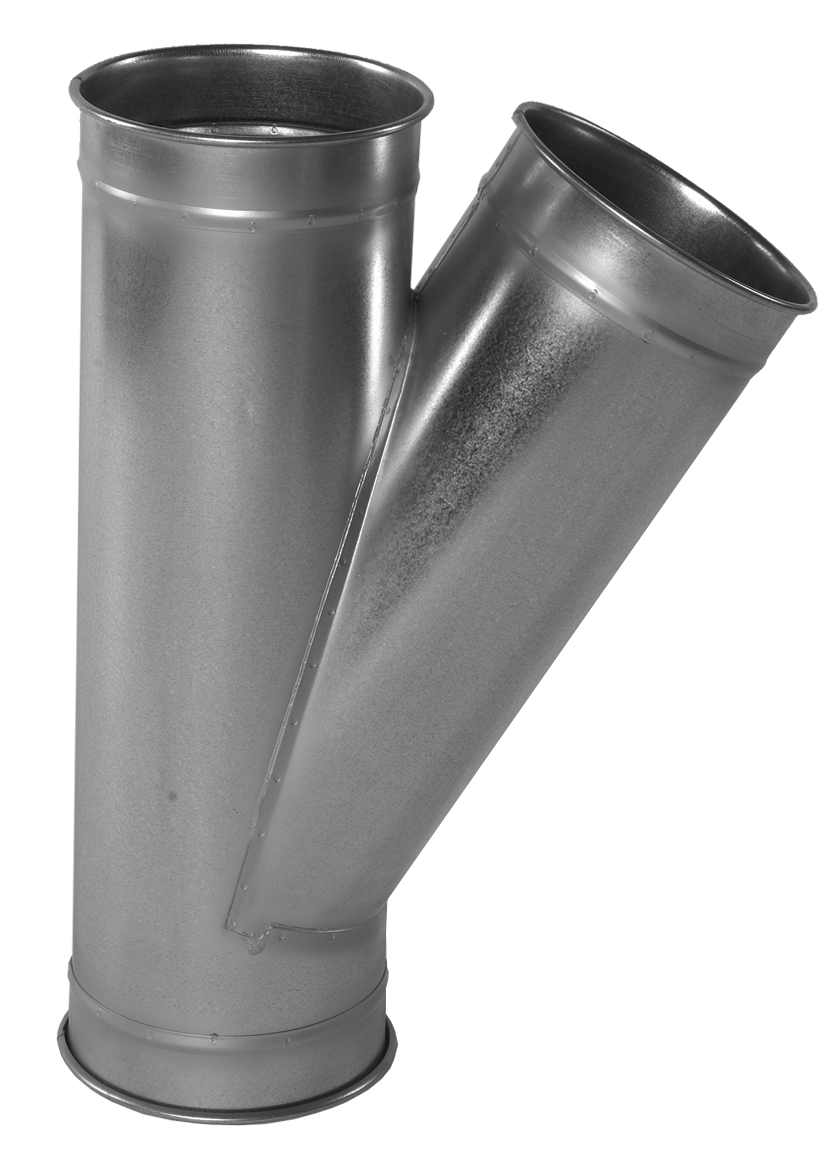

Quick-Fit (QF) Standard Branch 30°
Quick-Fit (QF) Standard Branch 30°
Quick-Fit (QF) clamp-together duct 30° Branch, Ø80-710 mm, galvanised steel or 304SS construction.
Connects branch lines into main duct runs - ideal for dust, fume, and process ventilation systems
Quick and easy to install thanks to rolled edges and a leak-tight clamping system
Reusable and easy to relocate - a cost-effective, sustainable choice for evolving production needs
Manufactured to ISO 9001 quality and ISO 14001 environmental management standards
Engineered to comply with SMACNA G90 gauge and Class 3 pressure standards for reliable performance
Quick-Fit (QF) Standard Branches are used to port to machine outlets or other duct lines. Standard Branches are 30°, optional 45° available upon request. Available in galvanised steel or 304SS construction.

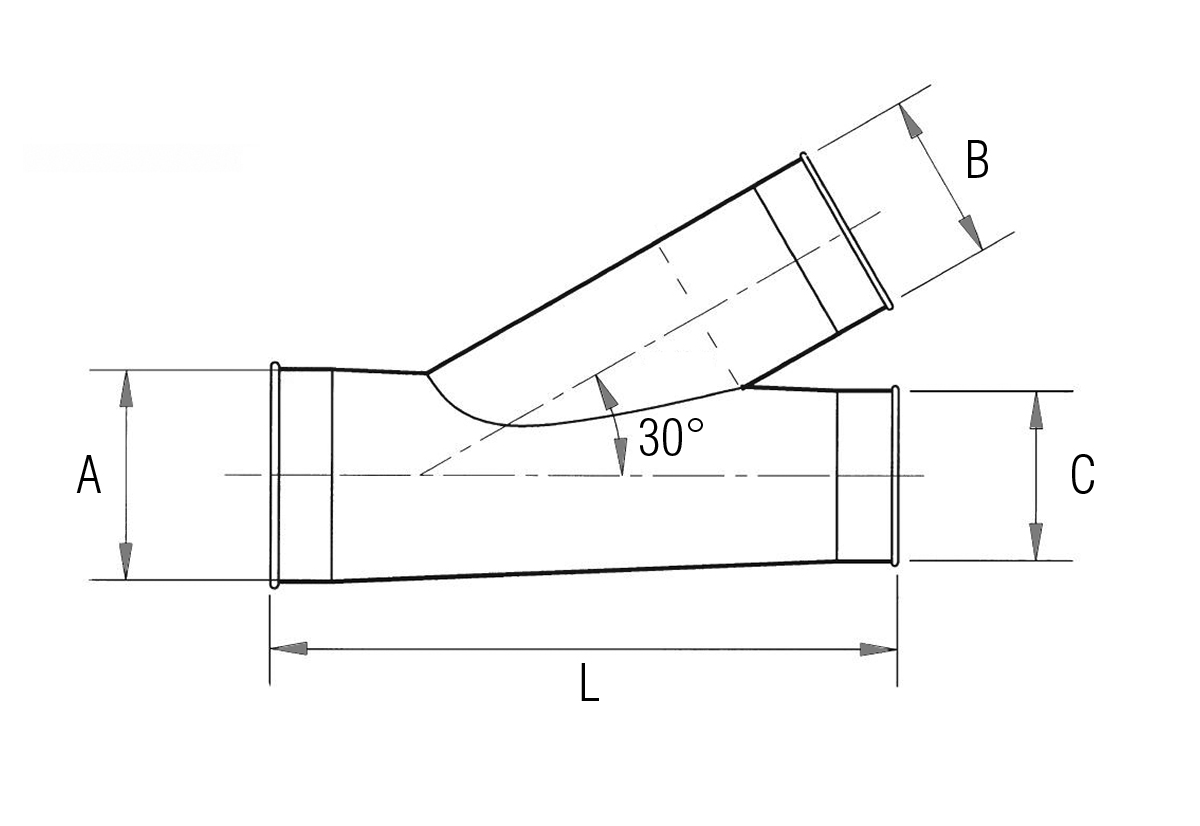

When ordering, please specify ØA,ØB, ØC.
L = (ØBx2) + 206
ØC must be smaller than or equal to ØA.
ØB must be smaller than or equal to ØC.
Use formulas above to determine if a reducer is needed at ØC.
The world's fastest ducting
For most dust and fume collection requirements and applications, Nordfab Quick-Fit (QF) modular clamp-together ducting is a crucial component of dust collection, fume extraction, and process ventilation systems. It has the capability to significantly reduce installation time by up to 50%, resulting in cost savings and reduced downtime.
Easy to install
Quick-Fit is easy and quick to install, designed for effortless cleaning, and can be reused when adjusting facility layouts, providing one of the lowest life-cycle costs of any ducting product. The Quick-Fit rolled edges allow quick and easy connections with the Quick-Fit Clip when installing, extending, or taking apart runs of duct.
