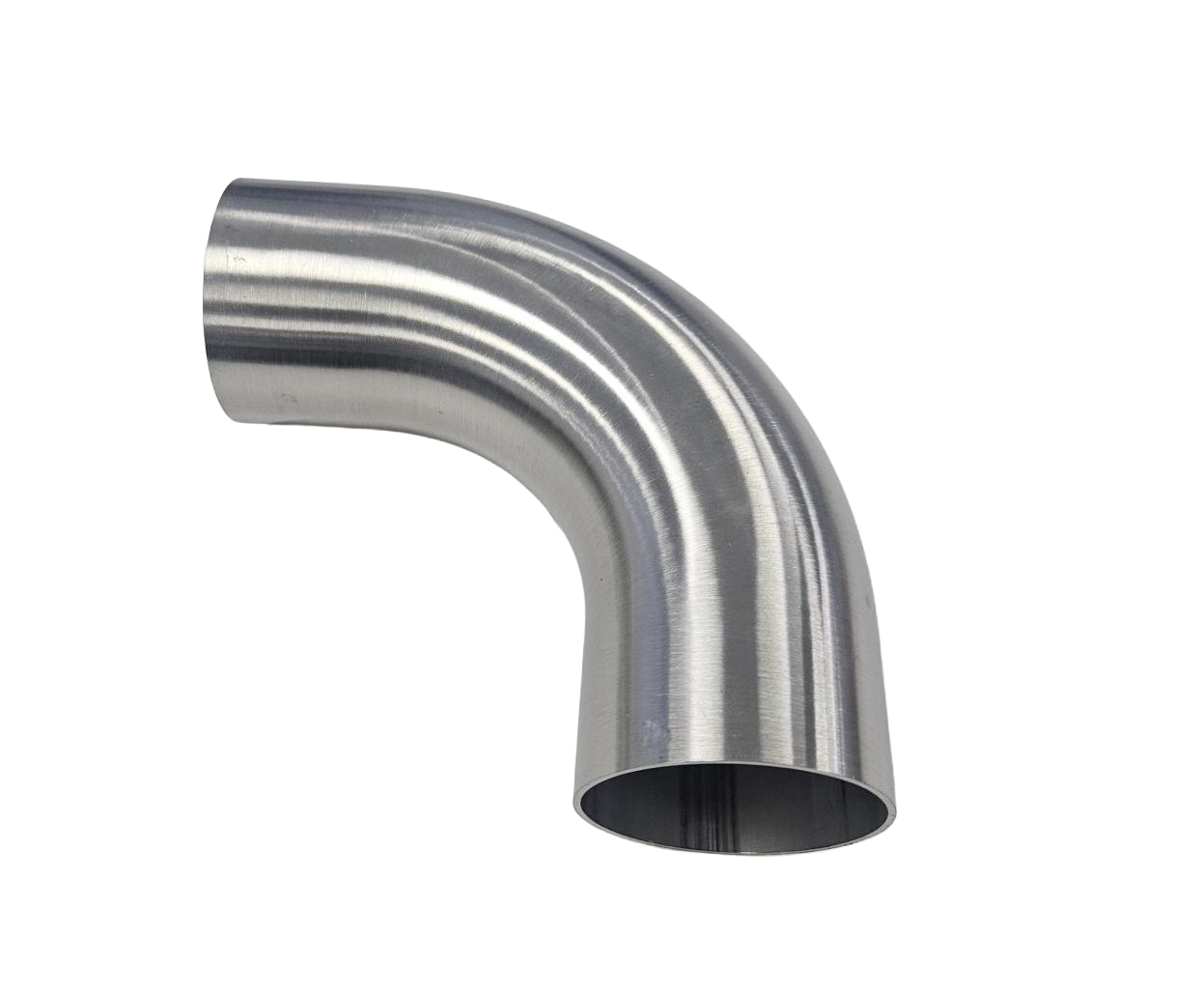

HygiDuct Bend 90 degree

Fully laser-welded HygiDuct Bend 90 degree is purpose-built for demanding conditions of various manufacturing environments, such as food-waste. Engineered to handle the challenges of organic dust, heavy contamination loads, and frequent high-pressure washdown. Standard sizes available in Ø76 - 400 mm (other sizes available upon request), 304SS or 316SS construction. Diameter sizes up to 152 mm are pressed bends, whereas diameter sizes 152 and above are segmented bends.

Nordfab HygiDuct Bends allow airflow direction change in a run of a duct.

Nordfab HygiDuct delivers exceptional hygiene and durability. Its ultra-smooth, crevice-free interior prevents material build-up and significantly reduces the risk of contamination, microbial growth, and unwanted odours - helping facilities maintain cleaner, safer, and more compliant operations. The Nordfab HygiDuct Bends are engineered for durability and performance, featuring robust standard 1.2 mm wall thickness (1.6 mm for pressed bends) and raw ends for seamless integration, secured with high-vacuum, food-grade clamps that ensure a tight hygienic seal.

Nordfab HygiDuct is not suitable for applications where food ingredients for processing are directly in contact with the ducting.

ø A (mm) Material T mm L mm Weight(kg) Item No.
76 304SS 1.6mm 9910003901‍
102 304SS 1.6mm 9910003902‍
127 304SS 1.6mm 9910003903‍
152 304SS 1.2mm 9910003904‍
203 304SS 1.2mm 9910003905‍
224 304SS 1.2mm 9910003906‍
250 304SS 1.2mm 9910003907‍
300 304SS 1.2mm 9910003908‍
315 304SS 1.2mm 9910003909‍
350 304SS 1.2mm 9910003910‍
400 304SS 1.2mm 9910003911‍
