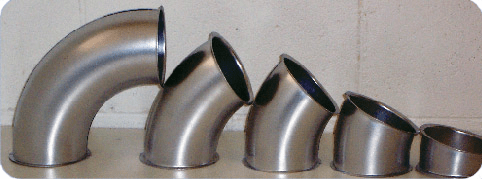

Nordfab manufactures a large and varied range of bends in galvanized, mild and stainless steels. We carry ex-stock galvanized bends in angles of 90°, 60°, 45°, 30°, 15°, and 7.5°. To provide the best airflow, Nordfab standard bends are 1.5 x D1A. C.L.R of smooth pressed construction from 80 mm to 300 mm diameter. From 350 mm to 450 mm are 7 section lobster back construction of 1.5D C.L.R.
Nordfab can manufacture bends in any radius required upon request.
| Diameter | 90° | 60° | 45° | 30° | 15° | 7,5° | |
| 80 | Y | Y | Y | Y | Y | Y |
E T O C K |
| 100 | Y | Y | Y | Y | Y | Y | |
| 120 | Available upon request | ||||||
| 125 | Y | Y | Y | Y | Y | Y | |
| 140 | Y | Y | Y | Y | Y | Y | |
| 150 | Y | Y | Y | Y | Y | Y | |
| 160 | Y | Y | Y | Y | Y | Y | |
| 180 | Y | Y | Y | Y | Y | Y | |
| 200 | Y | Y | Y | Y | Y | Y | |
| 220 | Available upon request | ||||||
| 225 | Y | Y | Y | Y | Y | Y | |
| 250 | Y | Y | Y | Y | Y | Y | |
| 275 | Y | Y | Y | Y | Y | Y | |
| 300 | Y | Y | Y | Y | Y | Y | |
| 350 | Y | Y | Y | Y | Y | Y | |
| 400 | Y | Y | Y | Y | Y | Y | |
| 450 & Above | Available upon request | ||||||
